Hart plenum & LHD ABS

Old 26-06-2019, 02:05 PM
  #1
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default Hart plenum & LHD ABS

Hello guys !

First thread from me !

I'm trying to set a hart plenum on my 2WD LHD Sapphire.

I got a problem about the gap between the plenum and the ABS unit.







On LHD, we have a plate to fin. Behind the plate, we have the 6 ABS valves and about 100 bar of brake fluid pressure. I think the modification should be done properly.

The only thread giving a solution is this one:

https://passionford.com/forum/restor...00-hp-4x4.html




I would like to know if someone know people using to do such a plate.

Thank you !

Regards ! Romain
bob le routier is offline
Old 26-06-2019, 03:14 PM
  #2
Caddyshack
PassionFord Post Whore!!

Join Date: Mar 2013
Location: Guildford
Posts: 9,836
Received 835 Likes on 780 Posts
Default

Hi and welcome.
Do you need to remove the ABS unit to get the hart in there? If not surely you can add the nut to the thread and then add the plenum? (seems to simple so assume you cannot)

If not I think you need to remove the thread and have it drilled and tapped for a bolt to go in - surely that would give you the room.

OR I wonder if Mark Shead could tell us if it would have a dramatic negative affect to machine a dimple in to the inlet to allow clearance, maybe have a few mill skimmed off the flange face of the inlet where it meets the head as well?
Caddyshack is offline
Old 26-06-2019, 03:15 PM
  #3
Caddyshack
PassionFord Post Whore!!

Join Date: Mar 2013
Location: Guildford
Posts: 9,836
Received 835 Likes on 780 Posts
Default

You can probably move the whole pedal box a few mil as well but that would mean ovalling the holes and somehow re-sealing the bulkhead
Caddyshack is offline
Old 27-06-2019, 08:30 AM
  #4
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Caddyshack View Post
You can probably move the whole pedal box a few mil as well but that would mean ovalling the holes and somehow re-sealing the bulkhead
Why not, it may be an option.

Originally Posted by Caddyshack View Post
Hi and welcome.
Do you need to remove the ABS unit to get the hart in there? If not surely you can add the nut to the thread and then add the plenum? (seems to simple so assume you cannot)

If not I think you need to remove the thread and have it drilled and tapped for a bolt to go in - surely that would give you the room.

I tried by removing everything between the plenum and the cylinderhead including all the studs. I haven't removed the ABS unit. On the two first pics, the plenum is set, the only question is about the room to put all the studs in the cylinderhead threads.

If I am worried about the clearance it's about the engine movements. As you can see, I got about 2mm of clearance.


Originally Posted by Caddyshack View Post
OR I wonder if Mark Shead could tell us if it would have a dramatic negative affect to machine a dimple in to the inlet to allow clearance, maybe have a few mill skimmed off the flange face of the inlet where it meets the head as well?
I am afraid about fragilizing the plenum. For LHD, Oppliger made a plenum with a thin bottom:





Few pics of my car:




Last edited by bob le routier; 27-06-2019 at 09:14 AM.
bob le routier is offline
Old 27-06-2019, 09:14 AM
  #5
Caddyshack
PassionFord Post Whore!!

Join Date: Mar 2013
Location: Guildford
Posts: 9,836
Received 835 Likes on 780 Posts
Default

Yes, I can see that the engine movement could knock it and break something, you do not want to ruin either. I am sure a good fabricator could make one of those covers for you.

Moving the pedal box 5/10 mm might be the easiest and cheapest option and easily reversed.
Caddyshack is offline
Old 27-06-2019, 10:20 AM
  #6
nixon_2wd
Too many posts.. I need a life!!

Join Date: Aug 2009
Location: -
Posts: 511
Received 27 Likes on 23 Posts
Default

Alternatively you can get a RHD brake booster or one from LHD Escort Cosworth (harder to come by). They provide much more clearance as they dont have that big block on the side.
nixon_2wd is offline
Old 28-06-2019, 10:43 AM
  #7
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Caddyshack View Post
Yes, I can see that the engine movement could knock it and break something, you do not want to ruin either. I am sure a good fabricator could make one of those covers for you.
That's why a created this thread, to know if someone have the habit to mille this cover with the good blueprint.


Originally Posted by Caddyshack View Post
Moving the pedal box 5/10 mm might be the easiest and cheapest option and easily reversed.
Yes, I have to check the clearance on the other side and how the brake lines move.


Originally Posted by nixon_2wd View Post
Alternatively you can get a RHD brake booster or one from LHD Escort Cosworth (harder to come by). They provide much more clearance as they dont have that big block on the side.

Good idea ! I will try to find pics about ABS bloc from LHD escort and 4x4 sapphire to see the differences. I supposed that the block valve is separeted from the whole ABS unit like with RHD ABS block.
bob le routier is offline
Old 28-06-2019, 01:26 PM
  #8
grcossie
I've found that life I needed.. It's HERE!!

grcossie's Avatar

Join Date: May 2007
Location: norway
Posts: 1,255
Received 20 Likes on 20 Posts
Default

grcossie is offline
Old 29-06-2019, 08:17 AM
  #9
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by grcossie View Post
Thanks, is it an escort cos LHD braking system ?
bob le routier is offline
Old 29-06-2019, 09:51 AM
  #10
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default

I can see that the Jaguar XJS is equiped with a similar TEVES ATE MK2 ABS system.

I can also see they get a remplacement valve block with a very thin cover:

https://www.jagroverland.com/abs-mod...1475-open-box/

The cover seems to retain the valves:

https://www.jaguarforums.com/forum/x...l-left-113913/
bob le routier is offline
Old 29-06-2019, 10:12 AM
  #11
stevieturbo
C**t

stevieturbo's Avatar

Join Date: Oct 2003
Location: Norn Iron
Posts: 6,855
Received 137 Likes on 131 Posts
Default

I presume that is a stud in the first photo ?

Just remove it and fit a shallow head bolt as per the lower fastener in the photo ? Or just shorten the threads of the stud and use a half nut.

And ensure good strong engine mounts.

or as others said, just move it a little to the side, even a small spacer giving the unit a small angle would not hurt how it operates, but would give you additional clearance at the manifold side.
stevieturbo is offline
Old 29-06-2019, 01:43 PM
  #12
bob le routier
Virgin
Thread Starter

Join Date: Feb 2014
Location: France
Posts: 6
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by stevieturbo View Post
I presume that is a stud in the first photo ?

Just remove it and fit a shallow head bolt as per the lower fastener in the photo ? Or just shorten the threads of the stud and use a half nut.

And ensure good strong engine mounts.
I will manage about stud and nuts

Originally Posted by stevieturbo View Post
or as others said, just move it a little to the side, even a small spacer giving the unit a small angle would not hurt how it operates, but would give you additional clearance at the manifold side.
Yes, it seems to be a good option to increase clearance.

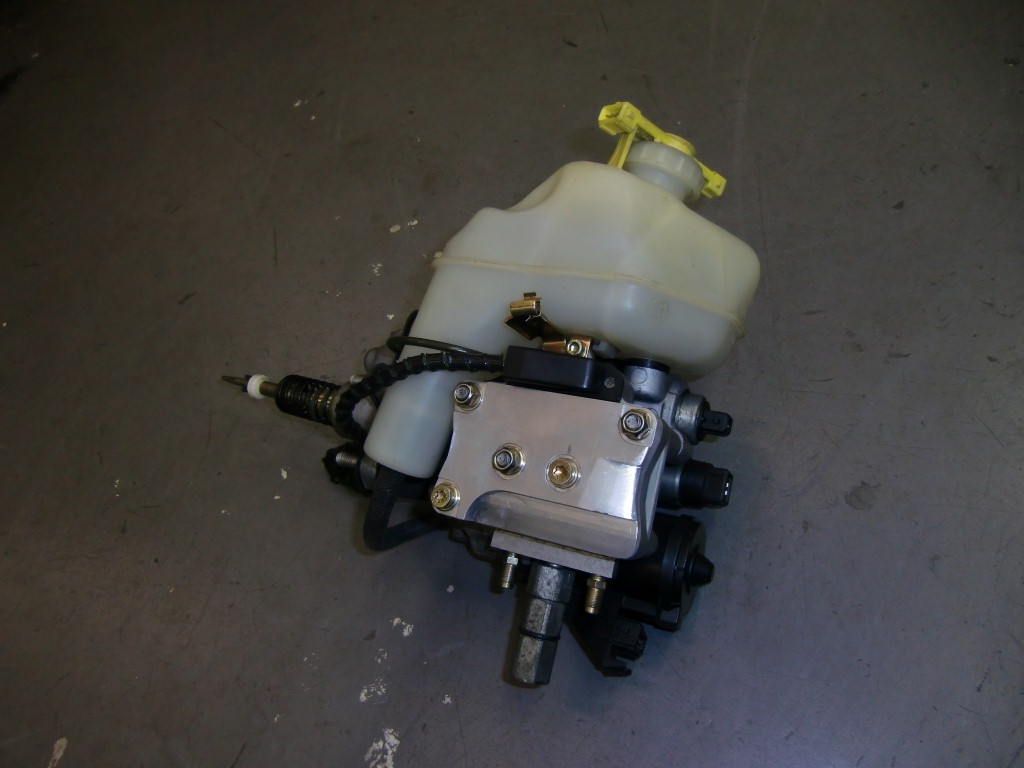

The kind of plate I would like to find:

Volvo 480:


Remplacement block for Jaguar XJS:


bob le routier is offline
