MAD built 800+ hp 200+ mph Sierra sapphire cosworth
My new car currently in final stages of build before I take delivery of it.
an epic car that started my own personal journey on a quest for 1000 hp which I ended up getting a gtr with.
The Sierra was specced and built by rod tarry and mark Shead of madevelopments, sadly rod passed away in February 2018, so the start of this thread is all about documenting the history of the car and it's current build as best I can from information rod has put on his Facebook page
So let's start with the history first
in rods own words "
BRIEF HISTORY - It had been a dream for many years to build a very fast car. My son suggested a Sierra RS Cosworth as having good Tuning potential so the search began. In July 1996 I found & purchased an extremely clean Sapphire with a 330bhp M.A.Developments conversion. I contacted Mark Shead at MAD & asked for him to build a 400bhp engine as I thought that would be my dream car. I covered 9000 miles before the urge for more grunt returned. The result a 504bhp/492ft-lb conversion which required uprated brakes , Differential & a Tremec TKO gearbox to cope. This was a great engine & it managed runner-up at TOTB RWD section in 2002. Before 2002 came to a close the car had set a RS Cosworth RWD Topspeed record of 183.27mph it was a pleasant surprise. That record was beaten in 2003 so to regain it required more Power. A MAD 640bhp/530ft-lb conversion was fitted & with a 75 shot of Nitrous around 720bhp was available. On the 16/09/2004 at Bruntingthorpe with Mark at the wheel it became the first RS Cosworth on the planet to exceed 200mph running 201.8mph. I joined the 200mph club with a personal best of 201.3mph in early 2005. To push the record further a larger GT40/94 Turbo was fitted pushing Power to 680bhp & with a 100 shot of Nitrous it was enough to see the record raised to 206.1mph in August 2005. In 2015 that record still stands. We tried to break it on the TV program '5th Gear' in November 2005 but very damp conditions saw us fail with 206.0mph recorded despite running around 830bhp that day with a 150 shot of gas.
The development of a 800bhp engine started in 2006 but took some time to complete in December 2008 it made 838bhp/666ft-lb. This engine used a GT4202 turbo & ran as my road car for several years.
With the developments in Electronics & Turbo technology we are in 2015 starting to build a 900+bhp engine using a EFR 9180 Turbo & the latest Emtron KV8 Ecu its progress will be monitored on this page. Its hoped to run at a Vmax event in 2016 to try to push the Topspeed record to circa 212mph.
an epic car that started my own personal journey on a quest for 1000 hp which I ended up getting a gtr with.
The Sierra was specced and built by rod tarry and mark Shead of madevelopments, sadly rod passed away in February 2018, so the start of this thread is all about documenting the history of the car and it's current build as best I can from information rod has put on his Facebook page
So let's start with the history first
in rods own words "
BRIEF HISTORY - It had been a dream for many years to build a very fast car. My son suggested a Sierra RS Cosworth as having good Tuning potential so the search began. In July 1996 I found & purchased an extremely clean Sapphire with a 330bhp M.A.Developments conversion. I contacted Mark Shead at MAD & asked for him to build a 400bhp engine as I thought that would be my dream car. I covered 9000 miles before the urge for more grunt returned. The result a 504bhp/492ft-lb conversion which required uprated brakes , Differential & a Tremec TKO gearbox to cope. This was a great engine & it managed runner-up at TOTB RWD section in 2002. Before 2002 came to a close the car had set a RS Cosworth RWD Topspeed record of 183.27mph it was a pleasant surprise. That record was beaten in 2003 so to regain it required more Power. A MAD 640bhp/530ft-lb conversion was fitted & with a 75 shot of Nitrous around 720bhp was available. On the 16/09/2004 at Bruntingthorpe with Mark at the wheel it became the first RS Cosworth on the planet to exceed 200mph running 201.8mph. I joined the 200mph club with a personal best of 201.3mph in early 2005. To push the record further a larger GT40/94 Turbo was fitted pushing Power to 680bhp & with a 100 shot of Nitrous it was enough to see the record raised to 206.1mph in August 2005. In 2015 that record still stands. We tried to break it on the TV program '5th Gear' in November 2005 but very damp conditions saw us fail with 206.0mph recorded despite running around 830bhp that day with a 150 shot of gas.
The development of a 800bhp engine started in 2006 but took some time to complete in December 2008 it made 838bhp/666ft-lb. This engine used a GT4202 turbo & ran as my road car for several years.
With the developments in Electronics & Turbo technology we are in 2015 starting to build a 900+bhp engine using a EFR 9180 Turbo & the latest Emtron KV8 Ecu its progress will be monitored on this page. Its hoped to run at a Vmax event in 2016 to try to push the Topspeed record to circa 212mph.
The following 2 users liked this post by scoooby slayer:
eyeballpaul (08-07-2021),
Fraz1 (02-01-2024)
#2
10K+ Poster!!
Thread Starter
iTrader: (4)
We start in november 2015
Alot of parts bought for the new build
Protec veyron P1 fuel pump
Mad spec cams, wild inlet, mild exhaust

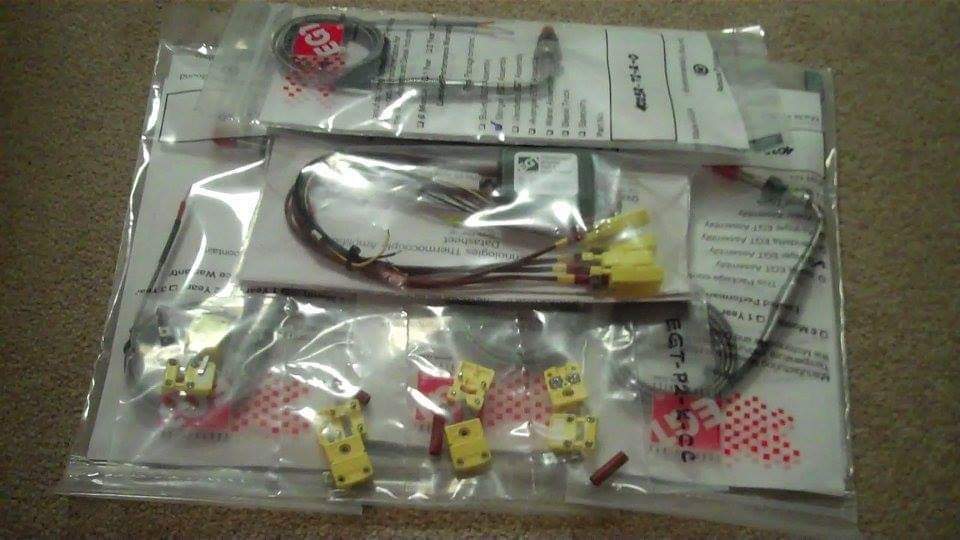

Egt probes and amplifier
Cylinder head
Efr 9180 turbo
Jenvey inlet with itbs
Rattler front pulley
Dkr bespoked crank
Arrow Conrods
New switch facias
Twin scroll external wastegate manifold
Titan dry sump
Mad spec CP pistons, combined with crank and rods makes 2150 cc
Alot of parts bought for the new build
Protec veyron P1 fuel pump
Mad spec cams, wild inlet, mild exhaust
Egt probes and amplifier
Cylinder head
Efr 9180 turbo
Jenvey inlet with itbs
Rattler front pulley
Dkr bespoked crank
Arrow Conrods
New switch facias
Twin scroll external wastegate manifold
Titan dry sump
Mad spec CP pistons, combined with crank and rods makes 2150 cc
The following 4 users liked this post by scoooby slayer:
#3
10K+ Poster!!
Thread Starter
iTrader: (4)

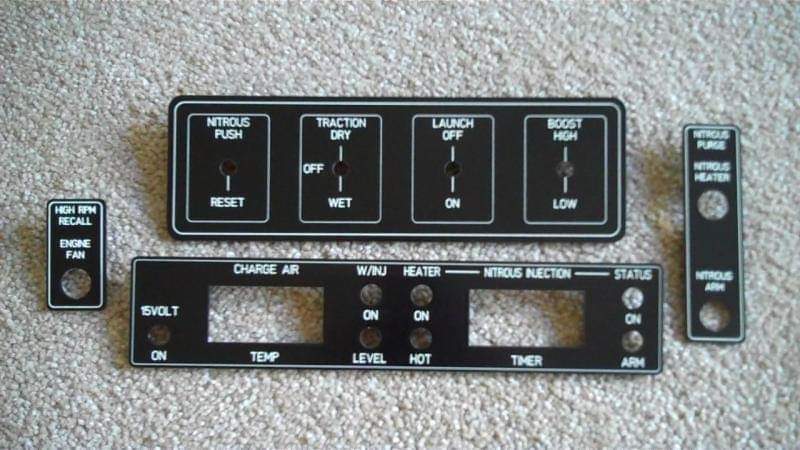

16v accuvolt to supply CDI unit, egt amplifier and emtron ECU and 22v amplifier for fuel pump
Nitrous system pulsoids and purge valve
Spec r intercooler with built in dump valve, turbo cooler and radiator with slimline fans
Front cross member had to be moved forward to allow fitment of a deeper intercooler, and front bumper modification
Nitrous system pulsoids and purge valve
Spec r intercooler with built in dump valve, turbo cooler and radiator with slimline fans
Front cross member had to be moved forward to allow fitment of a deeper intercooler, and front bumper modification
The following 2 users liked this post by scoooby slayer:
cosworth3d (21-01-2020),
opposite lock (26-02-2019)
#4
10K+ Poster!!
Thread Starter
iTrader: (4)
Underbody resto, everything powder coated black, Leda coilovers refurbed
Chassis cleaned up and undersealed where needed
Fuel pump module made and fitted to the car
Rod built a new loom for the emtron ECU
Dummy engine fitted so parts and wiring can be trialed
Engine being built by mark Shead
Chassis cleaned up and undersealed where needed
Fuel pump module made and fitted to the car
Rod built a new loom for the emtron ECU
Dummy engine fitted so parts and wiring can be trialed
Engine being built by mark Shead
#5
10K+ Poster!!
Thread Starter
iTrader: (4)
Instrument cluster, gauges and interior
Modified crank pulley
Titan dry sump being trialed fitted and hoses made

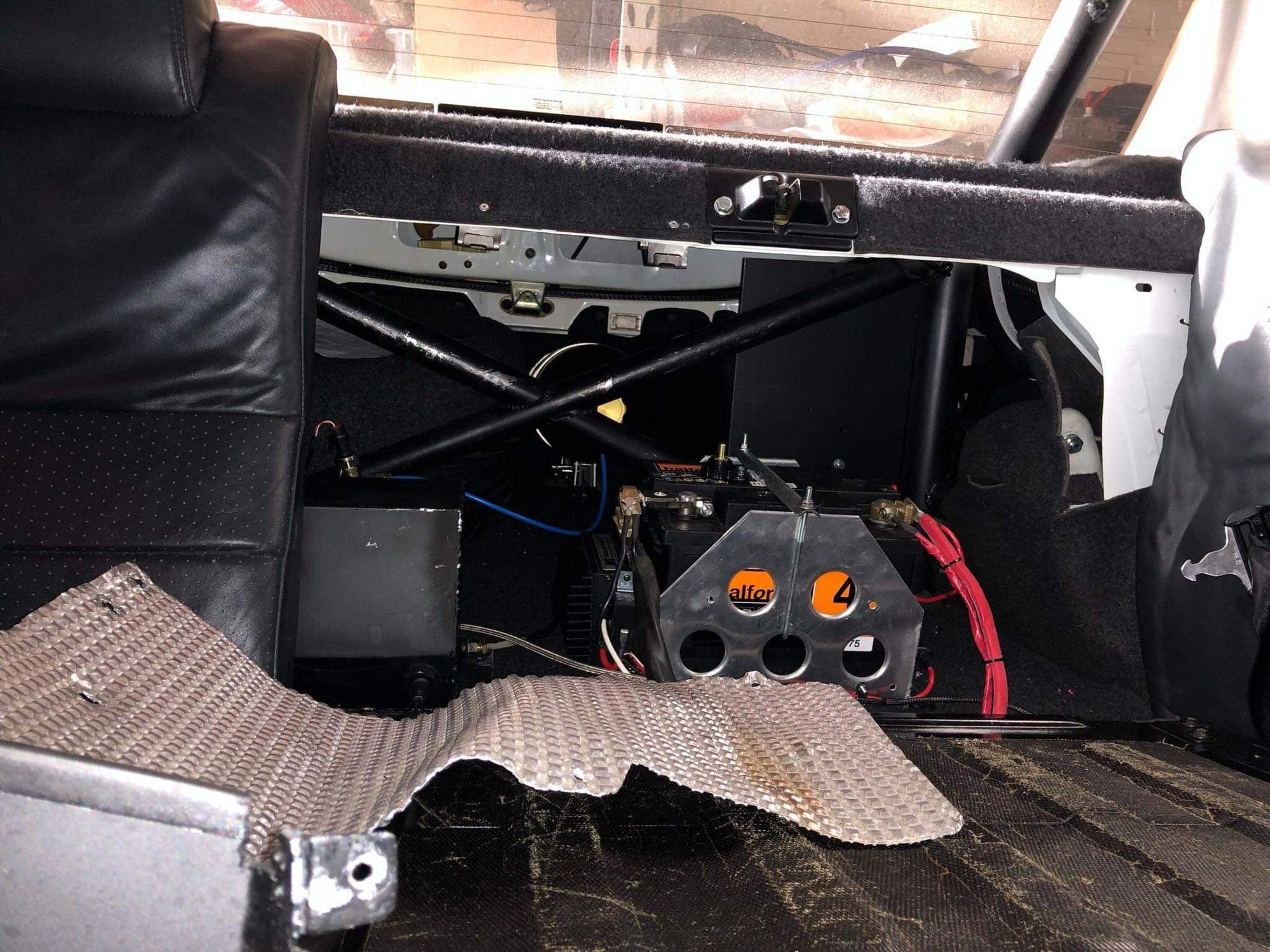

Boot install, water methanol injection pump, dry sump tank, nitrous bottle, battery relocate and spare wheel bolted above floor
25th may 2017 car comes out of garage for first time in 15 months ! We can all imagine the cost of all the parts, but it's the man hours that has really opened my eyes as I'm relaying this on here, huge amounts of work which rod did alot of himself
Modified crank pulley
Titan dry sump being trialed fitted and hoses made
Boot install, water methanol injection pump, dry sump tank, nitrous bottle, battery relocate and spare wheel bolted above floor
25th may 2017 car comes out of garage for first time in 15 months ! We can all imagine the cost of all the parts, but it's the man hours that has really opened my eyes as I'm relaying this on here, huge amounts of work which rod did alot of himself
The following users liked this post:
Fraz1 (02-01-2024)
