Escort rs turbo adjustable rear link

Old 15-03-2019, 01:14 PM
  #1
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default Escort rs turbo adjustable rear link

Hi guys I'm looking at making the rear adjustable linkage. Does anyone have any measurements for it. And where they got the parts from.
Lee read is offline
Old 15-03-2019, 02:54 PM
  #2
bassboy
PassionFord Post Troll

Join Date: May 2004
Posts: 3,359
Thanked 59 Times in 54 Posts
Default

Interested in this myself...be good to know if anyone can help
bassboy is offline
Old 15-03-2019, 02:59 PM
  #3
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by bassboy View Post
Interested in this myself...be good to know if anyone can help
it will mate. I only need measurements and size of tubes that's been used
Lee read is offline
Old 15-03-2019, 06:12 PM
  #4
jonfoc
Advanced PassionFord User

Join Date: May 2011
Location: God knows!
Posts: 2,220
Thanked 238 Times in 223 Posts
Default

Most of the hardware can be bought from rally design. Look up a guy on here and drop him a pm, muz is his name. I built mine years ago and got the measurements straight from MEF. Lost the drawing many years ago now. Transformed the handling but made the car hard and noisy
jonfoc is offline
Old 15-03-2019, 06:20 PM
  #5
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by jonfoc View Post
Most of the hardware can be bought from rally design. Look up a guy on here and drop him a pm, muz is his name. I built mine years ago and got the measurements straight from MEF. Lost the drawing many years ago now. Transformed the handling but made the car hard and noisy
thank you for that mate will find him and send a message
Lee read is offline
Old Yesterday, 05:07 PM
  #6
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

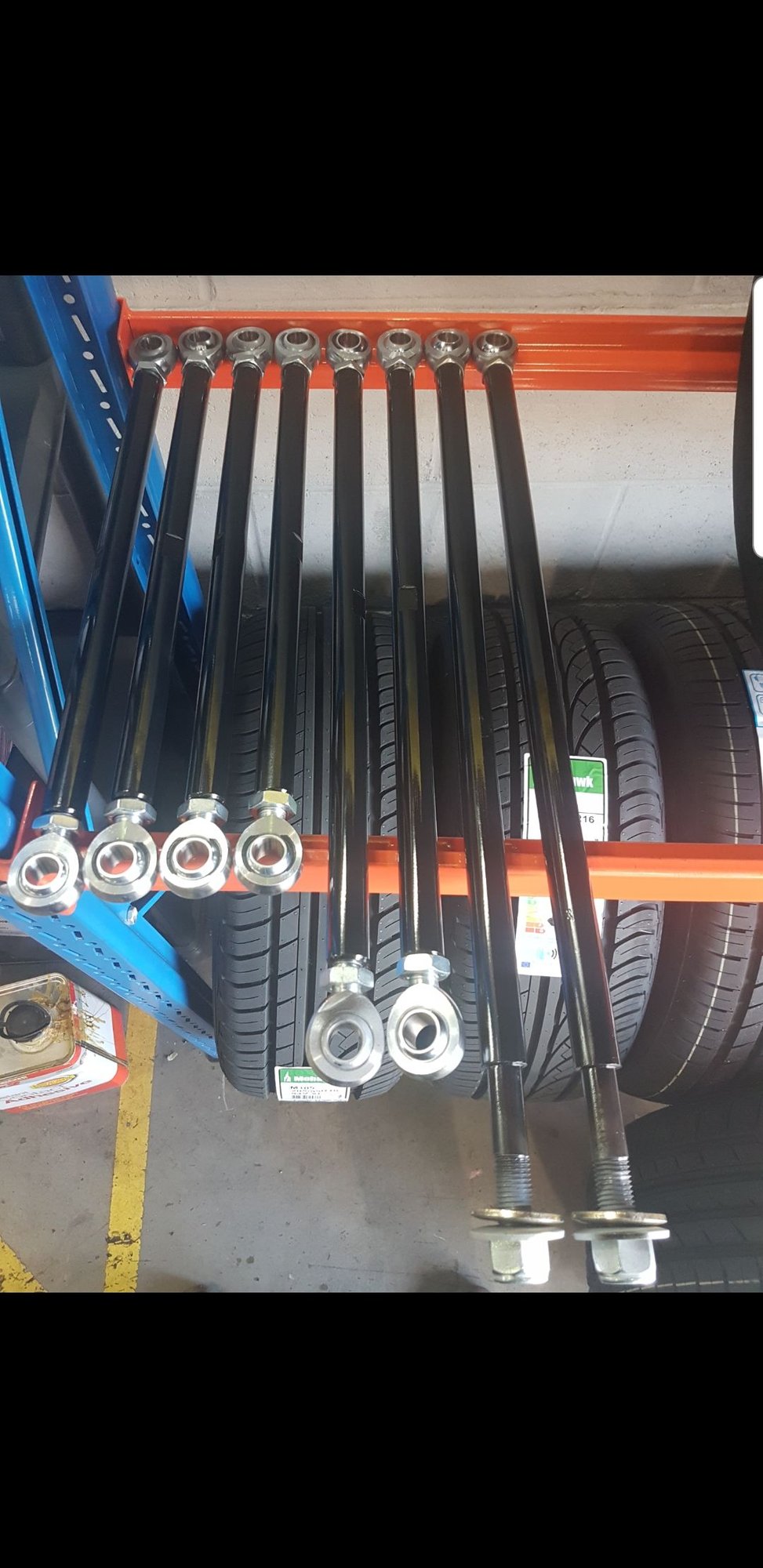

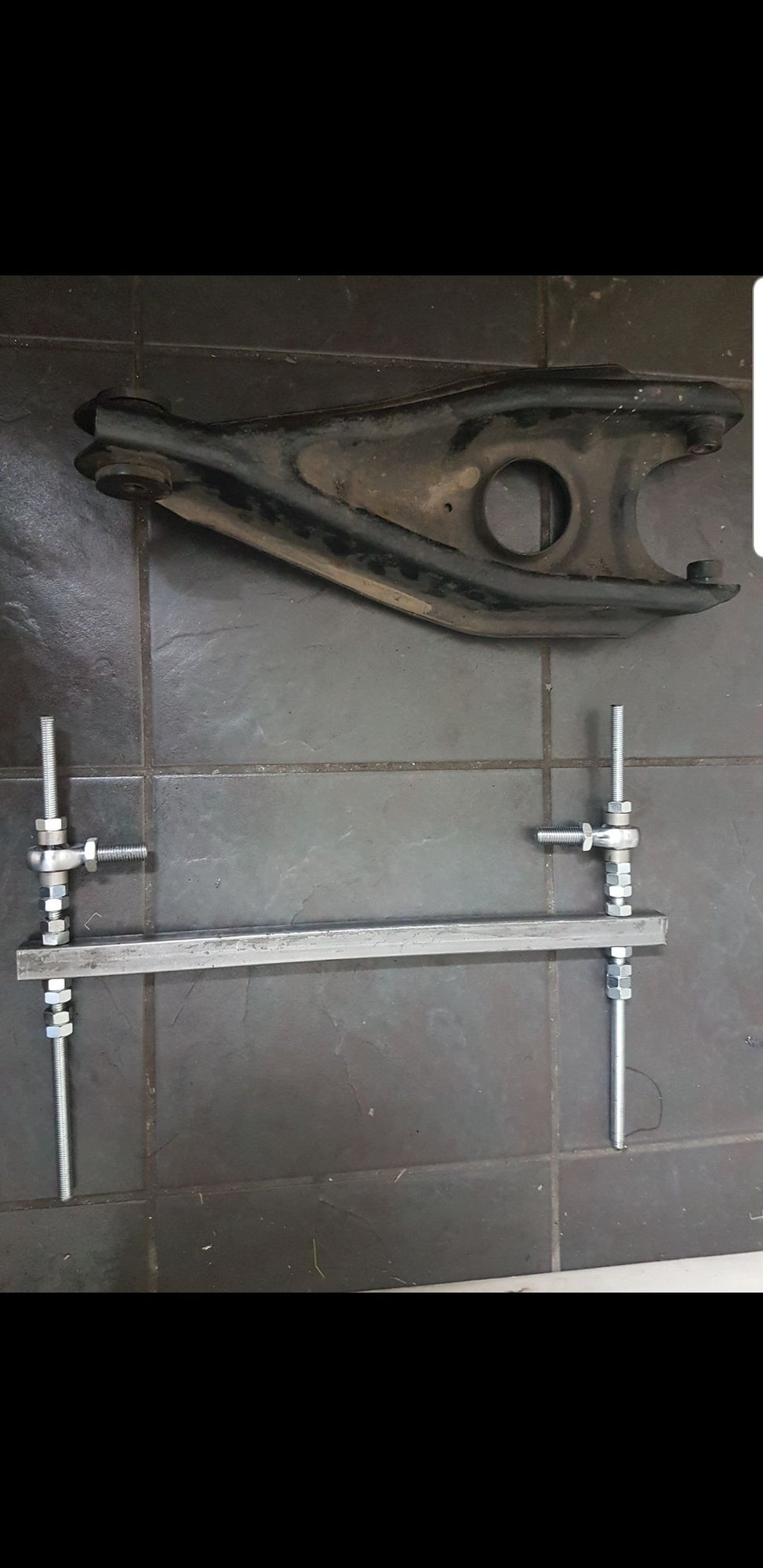

I made some a while ago. made a simple jig using a bit of box section and threaded bar to replicate a rear with bone and used used nuts to work out spacer sizes pretty simple to do.
cossirob is offline
Old Yesterday, 05:09 PM
  #7
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default




cossirob is offline
Old Yesterday, 05:14 PM
  #8
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

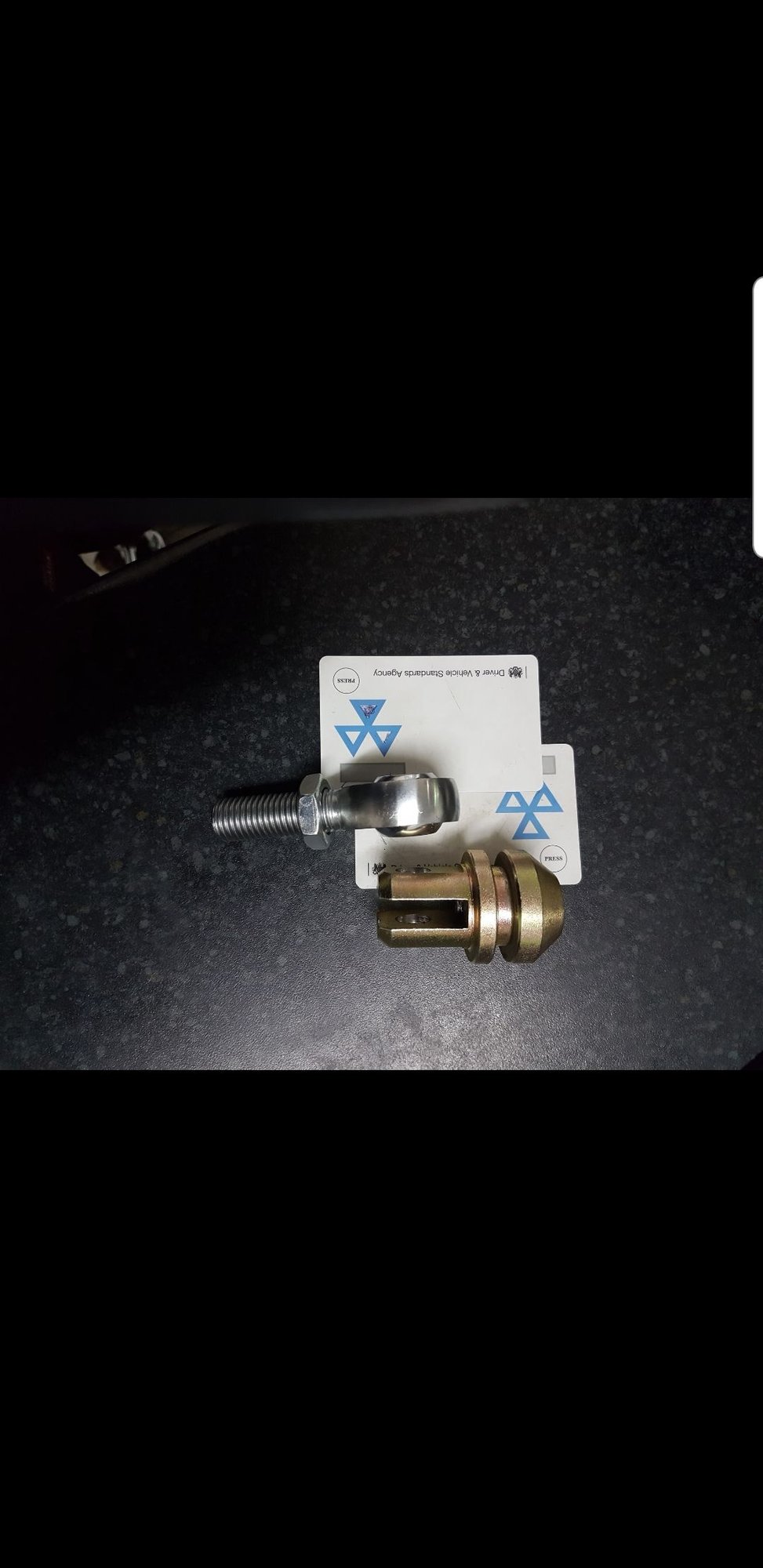

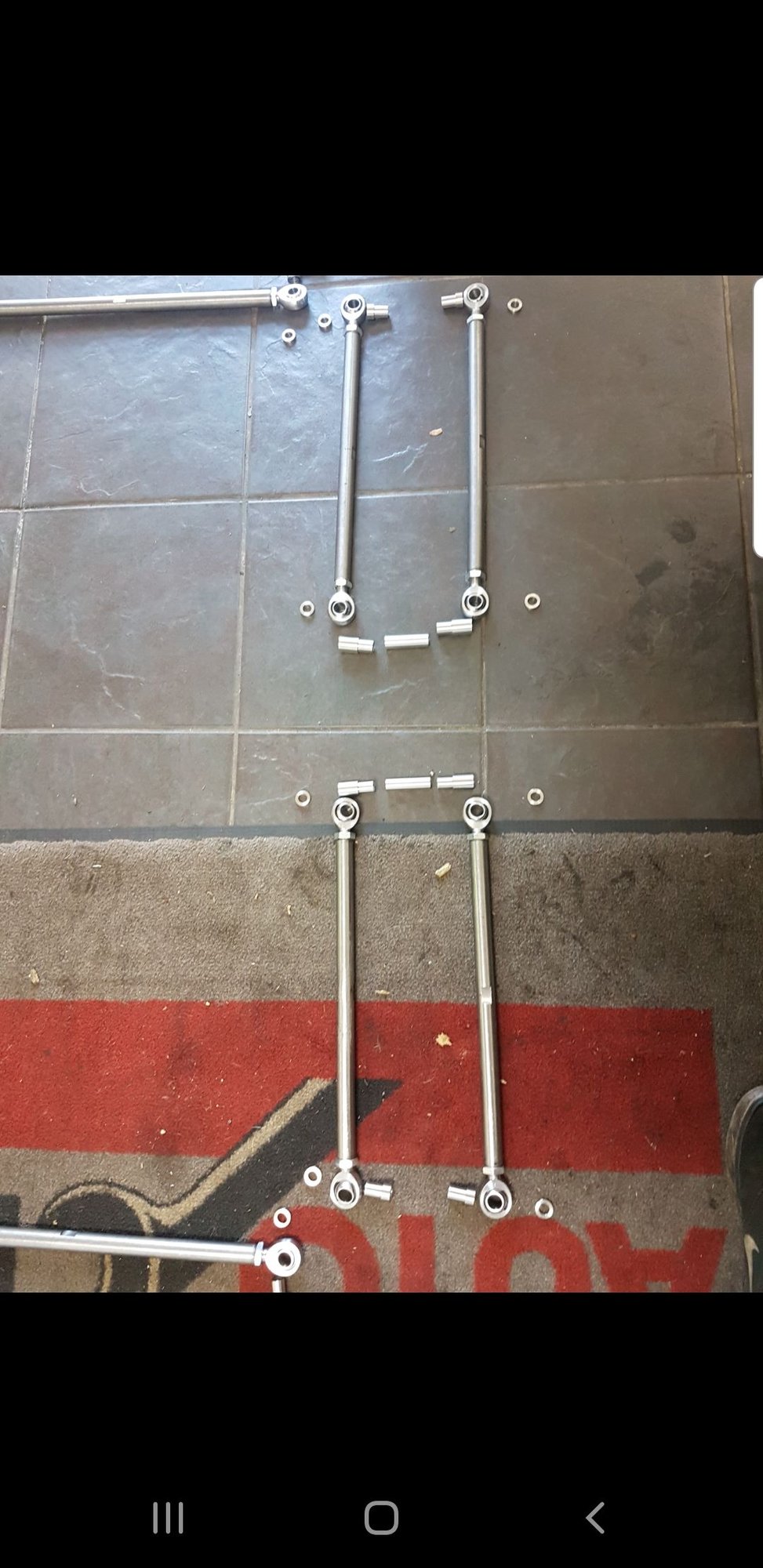

Found a chap on ebay to make me the spacers and had the bars cut to length and ends tapped for rose joints
cossirob is offline
Old Yesterday, 07:27 PM
  #9
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by cossirob View Post

Found a chap on ebay to make me the spacers and had the bars cut to length and ends tapped for rose joints
do you have any measurements still?
Lee read is offline
Old Yesterday, 09:19 PM
  #10
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

Originally Posted by Lee read View Post
do you have any measurements still?
I do still have some drawings BUT when I was making them I kept tweaking the measurements until I got them perfect and now I cant remember for the life of me what ones of my drawings are correct and what ones aren't so I could end up giving you the wrong ones lol.
cossirob is offline
Old Yesterday, 09:22 PM
  #11
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by cossirob View Post
I do still have some drawings BUT when I was making them I kept tweaking the measurements until I got them perfect and now I cant remember for the life of me what ones of my drawings are correct and what ones aren't so I could end up giving you the wrong ones lol.
have you still got the car with them on and see what measurements add up? Or send what you got and I'm sure I could work it out lol
Lee read is offline
Old Yesterday, 10:11 PM
  #12
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

The car is in my mates body shop for paint but hes doing it on the side so he might have it a few weeks or a few months. Il post up the drawings I have but like I said take them with a pinch of salt as I cant say for sure if they are the correct ones.
cossirob is offline
Old Yesterday, 10:17 PM
  #13
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default


Main spacers/rose joint reducer
cossirob is offline
Old Yesterday, 10:19 PM
  #14
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by cossirob View Post

Main spacers/rose joint reducer
are those the spacers mate?
Lee read is offline
Old Yesterday, 10:22 PM
  #15
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

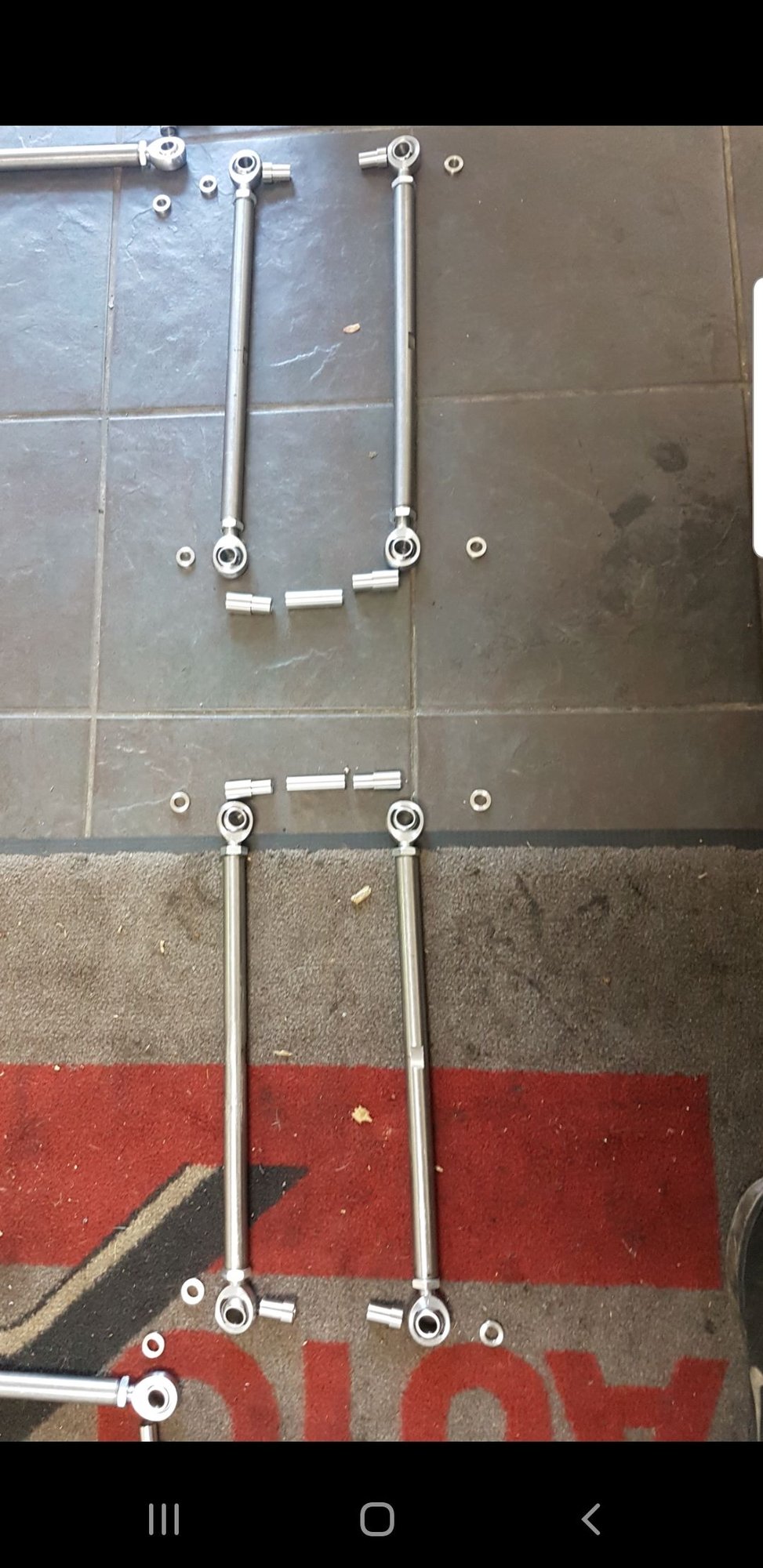

4 link bar sizes at the bottom, cant remember what them spacers/ reducers are?
cossirob is offline
Old Yesterday, 10:25 PM
  #16
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by cossirob View Post


ok il get my brother to make all of them. What size tubes did you use?
Lee read is offline
Old Yesterday, 10:29 PM
  #17
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

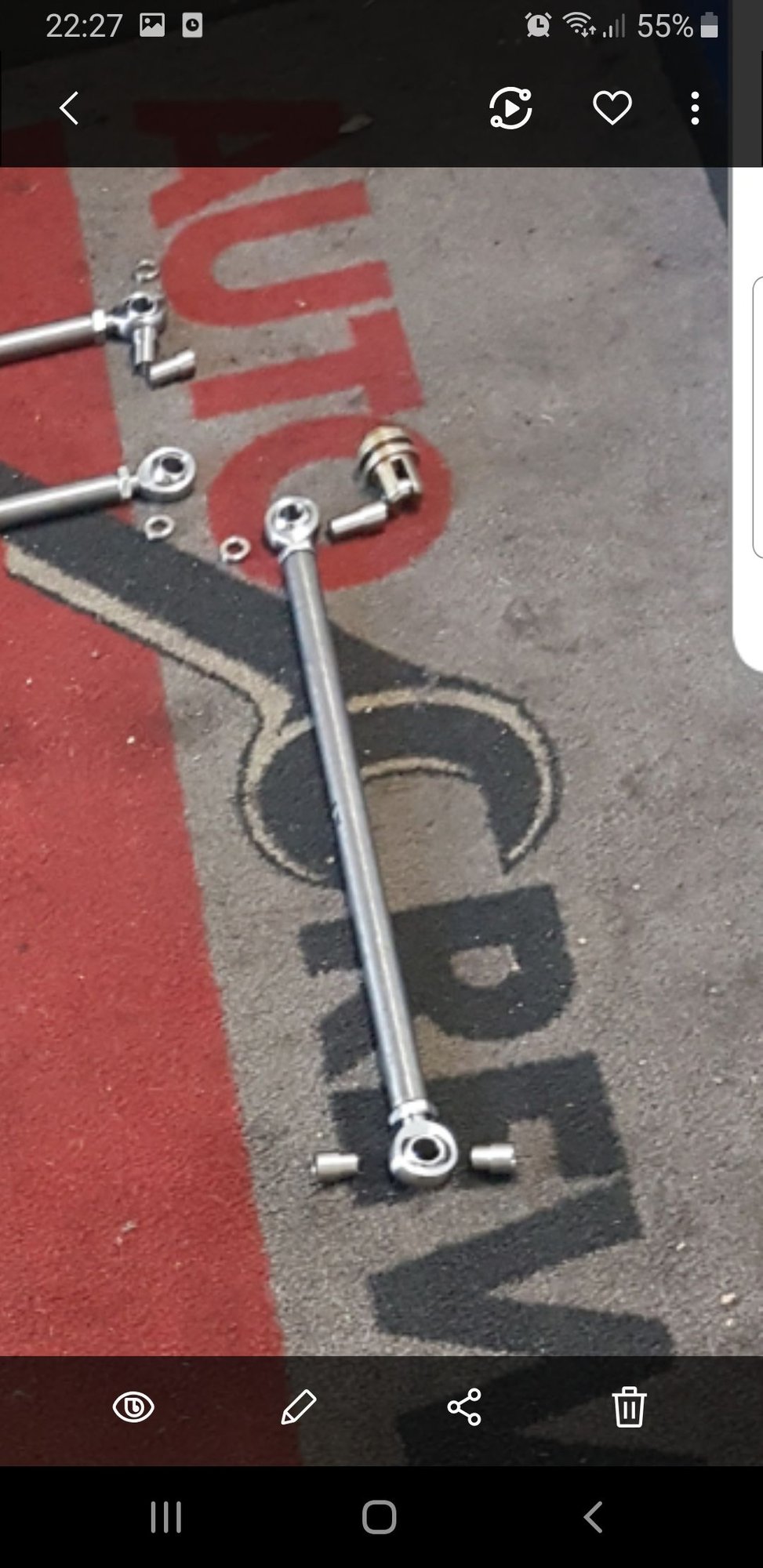

Spacers & bar measurements for the bottom of hub to chassis arms

cossirob is offline
Old Yesterday, 10:40 PM
  #18
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

Originally Posted by Lee read View Post
are those the spacers mate?
yeah they are the ones for the rear 6 rear link kit
cossirob is offline
Old Yesterday, 10:45 PM
  #19
Lee read
Rs turbo
Thread Starter

Lee read's Avatar

Join Date: Dec 2018
Location: Kidderminster
Posts: 106
Thanked 9 Times in 9 Posts
Default

Originally Posted by cossirob View Post
yeah they are the ones for the rear 6 rear link kit
what size tubes are they mate?
Lee read is offline
Old Yesterday, 10:45 PM
  #20
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default


Had a load of thick washers made to sit on the outside of the rose joints to allow them to move freely
cossirob is offline
Old Yesterday, 10:59 PM
  #21
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default

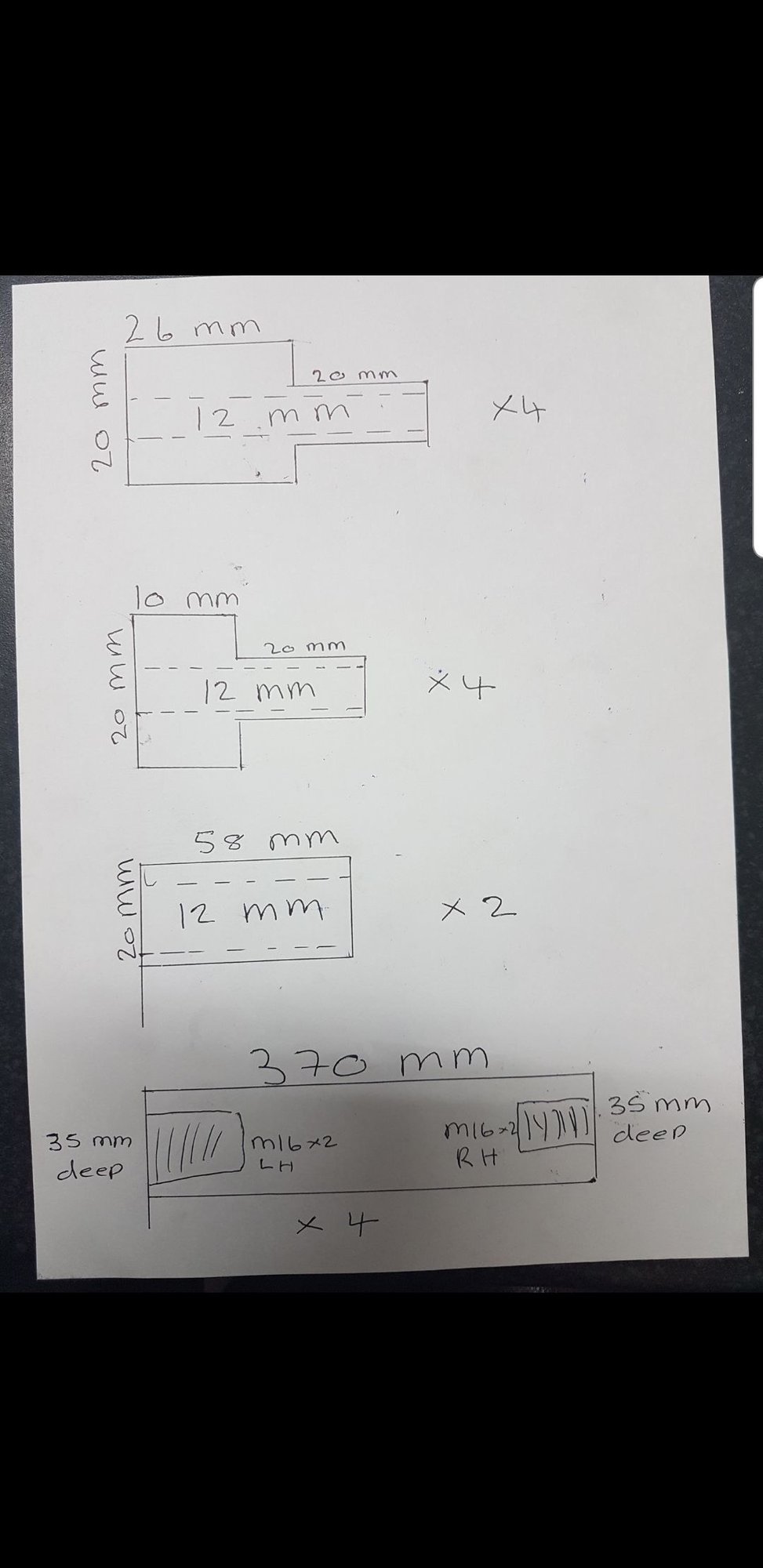

This drawing correspond to the 4 links bars & spacers below

cossirob is offline
Old Yesterday, 11:11 PM
  #22
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default


This drawing corresponds to the arms below. The 9mm spacers are used to slot inside the cone fitting to stop it crushing when boltimg a rose joint onti the side of it


Thats all the pictures and measurements i have but like i said they might not be my final drawings (im pretty sure they are) and they might not be 100% correct for your car/ setup so id recommended you use them as a reference rather than copy them exactly.
cossirob is offline
Old Yesterday, 11:19 PM
  #23
cossirob
PassionFord Regular

Join Date: Sep 2009
Location: portsmouth
Posts: 352
Thanked 8 Times in 8 Posts
Default


I also had new tie bars made for the front that go from the tca to the anti roll bar setup off an s1 rst. Might have drawings for them too somewhere 😂
cossirob is offline
