Smokestone Saph Resto Thread
So for years ive been on and off here looking at the amazing build threads and some top quality engineering skill.
Ever since I was a kid ive wanted a cossie, ive had loads of sapphires a few replicas but moved away from Fords a bit in later years but the time came and thought now or never so 2 years ago I found the exact car I was looking for.
92 K Sapphire Cosworth in Smokestone Blue - 2 owners from new totally standard with only a Stainless Exhaust. The guy I bought it from had it years and it only came out 2-3 times a year when he used to take the wife out for Sunday dinner. He had it parked in a garage with a duvet over it and socks over the mirrors 'So he did scratch the mirrors with his belt when he went to the fridge for a beer' lol
So heres a few pictures from the day I went to view it,
And a few from when I got it home and gave it a good polish. These were for the agreed valuation,
Id always wanted a Smokestone Saph with RS7 Soft spokes, so I found a set and fitted them along with a set of Koni's and Ahmed Bayjoo springs. Whist I was at it I changed the front disc and pads as they were warped,
Then managed to make it too RSOC Day at Croft,
It didn't take long until I was on the hunt for more power. I asked around and many people advised MSD Blackpool to me, a quick call and the car was booked in. A couple of months wait and the week finally came, the Sunday before it was due to go in on the Thursday I called in where some of the local lads practice a bit of drifting and had to have ago as I was leaving. Heres the results drivers side CV joint exploded,
Managed to get the car home stripped down a new shaft on 24hr delivery and back together the night before going to MSD.
Thursday came and road trip to MSD, car had a stage 2 and was mapped to 310,
Got to say MSD were great I couldn't recommend them enough, car drove amazing and pulled in every gear until we got to the M6. Coming down the slip road just about to joint the M6 and bang steam everywhere. Coasted to the hard shoulder popped the bonnet to find the water hose off the stat housing had burst right on the jubilee clip. A bit of ingenuity and taking turns pissing in a bottle (really lol) and we were back on the road.
Got the car home and it wasn't long until the same hose wen again, this time properly,
After fixing this I had a good look over and found the engine mount where fooked, think this was a big contributor to the CV joint exploding on full lock,
These were changed out for some Colin Performance mounts and the car drove great for about 2-3 months until I heard this really annoying knocking coming form the back end.
After weeks of trying to find the knock I found play in the read drop arm bushes, bit of reading up I found lots of people saying not to poly bush these and go with Graham Goode replacements so a shopping list of parts when in and the work started.
Ignore the mess in the garage I was in the middle of working on the house too.
Once the car was in the air and I had the rear beam out, tank off, diff out etc I started to poke around and have a scrap of the wax oil to see what it was like under there. Before long it started to get into a full rear end resto. Ill let the pictures tell the story,

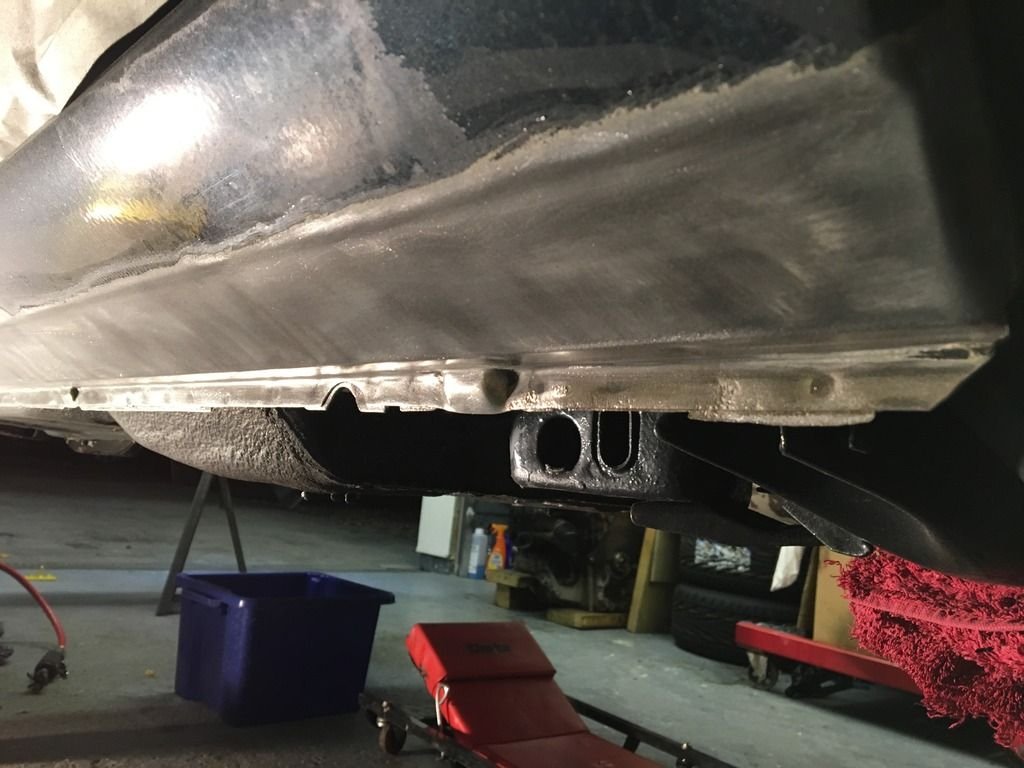

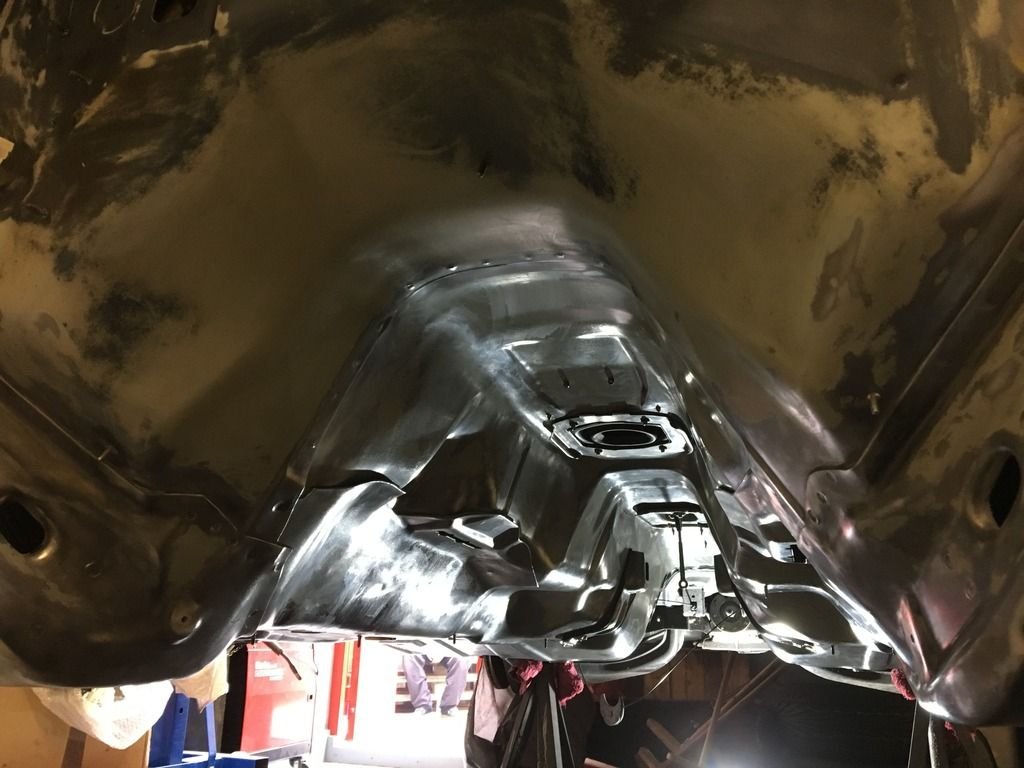

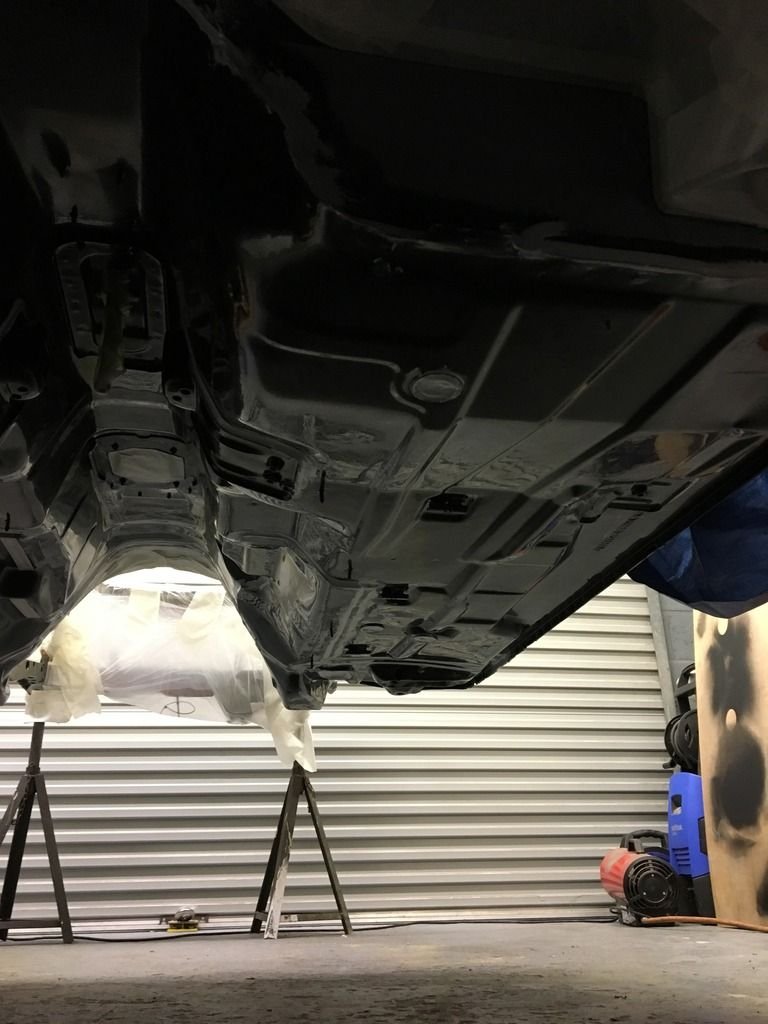

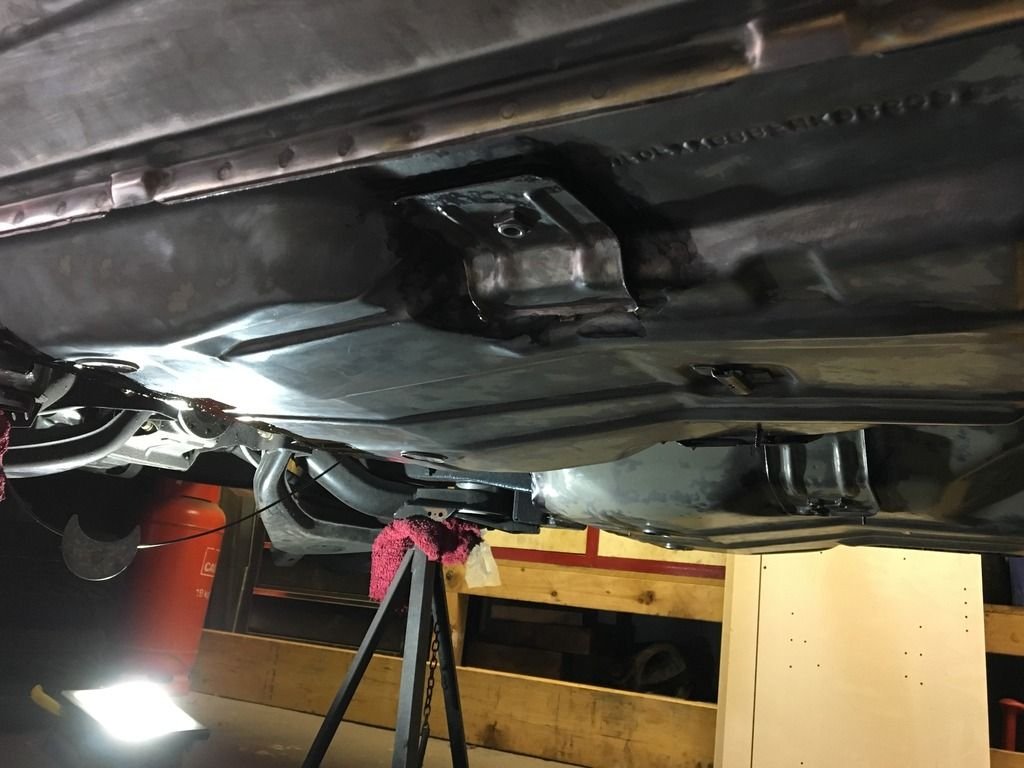

The whole underneath from behind the rear bumper to the start of the transmission tunnel was stripped including right up into the rear arches. There was only a little bit of surface rust. The car had never been welded and didn't need any. I treated the areas of rust with rust convertor before going at the bear metal with POR15 first.
Ever since I was a kid ive wanted a cossie, ive had loads of sapphires a few replicas but moved away from Fords a bit in later years but the time came and thought now or never so 2 years ago I found the exact car I was looking for.
92 K Sapphire Cosworth in Smokestone Blue - 2 owners from new totally standard with only a Stainless Exhaust. The guy I bought it from had it years and it only came out 2-3 times a year when he used to take the wife out for Sunday dinner. He had it parked in a garage with a duvet over it and socks over the mirrors 'So he did scratch the mirrors with his belt when he went to the fridge for a beer' lol
So heres a few pictures from the day I went to view it,
And a few from when I got it home and gave it a good polish. These were for the agreed valuation,
Id always wanted a Smokestone Saph with RS7 Soft spokes, so I found a set and fitted them along with a set of Koni's and Ahmed Bayjoo springs. Whist I was at it I changed the front disc and pads as they were warped,
Then managed to make it too RSOC Day at Croft,
It didn't take long until I was on the hunt for more power. I asked around and many people advised MSD Blackpool to me, a quick call and the car was booked in. A couple of months wait and the week finally came, the Sunday before it was due to go in on the Thursday I called in where some of the local lads practice a bit of drifting and had to have ago as I was leaving. Heres the results drivers side CV joint exploded,
Managed to get the car home stripped down a new shaft on 24hr delivery and back together the night before going to MSD.
Thursday came and road trip to MSD, car had a stage 2 and was mapped to 310,
Got to say MSD were great I couldn't recommend them enough, car drove amazing and pulled in every gear until we got to the M6. Coming down the slip road just about to joint the M6 and bang steam everywhere. Coasted to the hard shoulder popped the bonnet to find the water hose off the stat housing had burst right on the jubilee clip. A bit of ingenuity and taking turns pissing in a bottle (really lol) and we were back on the road.
Got the car home and it wasn't long until the same hose wen again, this time properly,
After fixing this I had a good look over and found the engine mount where fooked, think this was a big contributor to the CV joint exploding on full lock,
These were changed out for some Colin Performance mounts and the car drove great for about 2-3 months until I heard this really annoying knocking coming form the back end.
After weeks of trying to find the knock I found play in the read drop arm bushes, bit of reading up I found lots of people saying not to poly bush these and go with Graham Goode replacements so a shopping list of parts when in and the work started.
Ignore the mess in the garage I was in the middle of working on the house too.
Once the car was in the air and I had the rear beam out, tank off, diff out etc I started to poke around and have a scrap of the wax oil to see what it was like under there. Before long it started to get into a full rear end resto. Ill let the pictures tell the story,
The whole underneath from behind the rear bumper to the start of the transmission tunnel was stripped including right up into the rear arches. There was only a little bit of surface rust. The car had never been welded and didn't need any. I treated the areas of rust with rust convertor before going at the bear metal with POR15 first.
Last edited by growlingchim; 07-10-2016 at 01:46 PM.
#2
15000
Thread Starter
So the painting and rebuild, more pictures

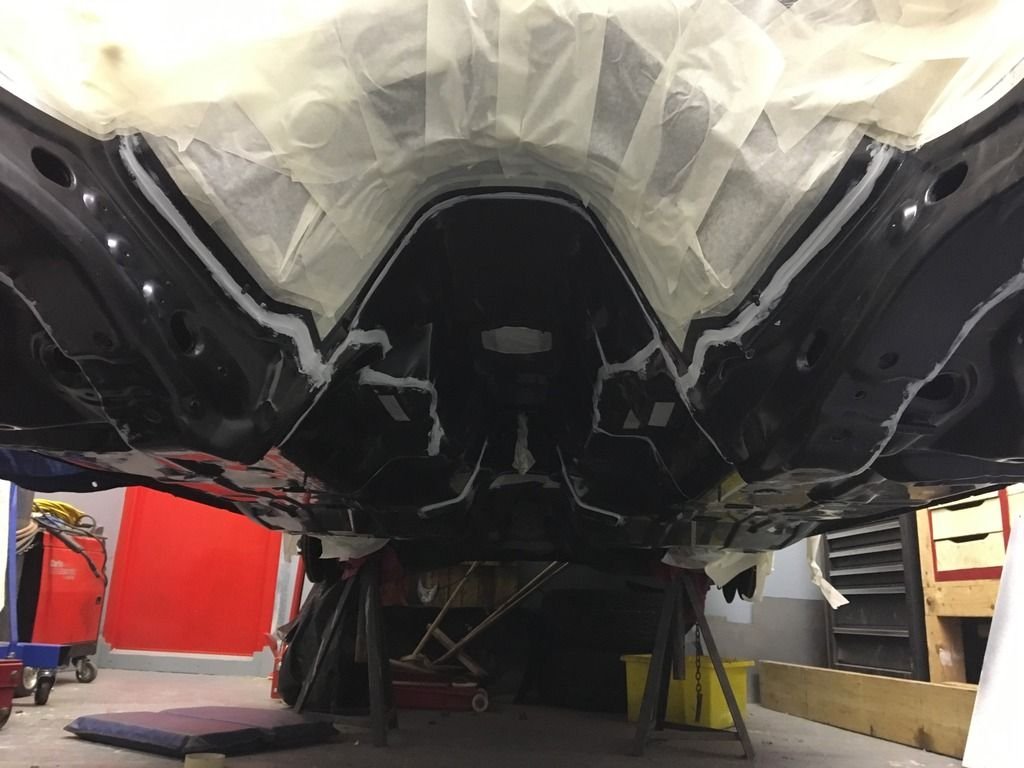

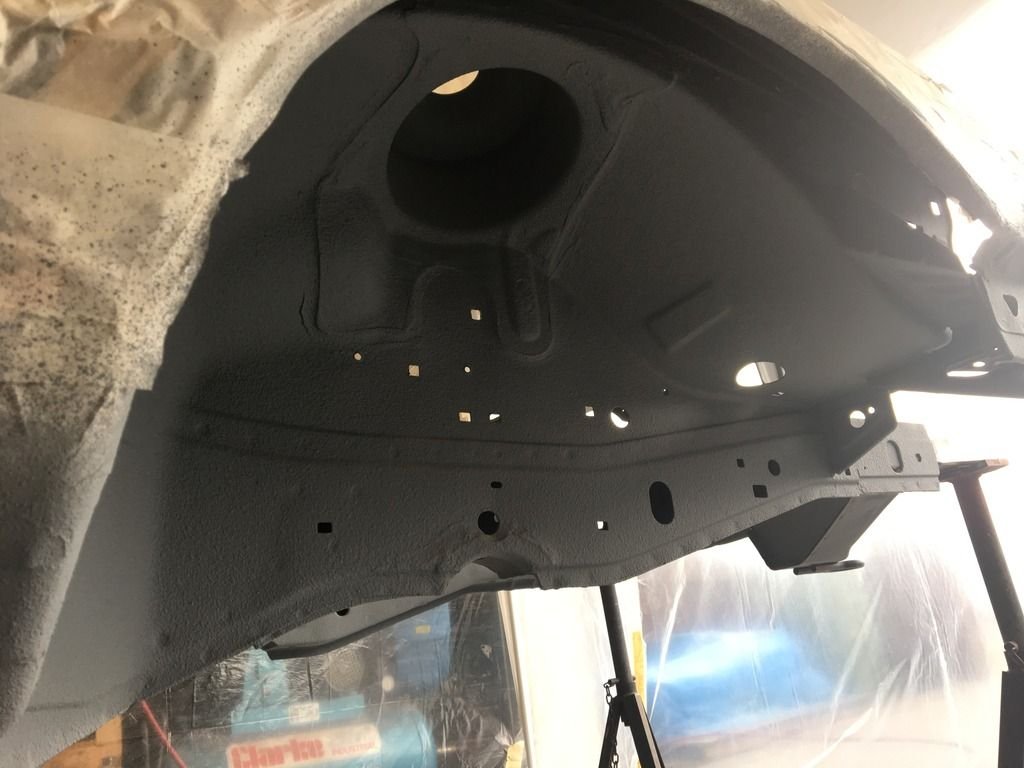

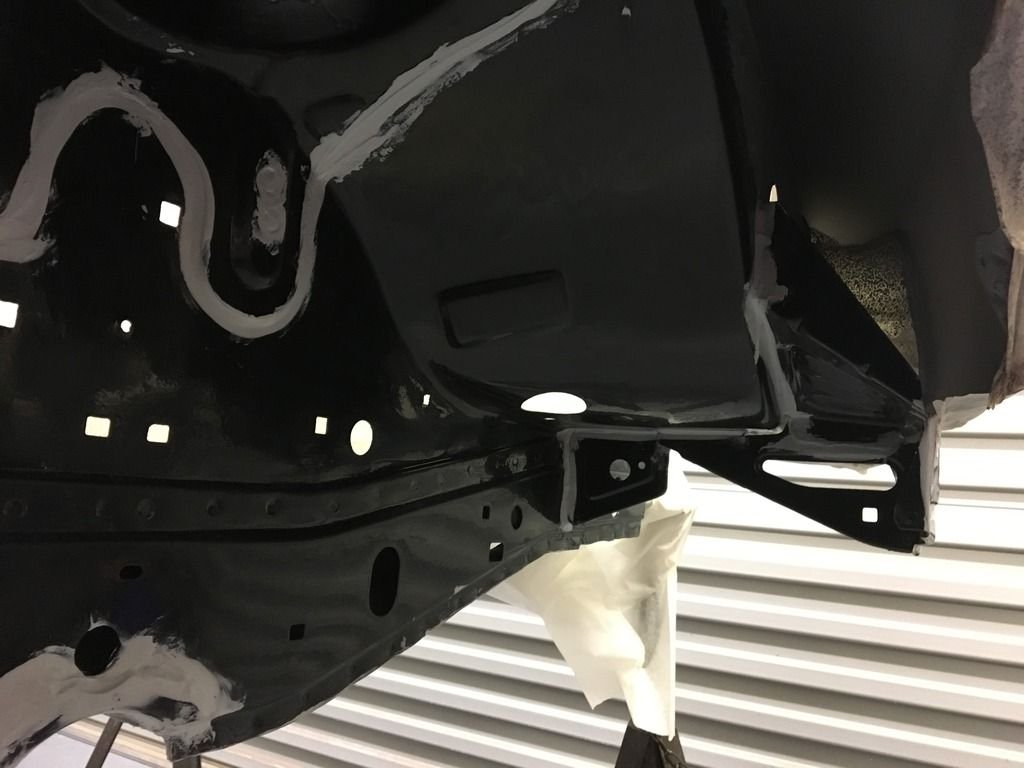

First up POR15

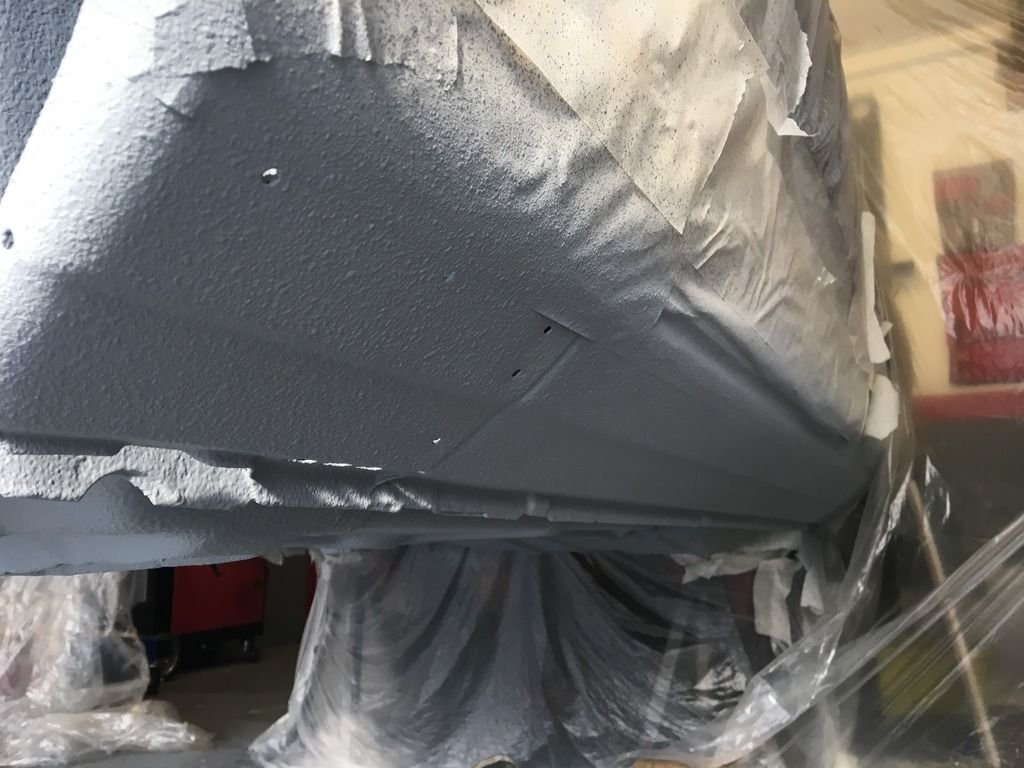

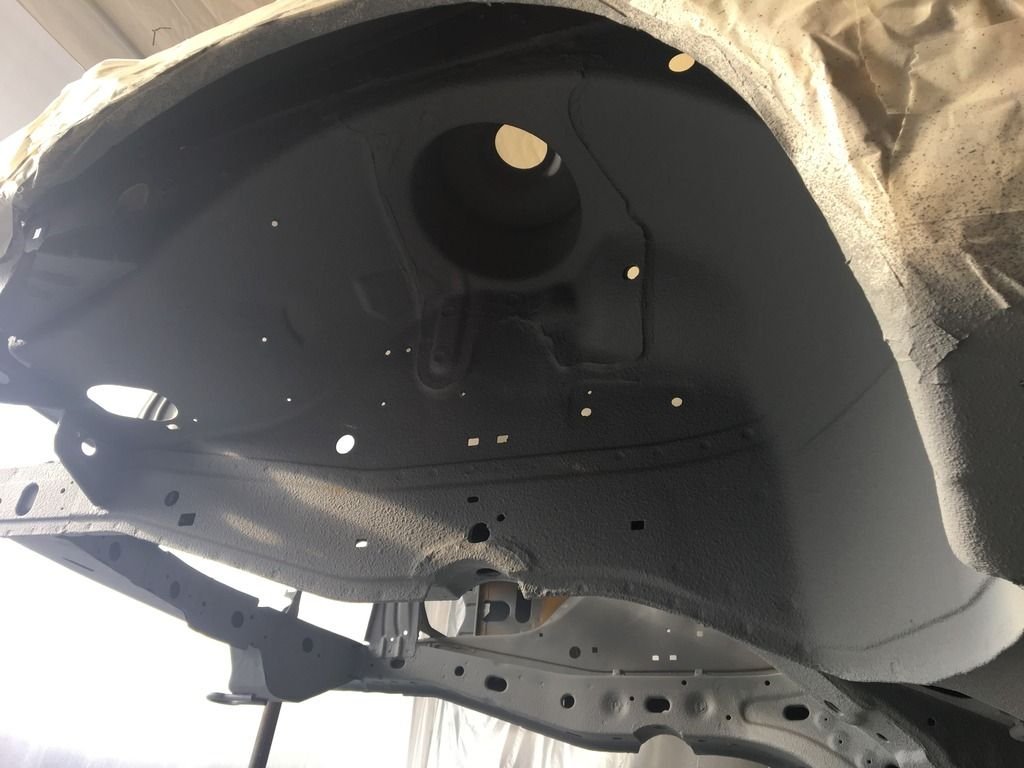

Then a coat of under seal and two coats of body colour,

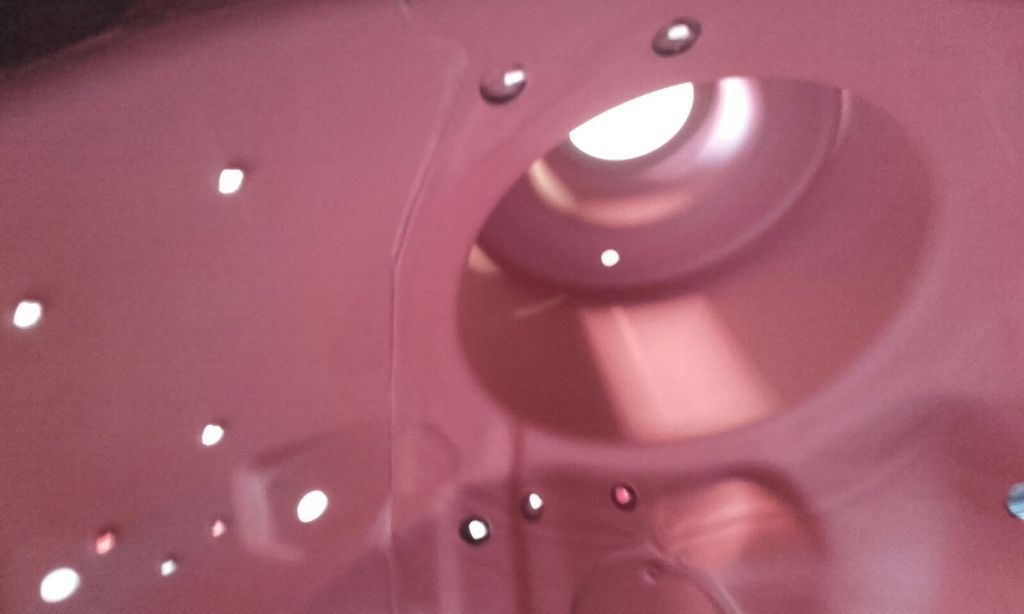

Then 2 coats a 2 pack lacquer to finish it off,
I didn't think it turned out too bad seen as though this was the first time I had tried to spray. I can say I hate wax oil it was a nightmare to get off loads of petrol then wire brush on grinder to get it back to bear metal.
Next up I thought I cant put the old bits back on so all the parts were powder coated and the bolts zinc plated. Braided brake hoses, new brake lines, bushes, bearings and brakes. More pictures,
Also painted the tank and calipers then 2x Lacquered them turned out well. I went to painted the rear Koni's up and found the drivers side had been leaking and this had caused the shocker to be notchy when pushed in and then out. They were second hand so a new set were installed.
Managed to make it to a couple of shows before the end of the session last year and then parked the car up for the winder. Whilst parked I gave it a good service and once over only to find the head gasket to have gone and a fine spray of water coming out under the inlet manifold when coming off boost.
So this year the car has been off the road, and I though time to make it the car I really want it to be. I hope the owner of this one doesn't mind but I love this one and that's where ive got my inspiration from,
So sold the RS7 and the original Shark Tooth wheels and found these,
Nice set of 18" MO6. I started to look into prices for a engine rebuild and obviously more power. I wanted a reliable 450-500Bhp so I would be looking at around 10k. Then a mate of mine dropped me a message to say he was giving up on his rebuild and was looking to strip and sell car as parts so I went to have a look and came home with everything in the pic lol,
Will go into more detail about the engine later but quickly its a 10x long stud fully forged, new T38, MSD Coil pack conversion. All tanks in pic hoses ets, Air Tec RS500 intercooler and ali rad, fans MSD engine loom and fuel pump loom. All at a very good price.
More to come........
First up POR15
Then a coat of under seal and two coats of body colour,
Then 2 coats a 2 pack lacquer to finish it off,
I didn't think it turned out too bad seen as though this was the first time I had tried to spray. I can say I hate wax oil it was a nightmare to get off loads of petrol then wire brush on grinder to get it back to bear metal.
Next up I thought I cant put the old bits back on so all the parts were powder coated and the bolts zinc plated. Braided brake hoses, new brake lines, bushes, bearings and brakes. More pictures,
Also painted the tank and calipers then 2x Lacquered them turned out well. I went to painted the rear Koni's up and found the drivers side had been leaking and this had caused the shocker to be notchy when pushed in and then out. They were second hand so a new set were installed.
Managed to make it to a couple of shows before the end of the session last year and then parked the car up for the winder. Whilst parked I gave it a good service and once over only to find the head gasket to have gone and a fine spray of water coming out under the inlet manifold when coming off boost.
So this year the car has been off the road, and I though time to make it the car I really want it to be. I hope the owner of this one doesn't mind but I love this one and that's where ive got my inspiration from,
So sold the RS7 and the original Shark Tooth wheels and found these,
Nice set of 18" MO6. I started to look into prices for a engine rebuild and obviously more power. I wanted a reliable 450-500Bhp so I would be looking at around 10k. Then a mate of mine dropped me a message to say he was giving up on his rebuild and was looking to strip and sell car as parts so I went to have a look and came home with everything in the pic lol,
Will go into more detail about the engine later but quickly its a 10x long stud fully forged, new T38, MSD Coil pack conversion. All tanks in pic hoses ets, Air Tec RS500 intercooler and ali rad, fans MSD engine loom and fuel pump loom. All at a very good price.
More to come........
Last edited by growlingchim; 07-10-2016 at 02:06 PM.
#3
PassionFord Regular
rear end restoration is great... well done mate !
cool project this one of yours!
keep us posted...
cool project this one of yours!
keep us posted...
#4
PassionFord Post Whore!!
Join Date: Dec 2009
Location: South of England
Posts: 6,728
Likes: 0
Received 560 Likes
on
522 Posts
Awesome work and lovely car. I remember when I first got mine I kept blowing offside front driveshafts until one day I jacked the engine up a fraction to do another job and it lifted right off the mounts lol. Tried another second hand set but they ripped apart within 100 miles so bought the Collins ones. Been mint since
Trending Topics
#8
Part of the Furniture
Join Date: Nov 2009
Location: Tunbridge wells Kent
Posts: 176
Likes: 0
Received 16 Likes
on
15 Posts
Hi All
Very good work on the resto I have repainted the under side of my 4x4 Cosworth and am just starting to piece it back together again.
There must be something about the M6 I took my 2wd to MSD a few weeks back and must say they are one of the most profesional companys I have ever used .
I left home at 3-15am from Tunbridge Wells in Kent and drove quite gently to MSD( as was concerned about lean mixtures) for a 9-30 booking .
Had an interesting day and got 308 bhp and 305 lb ft of torque so all good untill I got onto the M6, had only done 15miles when we stoped with Altenator failure.
Got back home at 2-45am the next day.
We used the AA to get us off the motorway and the RS owners brake down service to transport us home who were great!
Cheers Tim.
Very good work on the resto I have repainted the under side of my 4x4 Cosworth and am just starting to piece it back together again.
There must be something about the M6 I took my 2wd to MSD a few weeks back and must say they are one of the most profesional companys I have ever used .
I left home at 3-15am from Tunbridge Wells in Kent and drove quite gently to MSD( as was concerned about lean mixtures) for a 9-30 booking .
Had an interesting day and got 308 bhp and 305 lb ft of torque so all good untill I got onto the M6, had only done 15miles when we stoped with Altenator failure.
Got back home at 2-45am the next day.
We used the AA to get us off the motorway and the RS owners brake down service to transport us home who were great!
Cheers Tim.
#10
15000
Thread Starter
I have painted it body colour mate, but it's not trailer queen. She gets used as often as I can that how it should be 👍
#11
Passionford Addict
Your doing a cracking job on this mate I take it when the engine comes out you will be doing the rest of the underside? I will be keeping an eye out for more updates
#13
PassionFord Post Troll
Great read and deffo one of my fav colours for a Saff. Car looks fantastic and love it on the MO's!
My mate has K51 BMO but it's not a Cossie, just a 2.0 Sierra.
My mate has K51 BMO but it's not a Cossie, just a 2.0 Sierra.
#14
15000
Thread Starter
Ive done upto the transmission tunnel so far, the next step witch ill be starting soon is engine an box out and strip the whole front end. Then bare metal the rest of the floor, sills in and outer, bulk head and front arches before paining them all to match. Then back in with all the new parts.
#15
PassionFord Post Troll
Good job mate I prefer the comps as well
#16
15000
Thread Starter
Well thanks to everyone for your kid words. Its taken so me hard work and alot of time to get it to this point and even more to come to finish it but its all worth it when you hear peoples comments on you work so thanks again to you all and hope you enjoy as ill be starting the work this week
So for another update, my last drive of the car before i took it off the road i was on some great Yorkshire country roads but at times when pushing off a bit i was experiencing so brake fade. Now knowing i have the new engine to go in and more power i knew it would only get worse and so time to look into brake conversions.
So i wanted to try something different to the norm, i have seen this idea on a Escort Cosworth once before and offered by Martin Rayland for 2WD Saphs.

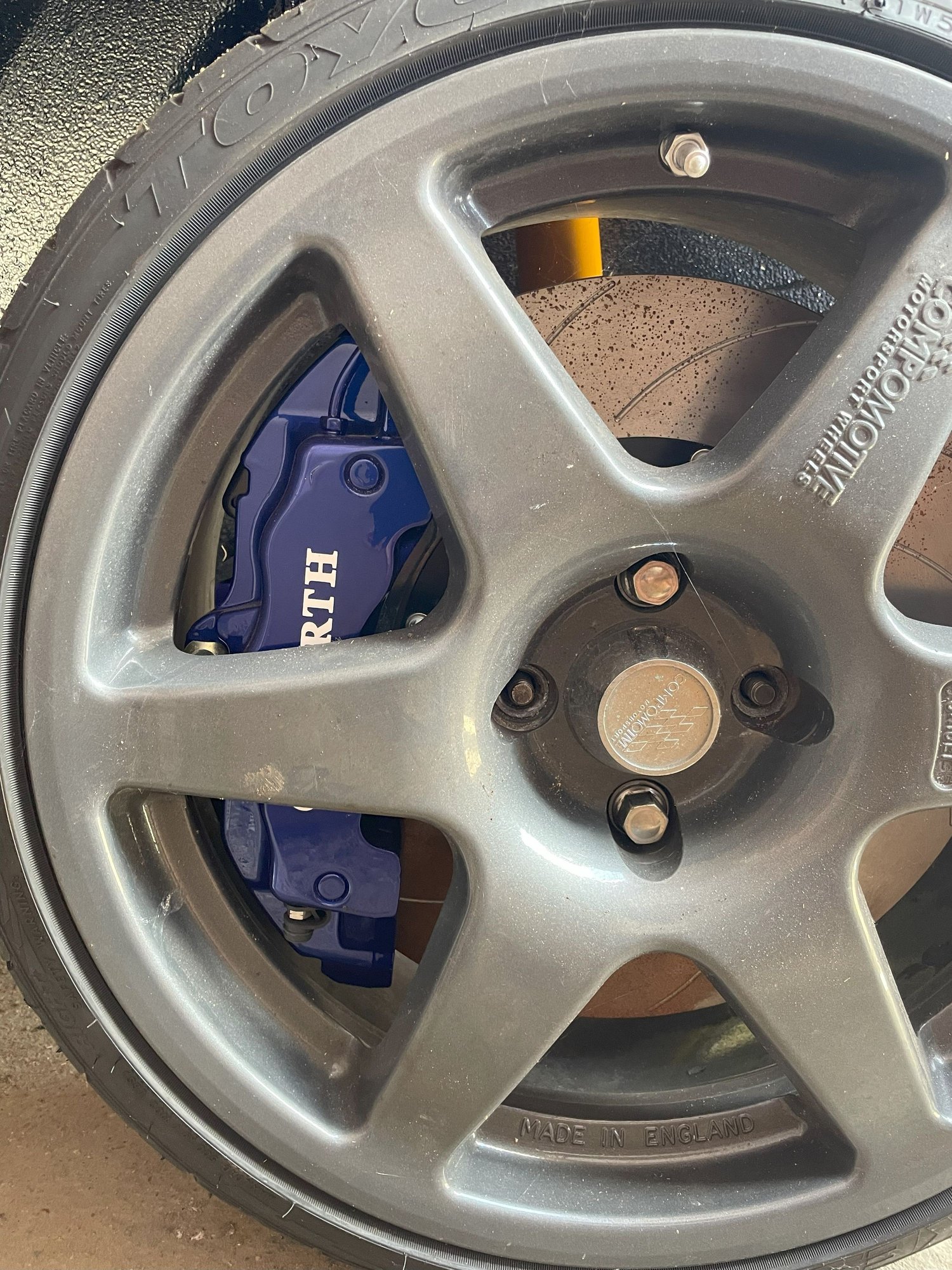

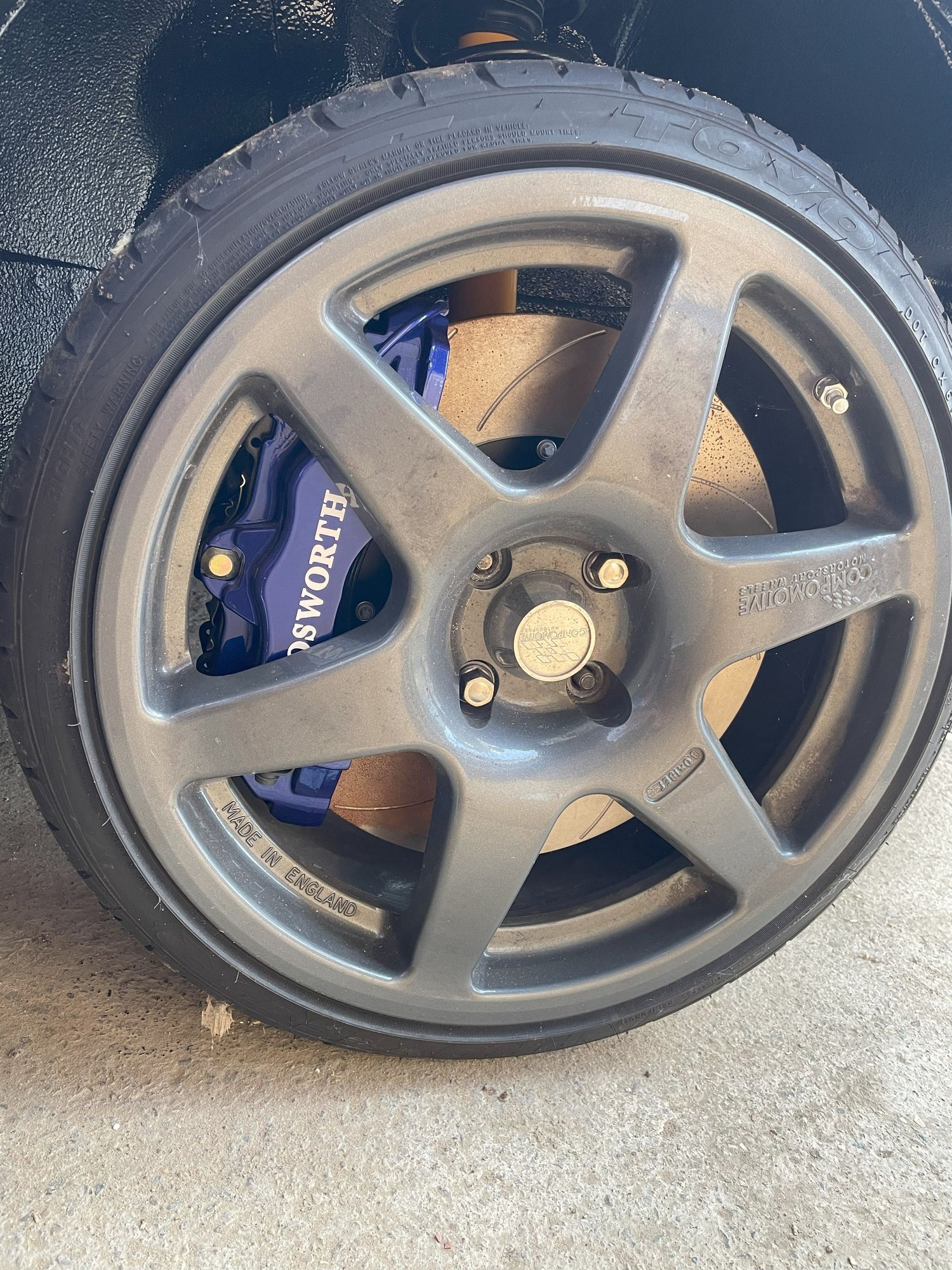

So the idea is to use Porsche Cayenne Brembo front calipers, these will be mounted on some custom made brackets from Martin Rayland along with custom bells and AP Rotors. The front brakes will be 362mm when finished along with the 6 pot calipers.
So i bought these...... They are huge!
and this will be the kit from Martin to fit the fronts,
and under the Comp MO6's
Ive also decided to go for rear Brakes from Rayland too so the Reyland Sport Rear 325mm Disc Kit will be bought at the same time,
and thought i may as well go for the Hydro Clutch conversion at the same time, so this will be part of the order too,
I have also just ordered the following from Demon Tweeks,
2x Front Koni Shockers
Full front end Poly Bush Kit
2x Poly Bush front spring bushes
Full Mongoose Exhaust System with 4" Outward Rolled tail pipe
Ferodo DS2500 Front Porsche Pads
Bosch 044 Fuel Pump
Stack Pro Oil Temp Gauge
Stack Pro Oil Pressure Gauge
Stack Pro Boost Gauge
That's all for now fooks i will update with more pictures when the parts arrive, and stay tune for the strip down starting soon!
So for another update, my last drive of the car before i took it off the road i was on some great Yorkshire country roads but at times when pushing off a bit i was experiencing so brake fade. Now knowing i have the new engine to go in and more power i knew it would only get worse and so time to look into brake conversions.
So i wanted to try something different to the norm, i have seen this idea on a Escort Cosworth once before and offered by Martin Rayland for 2WD Saphs.
So the idea is to use Porsche Cayenne Brembo front calipers, these will be mounted on some custom made brackets from Martin Rayland along with custom bells and AP Rotors. The front brakes will be 362mm when finished along with the 6 pot calipers.
So i bought these...... They are huge!
and this will be the kit from Martin to fit the fronts,
and under the Comp MO6's
Ive also decided to go for rear Brakes from Rayland too so the Reyland Sport Rear 325mm Disc Kit will be bought at the same time,
and thought i may as well go for the Hydro Clutch conversion at the same time, so this will be part of the order too,
I have also just ordered the following from Demon Tweeks,
2x Front Koni Shockers
Full front end Poly Bush Kit
2x Poly Bush front spring bushes
Full Mongoose Exhaust System with 4" Outward Rolled tail pipe
Ferodo DS2500 Front Porsche Pads
Bosch 044 Fuel Pump
Stack Pro Oil Temp Gauge
Stack Pro Oil Pressure Gauge
Stack Pro Boost Gauge
That's all for now fooks i will update with more pictures when the parts arrive, and stay tune for the strip down starting soon!
Last edited by growlingchim; 07-10-2016 at 02:21 PM.
#17
PassionFord Post Troll
Some excellent mods mate glad it's not being kept standard, just improved in places where they all need it.
Good choice on front brakes that's the ones I'm eyeing up for mines, how much did you pay for calipers? Think I added it up to be about Ł1300 all in which is good for 360mm 6 pots.
Good choice on front brakes that's the ones I'm eyeing up for mines, how much did you pay for calipers? Think I added it up to be about Ł1300 all in which is good for 360mm 6 pots.
#18
15000
Thread Starter
Some excellent mods mate glad it's not being kept standard, just improved in places where they all need it.
Good choice on front brakes that's the ones I'm eyeing up for mines, how much did you pay for calipers? Think I added it up to be about Ł1300 all in which is good for 360mm 6 pots.
Good choice on front brakes that's the ones I'm eyeing up for mines, how much did you pay for calipers? Think I added it up to be about Ł1300 all in which is good for 360mm 6 pots.
#19
15000
Thread Starter
So today the parts arrived from Demon Tweeks, felt like Christmas, ill let the pictures do the talking,
Stack Gauges
Poly Bushes
Front Koni's
Front Pads for the Porsche Calipers
Bosch 044 Fuel Pump
MSD Fuel Pump Loom
The Porsche Ceyenne Calipers again
A set of mint original sierra mud flaps never been fitted
And the Mongoose Exhaust system
So next up for parts is the bits from Rayland and some Alloy Side Skirt clips, anyone recommend the best place to get them from?
And i should be starting the tear down on Saturday so ill have the next update then
Stack Gauges
Poly Bushes
Front Koni's
Front Pads for the Porsche Calipers
Bosch 044 Fuel Pump
MSD Fuel Pump Loom
The Porsche Ceyenne Calipers again
A set of mint original sierra mud flaps never been fitted
And the Mongoose Exhaust system
So next up for parts is the bits from Rayland and some Alloy Side Skirt clips, anyone recommend the best place to get them from?
And i should be starting the tear down on Saturday so ill have the next update then
Last edited by growlingchim; 07-10-2016 at 02:56 PM.
#22
15000
Thread Starter

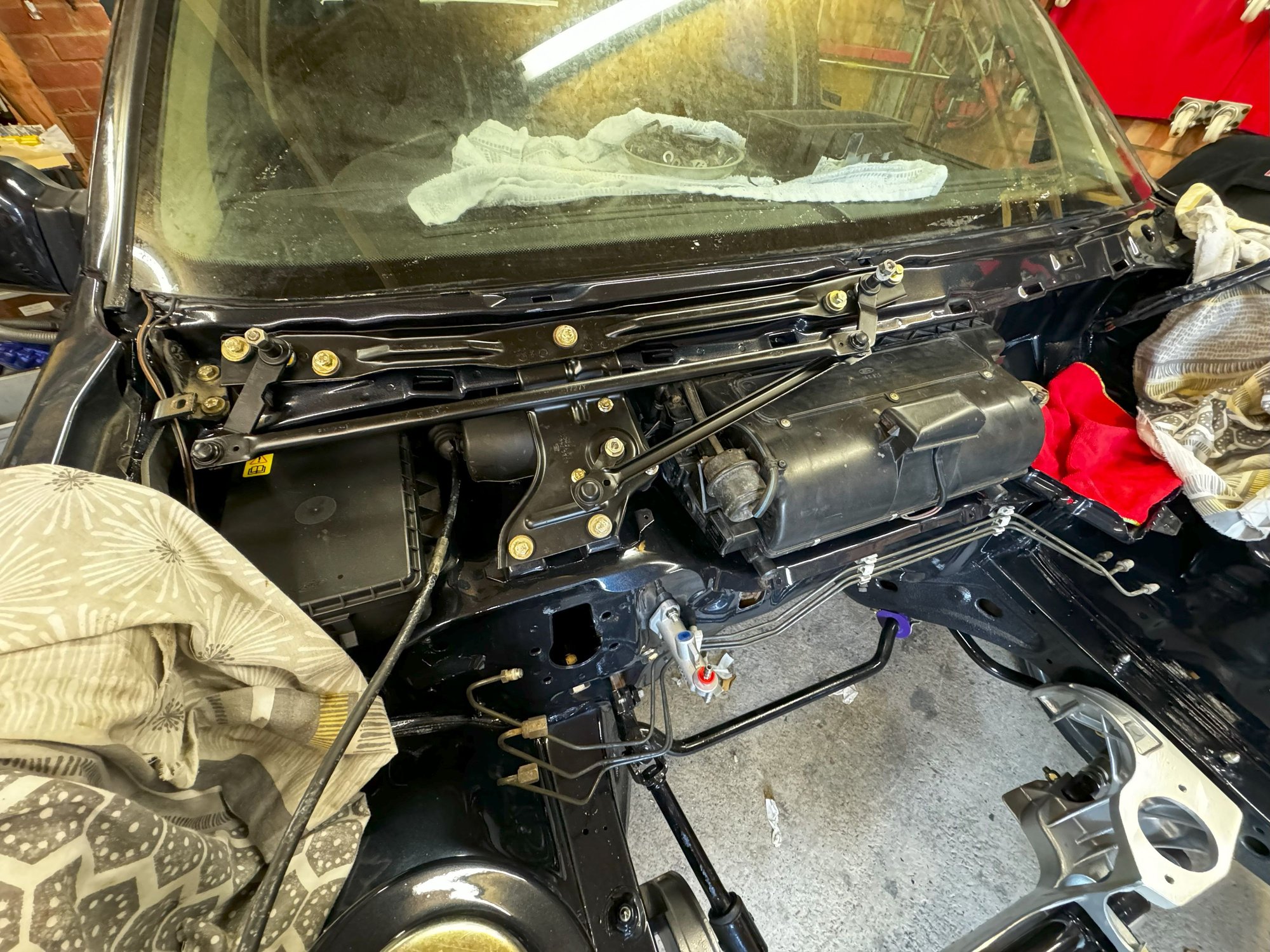

So ive started on dismantling the engine bay, this is how it started
So my car has air con and i plan to keep it as although the car is going to be modified i still want to keep it with as many of the original features.
I know using the RS500 Intercooler means this takes up the space where the air con radiator would normally sit, but ive seen on Martin Rayland RS500 build that he used a air con radiator from a MG ZS180 and mounted it in between the intercooler and radiator. So whilst i still have the engine in i wanted to mock this up because if i need to move the mounting points it would be better to do this now rather than once it's painted.
The RS500 intercooler in place,
Few pictures from Martins thread as to how the MG radiator should sit (ive ordered one and waiting on it being delivered)
How close it should fit to the radiator
And then i would just have to have pipes made to feed it,
Think i might purchase a pair of slim line fans and fan mount from Auto Specialists to help with maximising space between the fans and front pulleys?
Im now just about ready to take the engine out, just waiting on MG radiator coming to mock up then ill have another update with lots more progress and pictures.
So my car has air con and i plan to keep it as although the car is going to be modified i still want to keep it with as many of the original features.
I know using the RS500 Intercooler means this takes up the space where the air con radiator would normally sit, but ive seen on Martin Rayland RS500 build that he used a air con radiator from a MG ZS180 and mounted it in between the intercooler and radiator. So whilst i still have the engine in i wanted to mock this up because if i need to move the mounting points it would be better to do this now rather than once it's painted.
The RS500 intercooler in place,
Few pictures from Martins thread as to how the MG radiator should sit (ive ordered one and waiting on it being delivered)
How close it should fit to the radiator
And then i would just have to have pipes made to feed it,
Think i might purchase a pair of slim line fans and fan mount from Auto Specialists to help with maximising space between the fans and front pulleys?
Im now just about ready to take the engine out, just waiting on MG radiator coming to mock up then ill have another update with lots more progress and pictures.
Last edited by growlingchim; 10-10-2016 at 10:30 AM.
#24
15000
Thread Starter
#26
15000
Thread Starter
Ive been meaning to update this for the last couple of weeks so here goes.

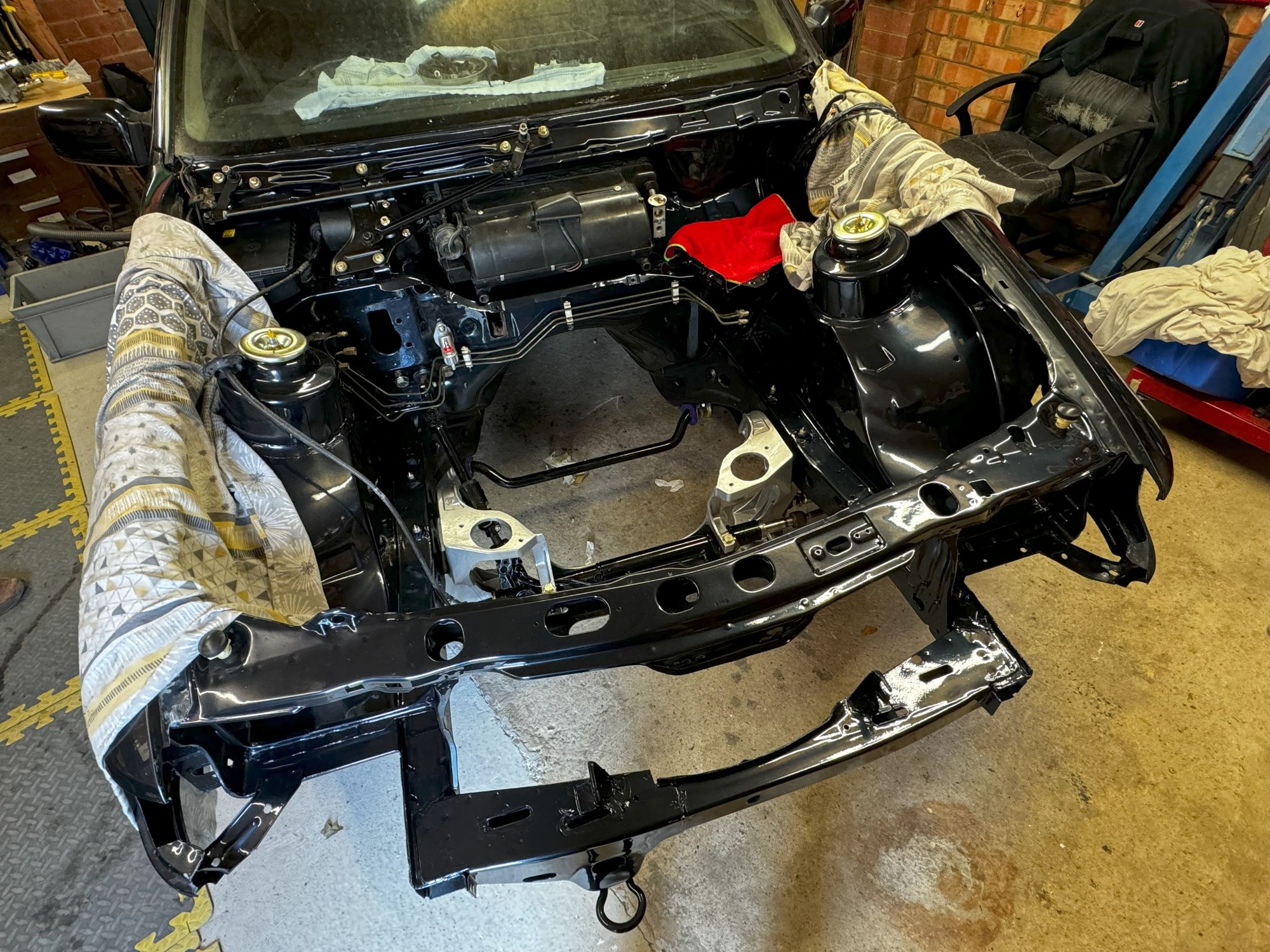

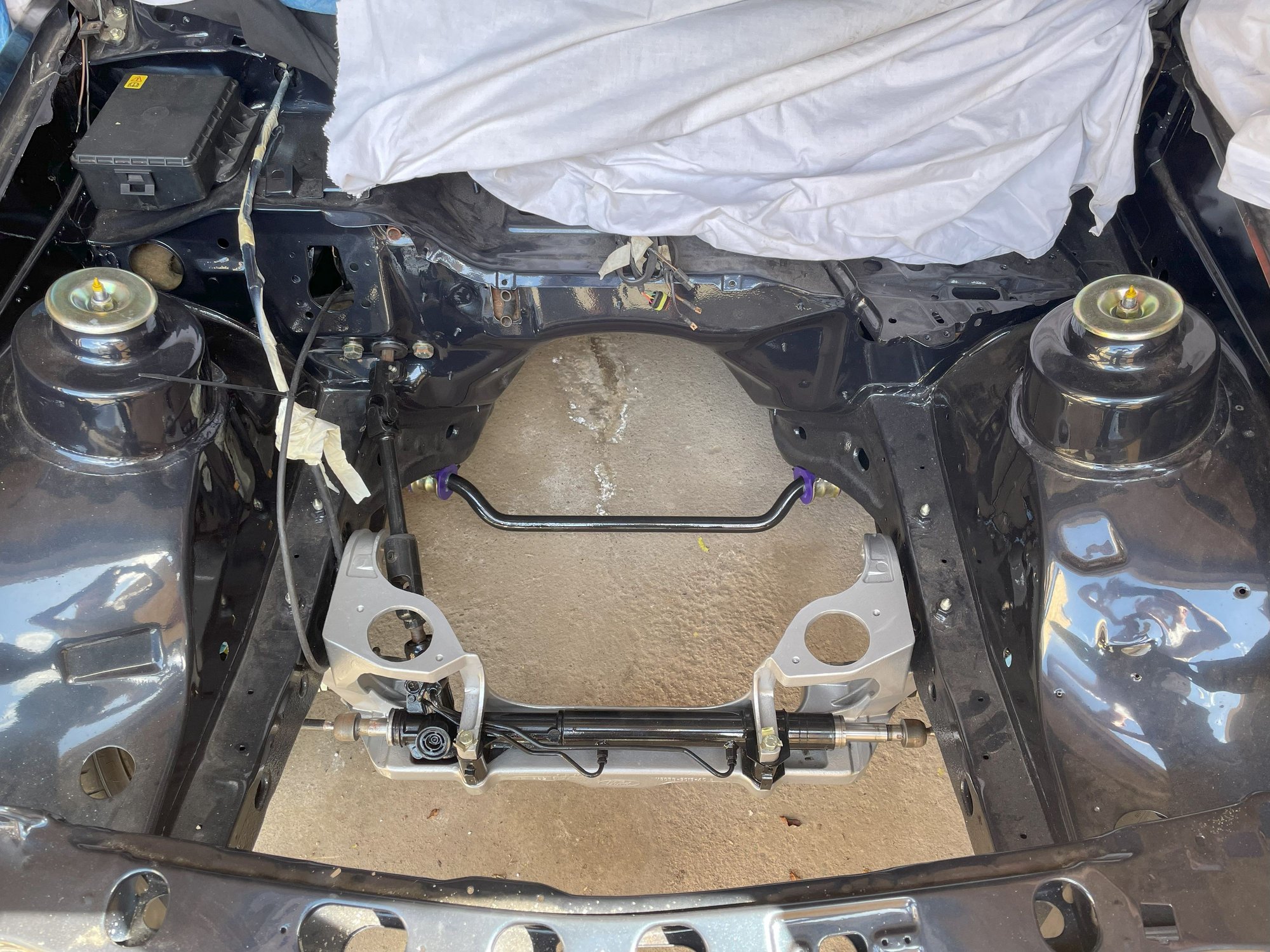

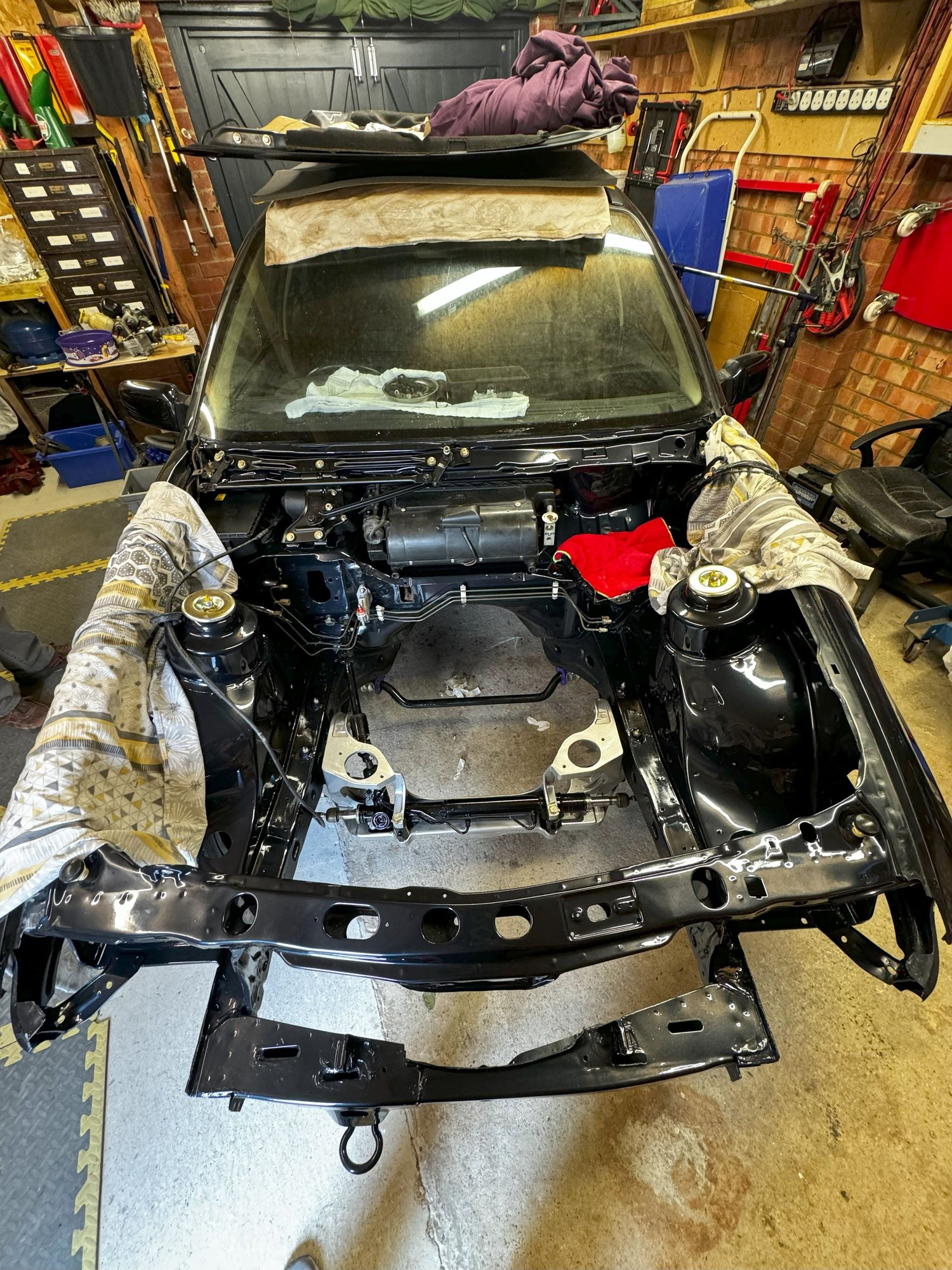

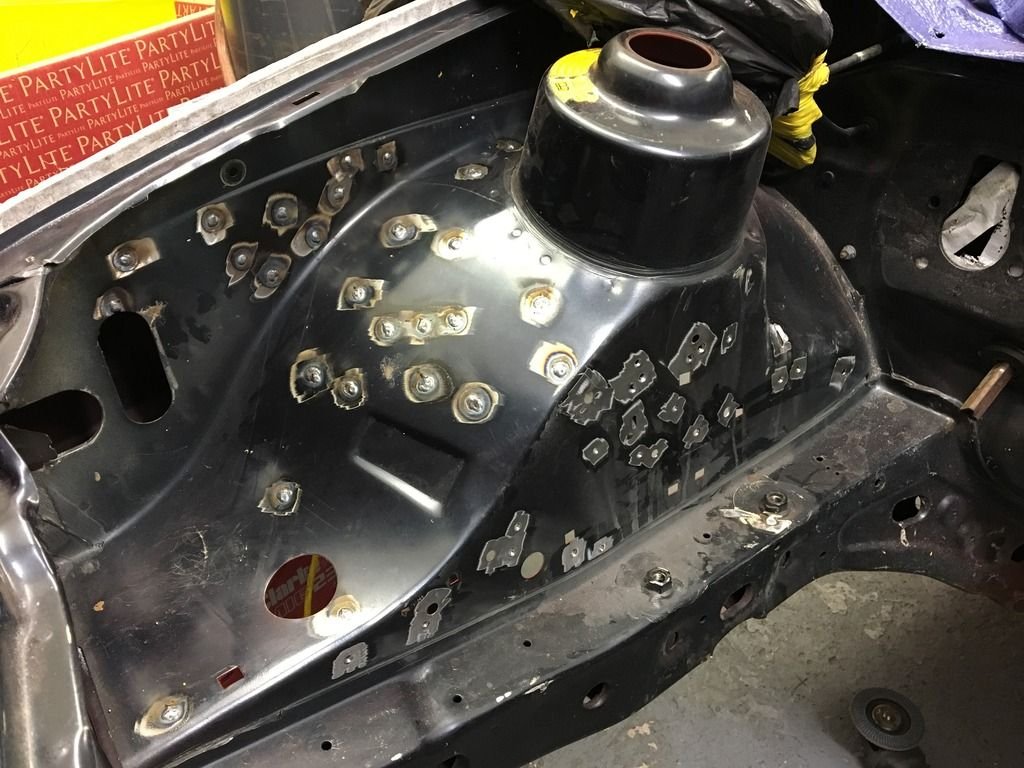

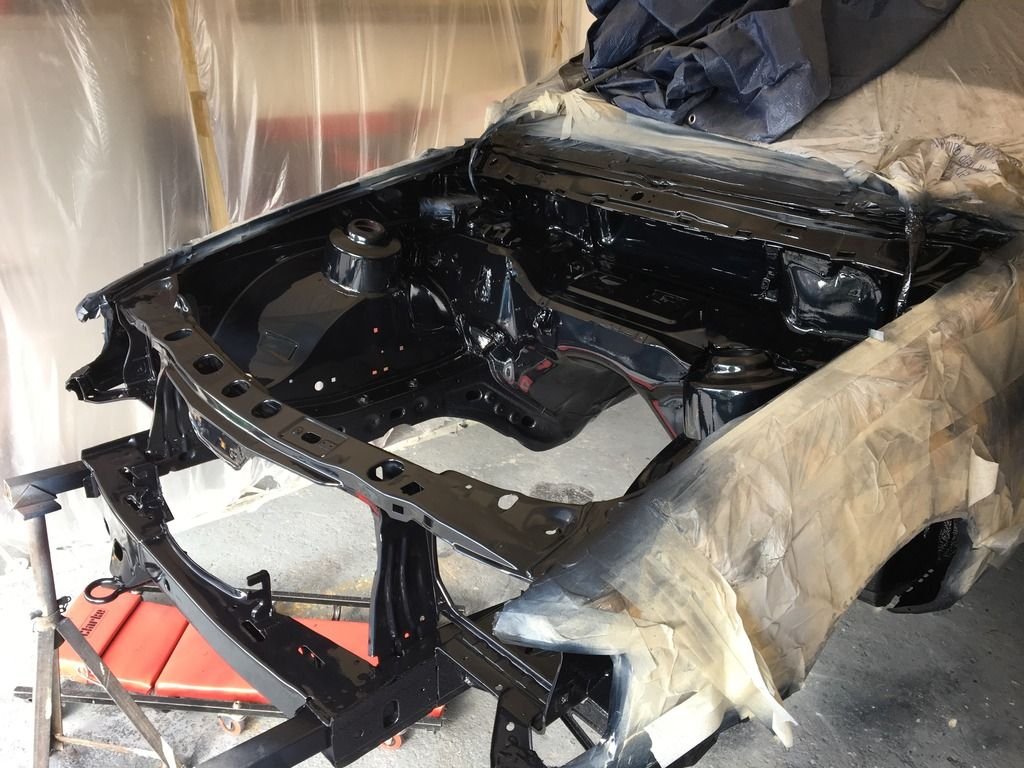

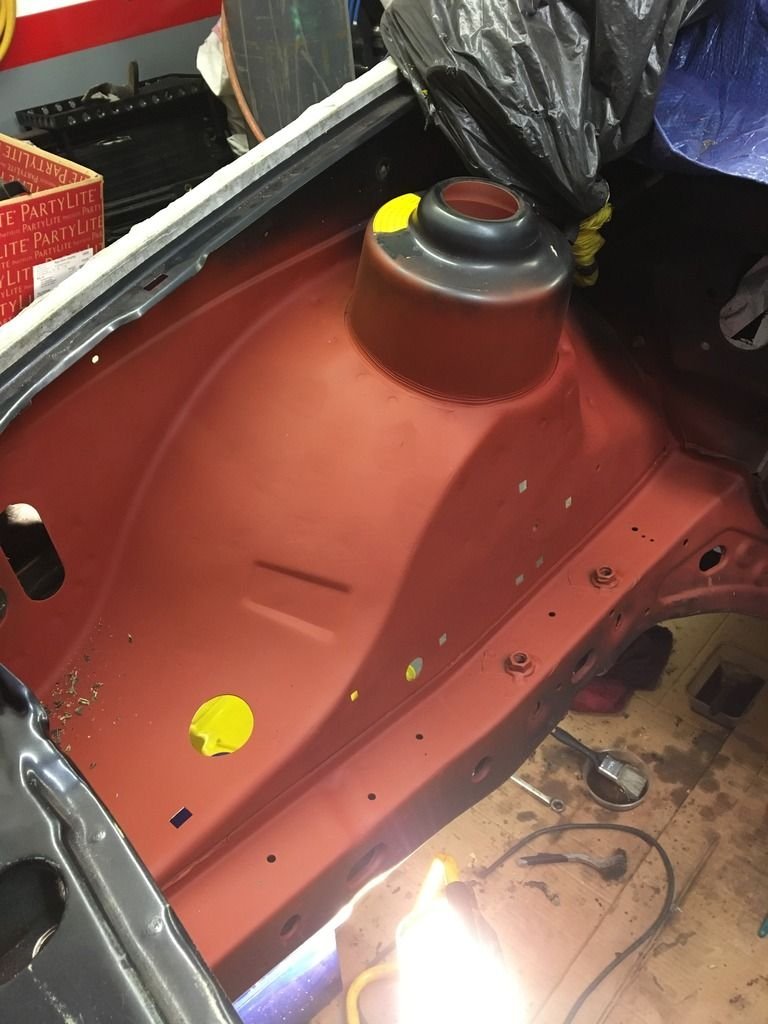

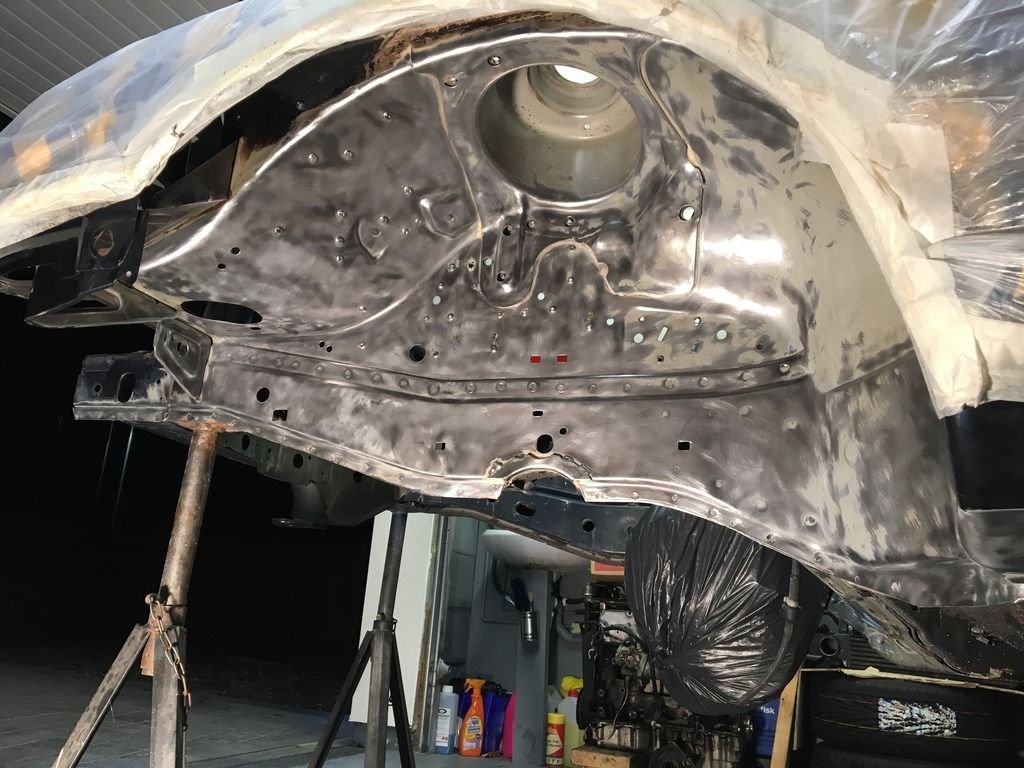

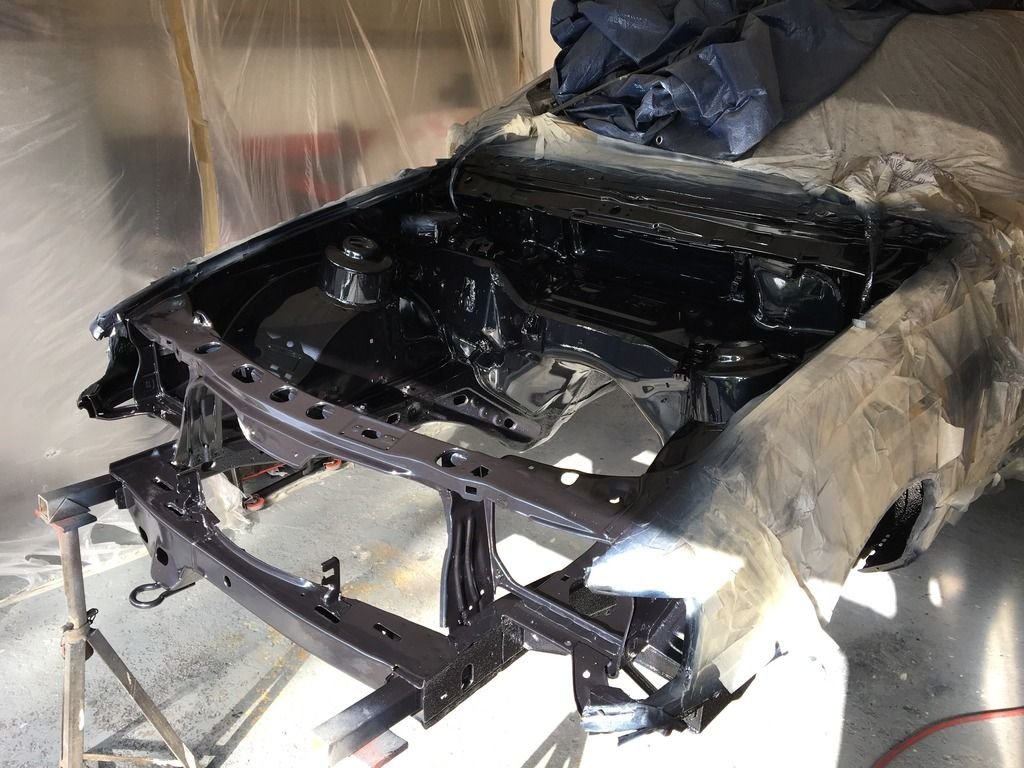

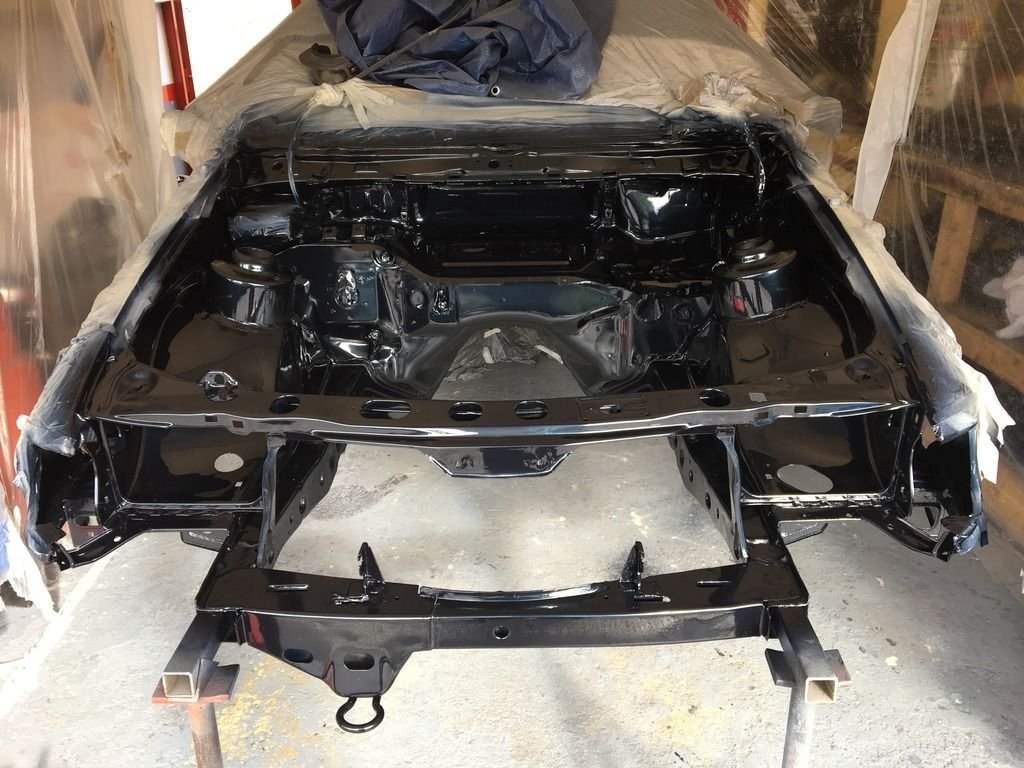

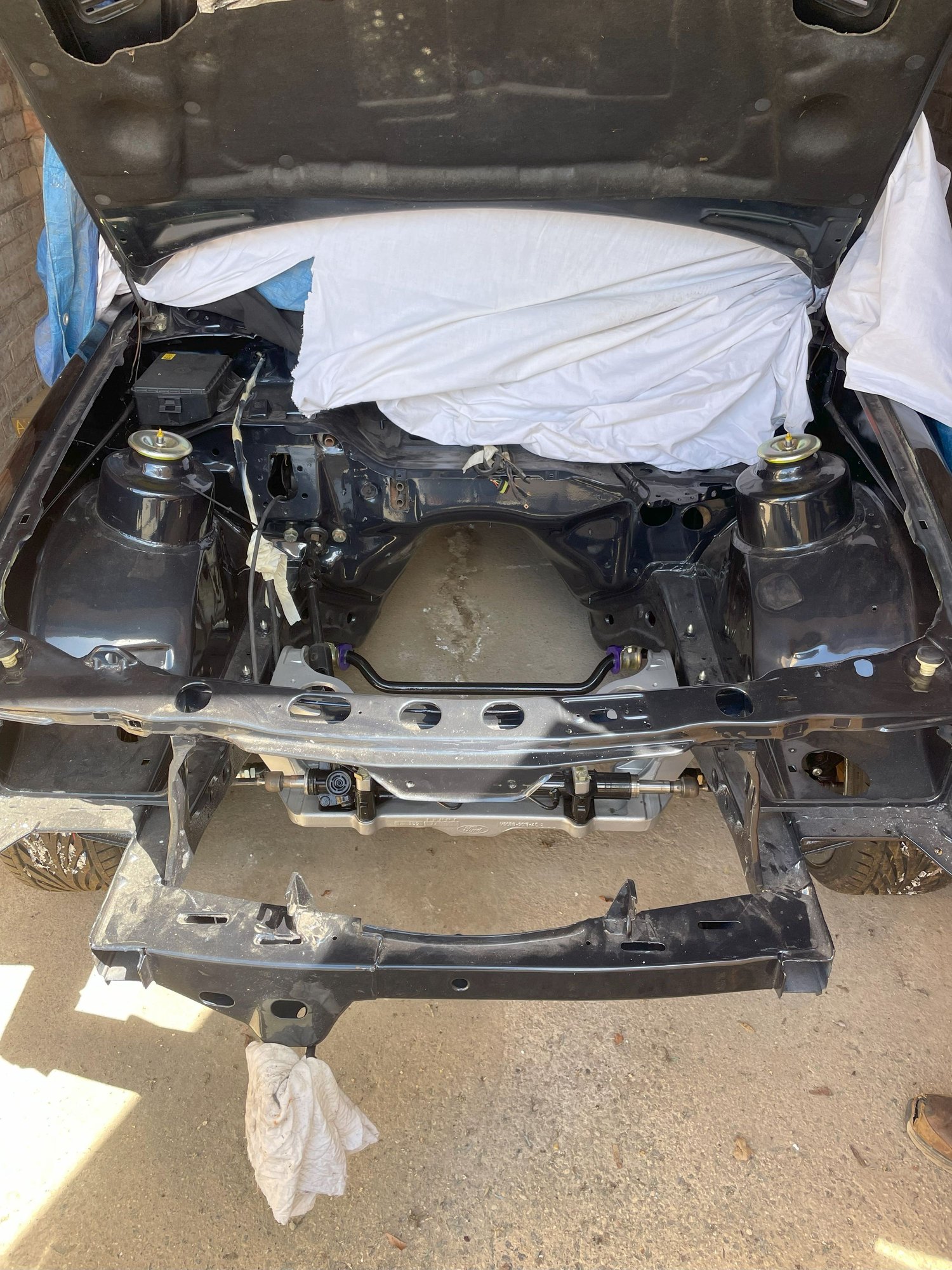

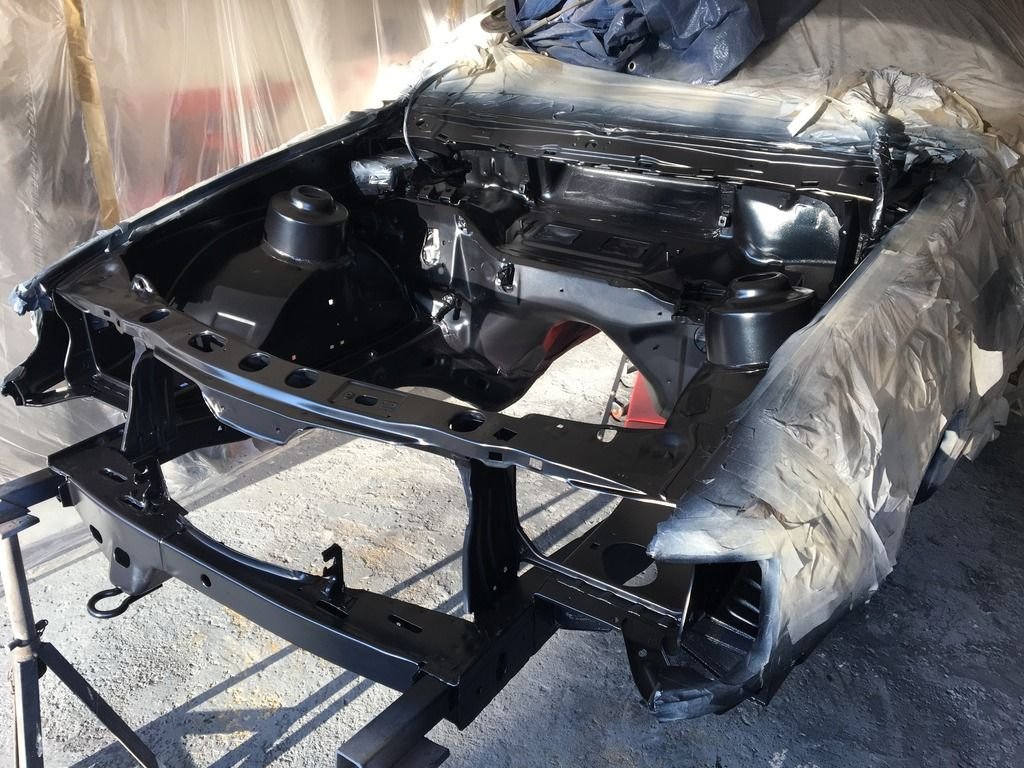

So ive now got the engine out, bay stripped and full front end, bay and underneath de-greased and jet washed. The amount of shit that came off it was unbelievable. Still some stubborn wax oil and underseal to remove from places, I hate trying to remove wax oil and underseal but ive got to say it has really done its job.
Ill leave the pictures to do the talking.
Aux loom is left bagged up on the right. Once the engine was out I managed to get a good look at it I could see the difference between old and new. My engine having Air Con has a very different setup, with the PAS Pump being on the left had side instead of the conversional location on the right. This is where the Air Con pump is located.
As you can see in the pic there's a cat bracket on the right and left which locates the PAS and Air Con pumps in their locations and a steel brace along the bottom. These have all been removed for powder coat before been fitted to the new engine.
Next up was to pull the car out and give it a good clean.
Needless to say we got a few funny looks form people passing haha
The condition of the shell is unbelievable really, there was no rust or and signs of welding on the rear end when I did that last year. Ans now to have the rest striped and find only minor signs of surface rust which will easily clean up with a flap disk is really good news. Even the sills are spotless, inner and outer are perfect.

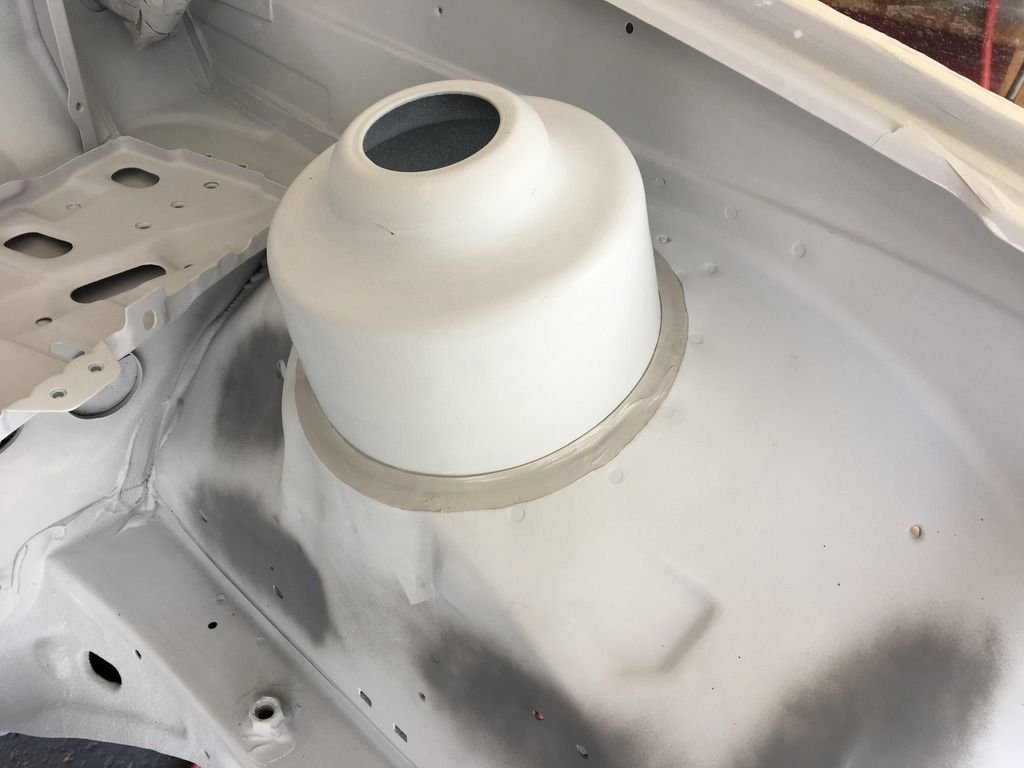

So next step now its clean is to get it setup on stands back in the garage and got to town on the strip back. The inner and out sills will be taken back to bare metal to be 100% everything is treated, floors will be also stripped back and then new seam sealer and stone chip. The bay im in a little bit or a dilemma with, its needs minimal prep work but im undecided whether to weld up unwanted holes. What peoples thoughts?
Also after some advice, what have people use to replace the heat/sound deadening on the bulkhead? Mine just turns to dust in your hands in places, ive managed to keep it together as much as I can to get a template from but any advice on what to use would be great.
Well ill be cracking on with more this week and will update again soon.
Thanks for reading
So ive now got the engine out, bay stripped and full front end, bay and underneath de-greased and jet washed. The amount of shit that came off it was unbelievable. Still some stubborn wax oil and underseal to remove from places, I hate trying to remove wax oil and underseal but ive got to say it has really done its job.
Ill leave the pictures to do the talking.
Aux loom is left bagged up on the right. Once the engine was out I managed to get a good look at it I could see the difference between old and new. My engine having Air Con has a very different setup, with the PAS Pump being on the left had side instead of the conversional location on the right. This is where the Air Con pump is located.
As you can see in the pic there's a cat bracket on the right and left which locates the PAS and Air Con pumps in their locations and a steel brace along the bottom. These have all been removed for powder coat before been fitted to the new engine.
Next up was to pull the car out and give it a good clean.
Needless to say we got a few funny looks form people passing haha

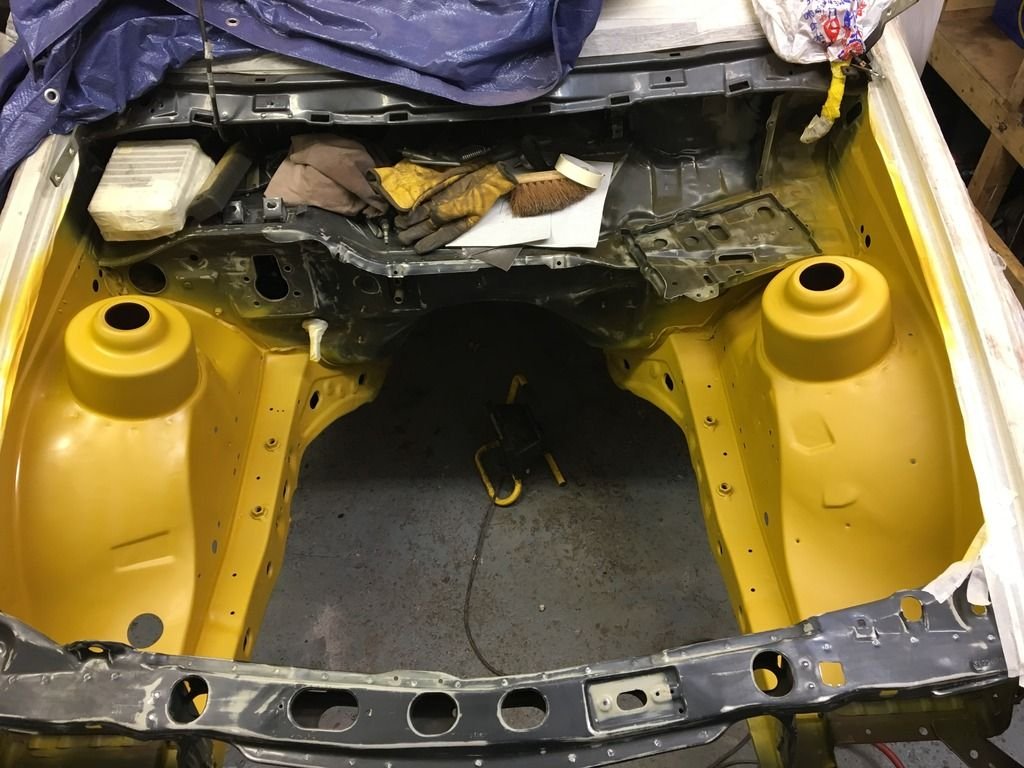

The condition of the shell is unbelievable really, there was no rust or and signs of welding on the rear end when I did that last year. Ans now to have the rest striped and find only minor signs of surface rust which will easily clean up with a flap disk is really good news. Even the sills are spotless, inner and outer are perfect.

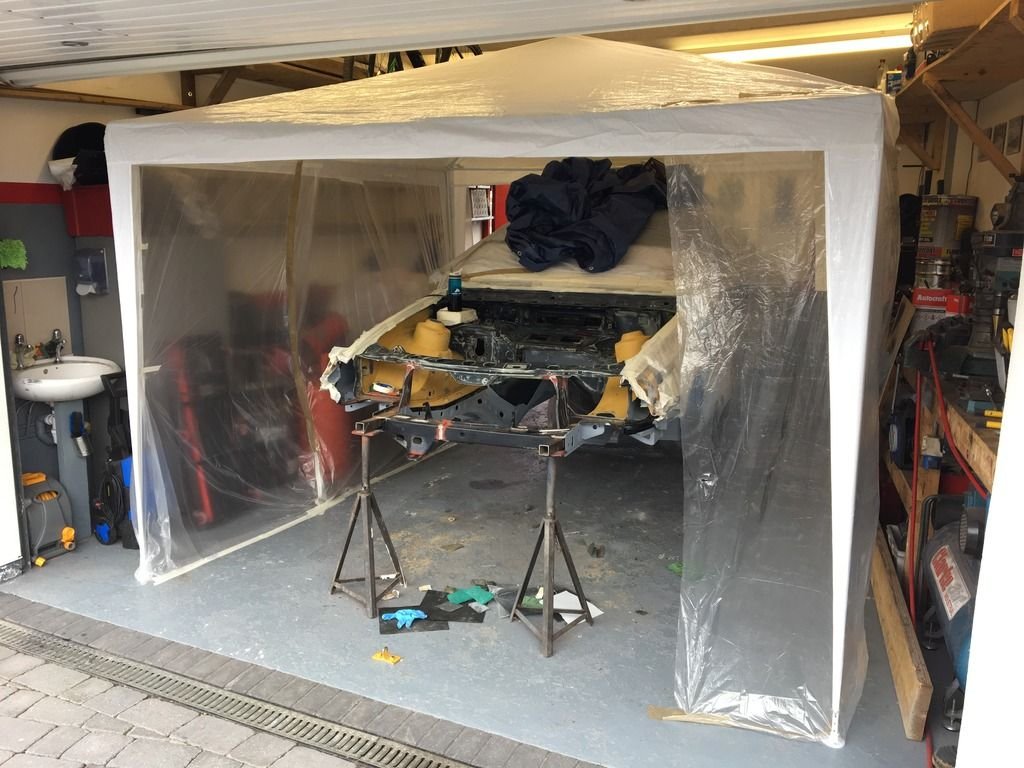

So next step now its clean is to get it setup on stands back in the garage and got to town on the strip back. The inner and out sills will be taken back to bare metal to be 100% everything is treated, floors will be also stripped back and then new seam sealer and stone chip. The bay im in a little bit or a dilemma with, its needs minimal prep work but im undecided whether to weld up unwanted holes. What peoples thoughts?
Also after some advice, what have people use to replace the heat/sound deadening on the bulkhead? Mine just turns to dust in your hands in places, ive managed to keep it together as much as I can to get a template from but any advice on what to use would be great.
Well ill be cracking on with more this week and will update again soon.
Thanks for reading
#27
PassionFord Regular
you're doin' great mate...
after that she'll have a very long life!
keep us posted...
after that she'll have a very long life!
keep us posted...
Thread
Thread Starter
Forum
Replies
Last Post
SMILER258
Restorations, Rebuilds & Projects.
36
28-09-2015 09:04 AM
jon_ross
Restorations, Rebuilds & Projects.
41
07-06-2014 09:19 AM
jon_ross
Restorations, Rebuilds & Projects.
20
18-04-2014 12:24 PM
Ben26
Restorations, Rebuilds & Projects.
31
29-04-2013 03:33 PM
