12 1/2 year resto project. S1 RS Turbo Cabriolet
#1
Wahay!! I've lost my Virginity!!
Thread Starter
12 1/2 year resto project. S1 RS Turbo Cabriolet
Hi Guys,
I am a member of this forum for many years now, but I never showed my project to you.
So a quick view of what I've been up to for the past 11 3/4 (!) years.
I started this project back in Februari 2004. I bought a Mk3 cabriolet and wanted to do a full concours resto on it. It had to be a Turbo conversion also!
Looking back at this decision, it would be a better, smarter and cheaper option to have restored a real S1 turbo......but don't worry, no regrets about doing a replica.
I build this car with the filosophy of "how would the ultimate S1 cabriolet look like, if Ford had build it"
So enough talking, here are the pic's:
Full resto story is on www.escort-cabrio.nl. Site is in dutch, but google translate will help you guys ubderstanding most of it.......
in the beginning:
Removing Panels:

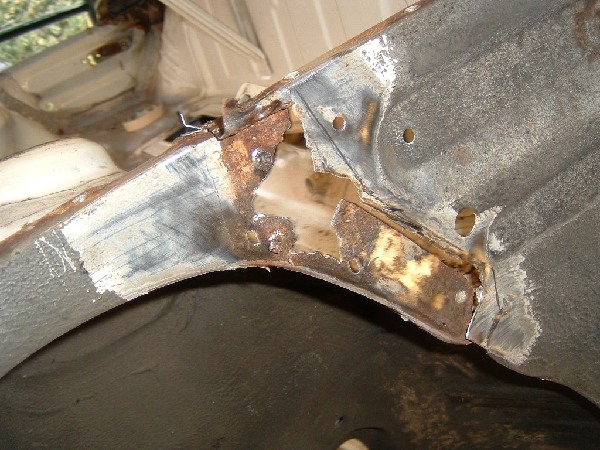

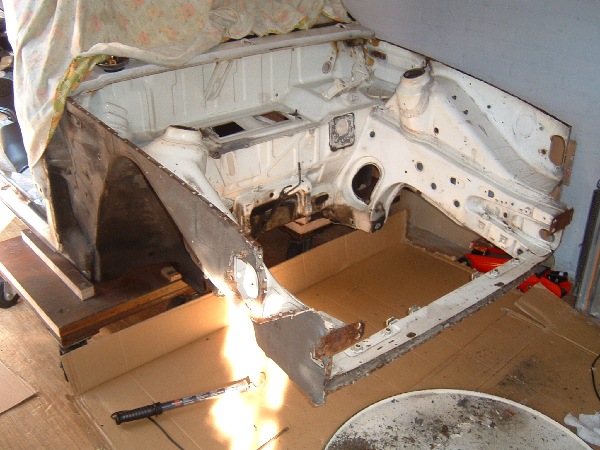

Inner wings crusty:

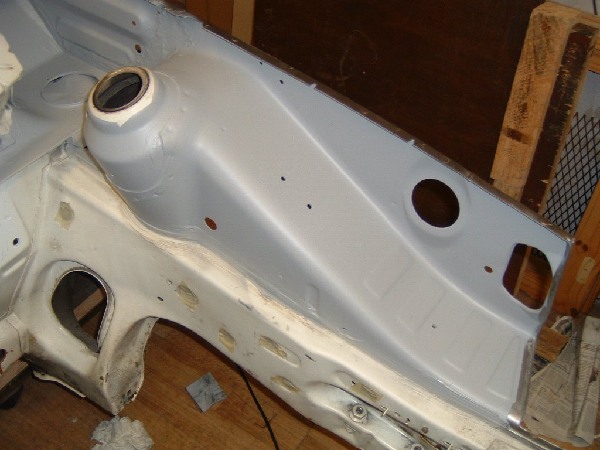

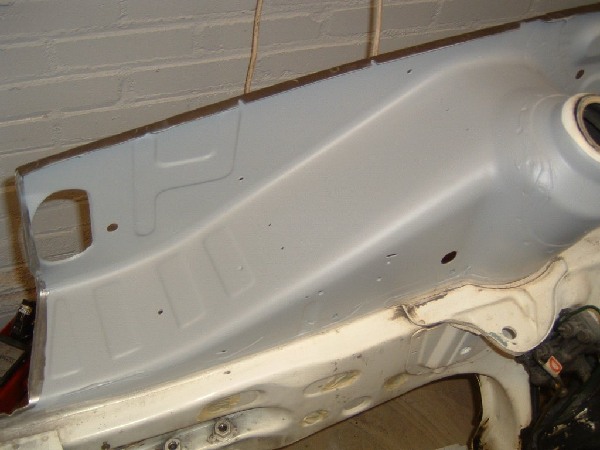

Inner Wings Sorted, unused holes welded up:

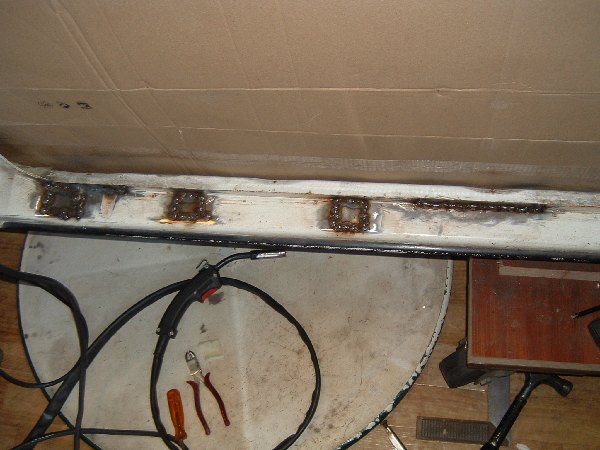

Small patches:
found a mint interior:

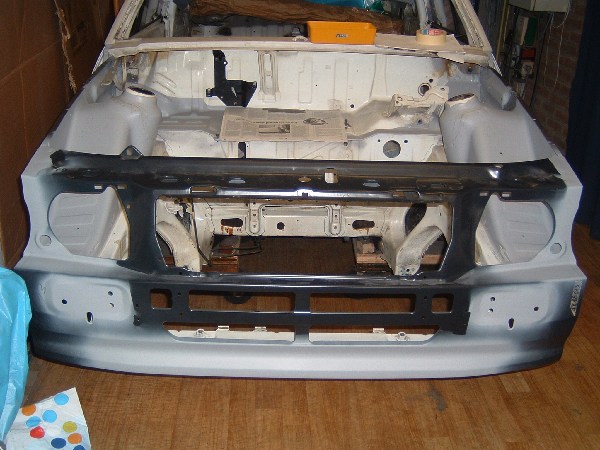

New panels (all Original Ford's):

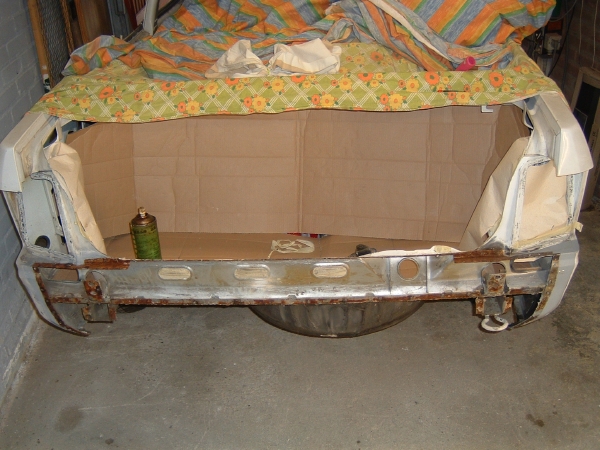

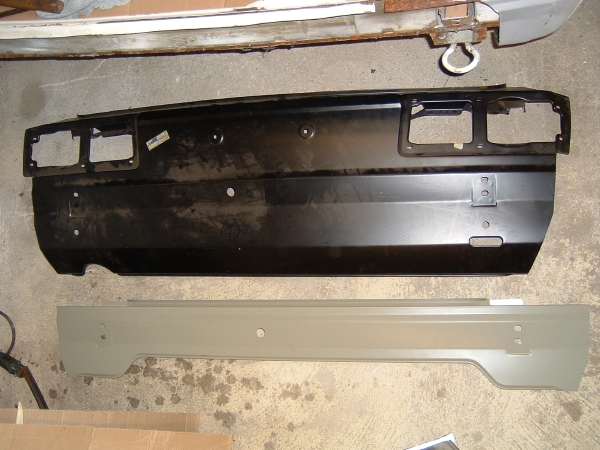

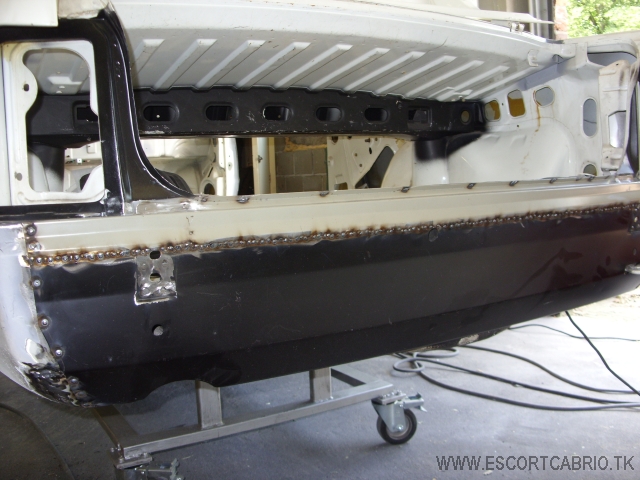

Rear Panel was rotten:
New panels was not available for MK3 cabriolet, so used a MK4 cabrio and MK3 hatchback panel (all original ford) to build my own:

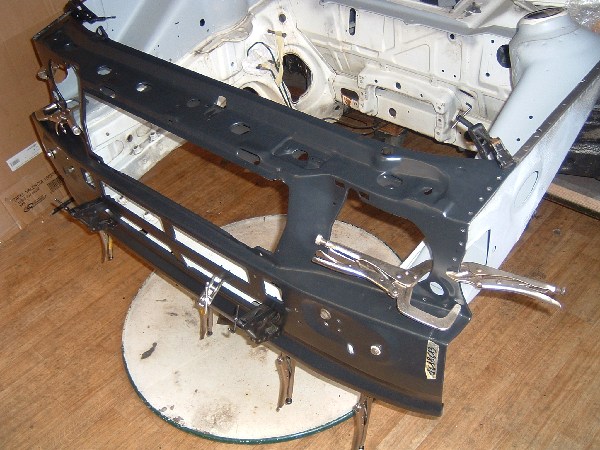

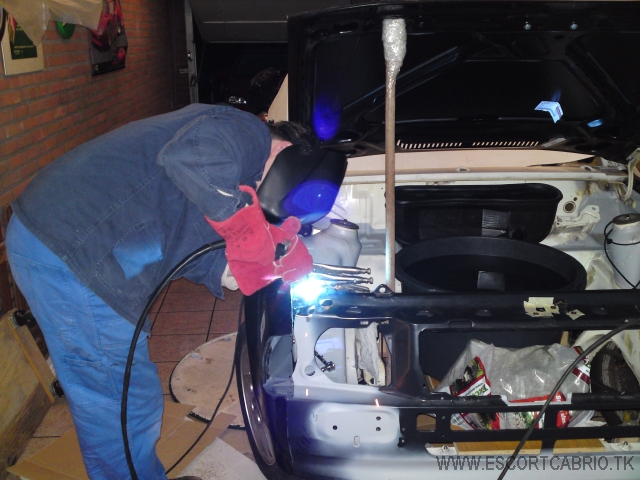

Welding the wings to the car (again all original Fords)

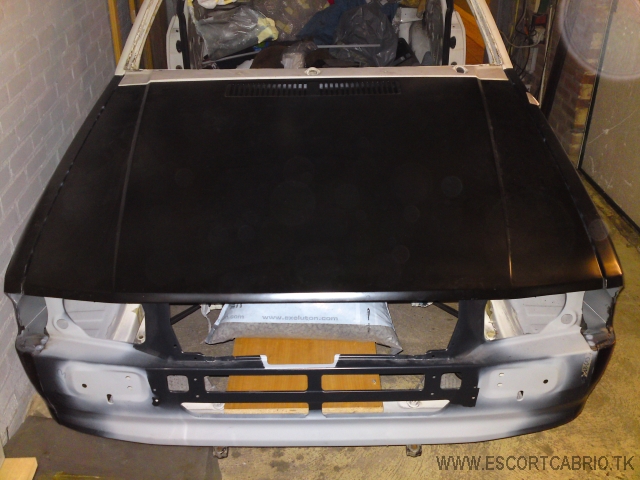

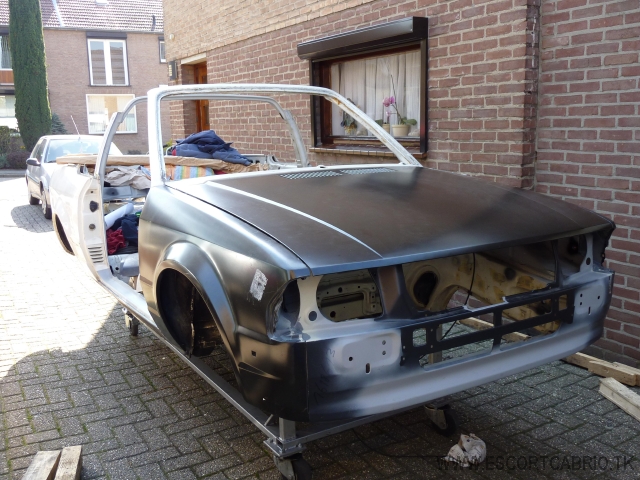

New Bonnet:
Seamsealed everything:

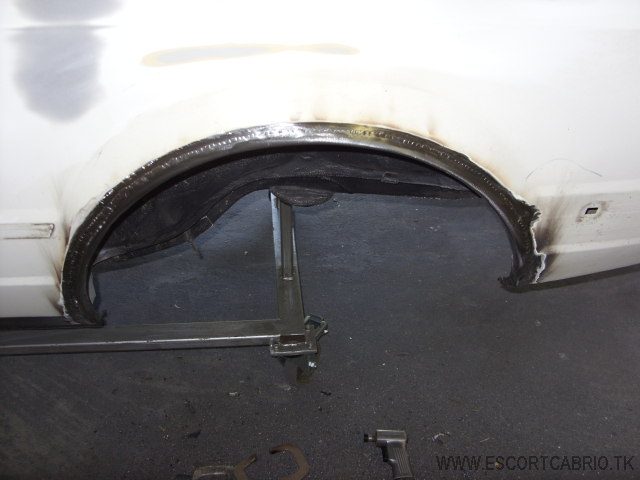

New rear arches:

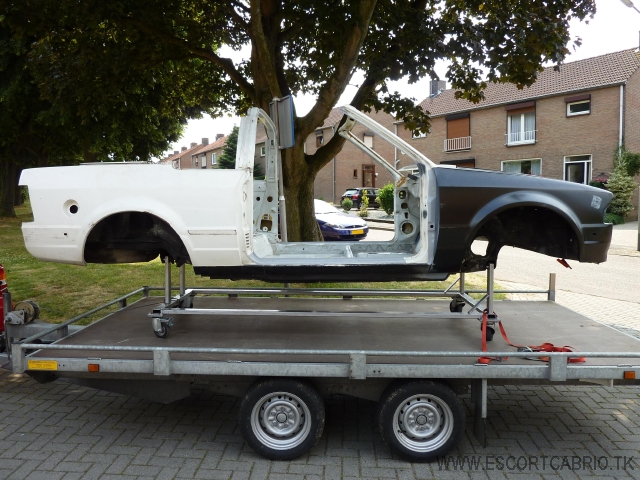

Ready to go to paintshop!

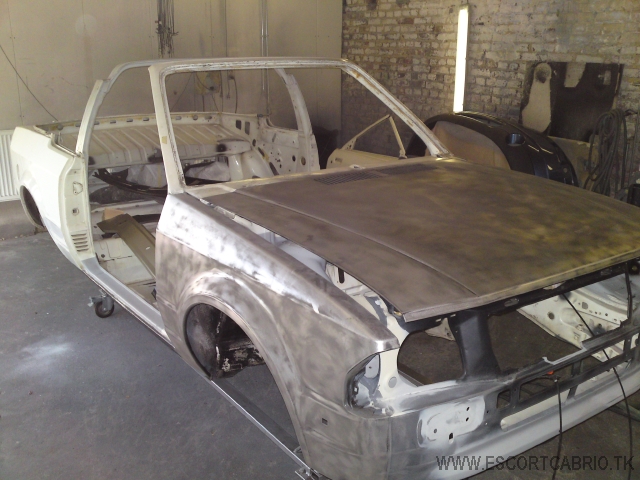

Sanding back to bare metal:

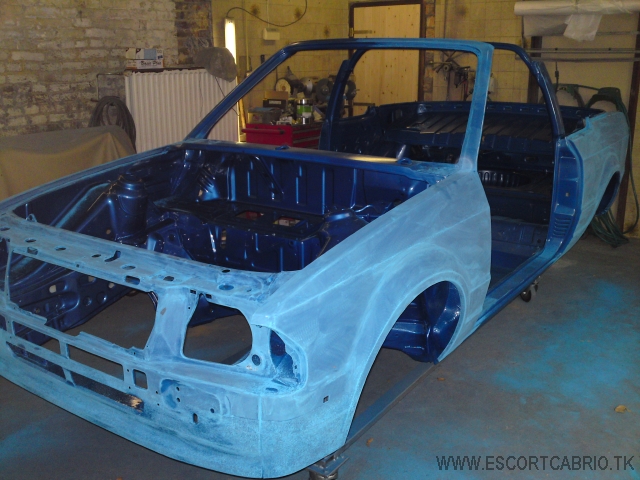

Outside in blue Epoxy primer, inside already painted:

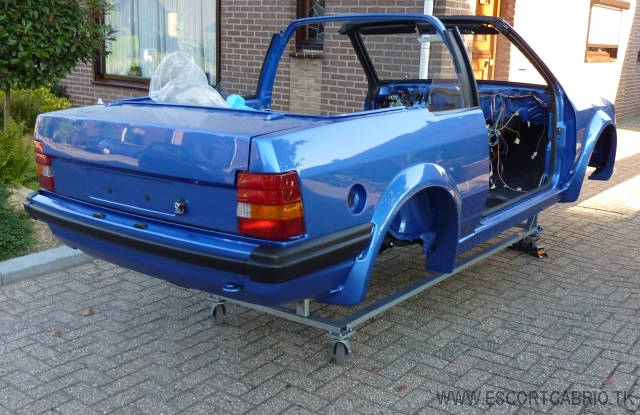

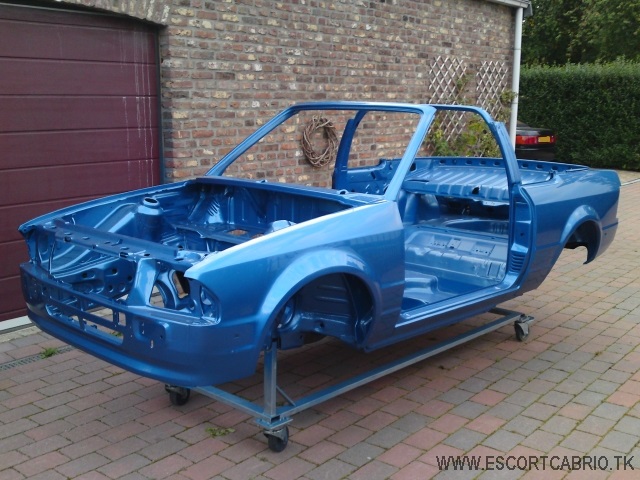

Painted:
[IMGhttp://www.escort-cabrio.nl/autothuis7.jpg[/IMG]

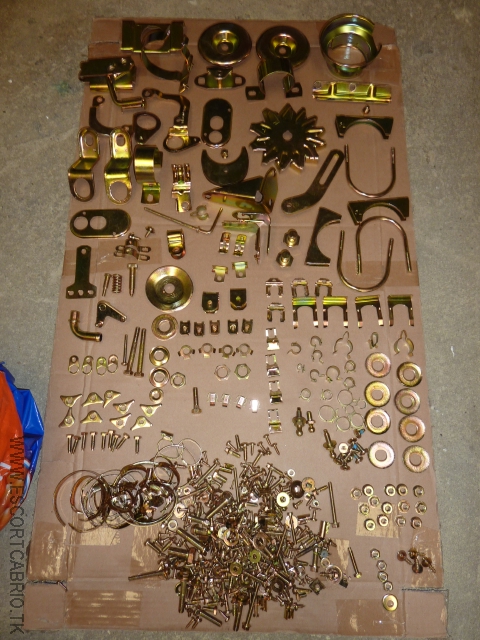

Zinc Plated stuff:
New Carello's:

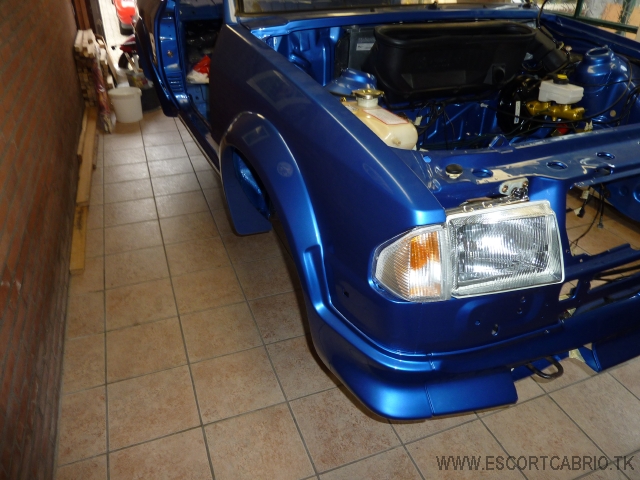

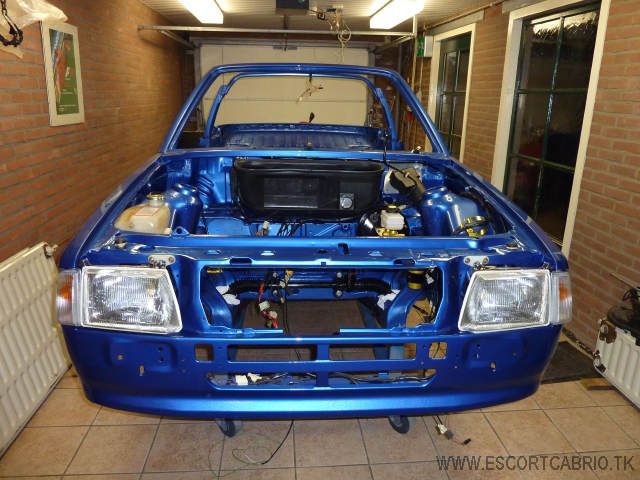

Bodykit mounted:

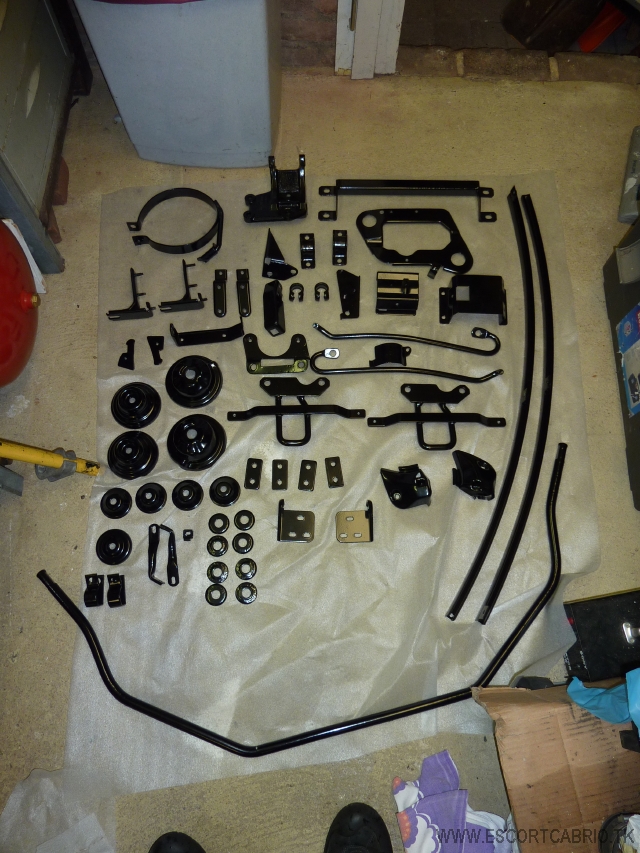

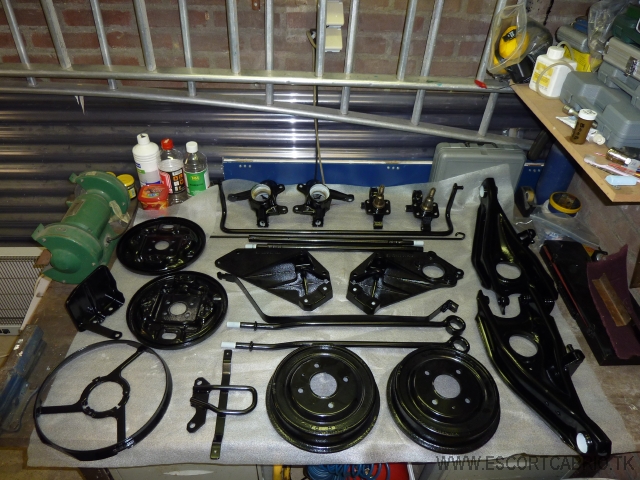

Powdercoated bits:
Rear lights polished:

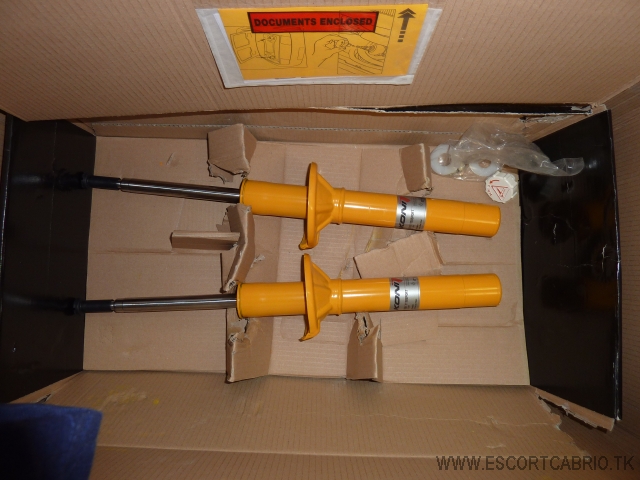

New yellow Koni adjustable's:

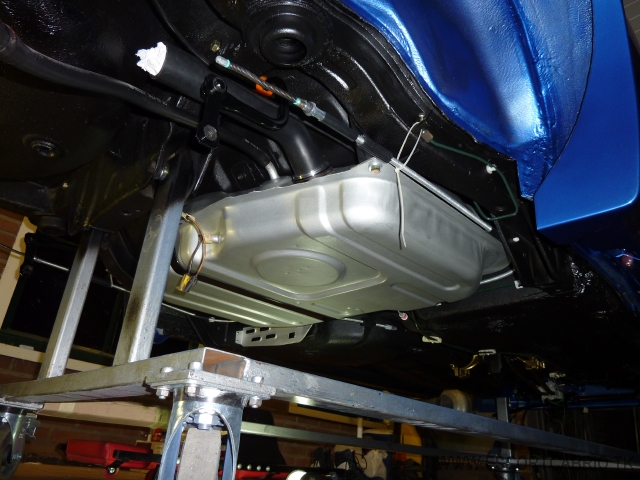

Fuel Tank in:

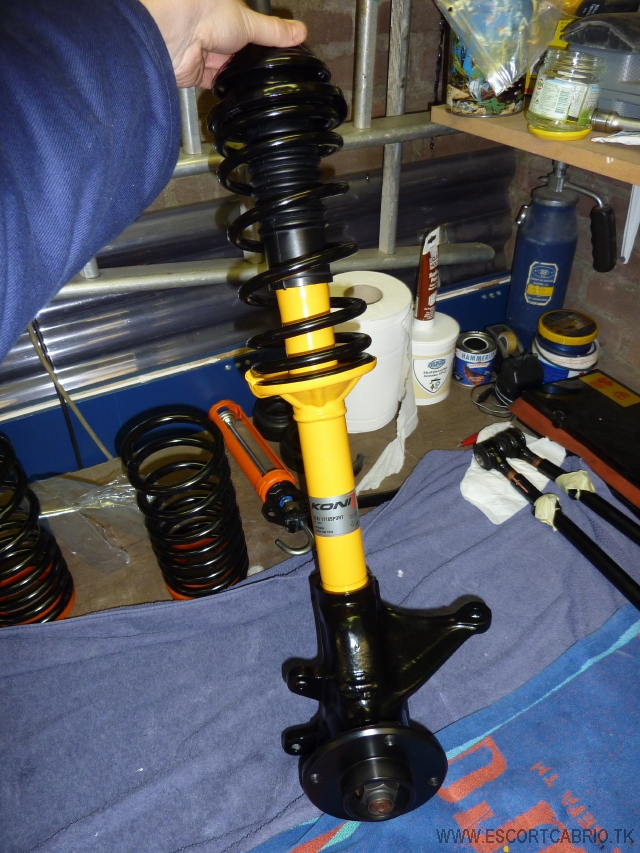

Front strut complete:

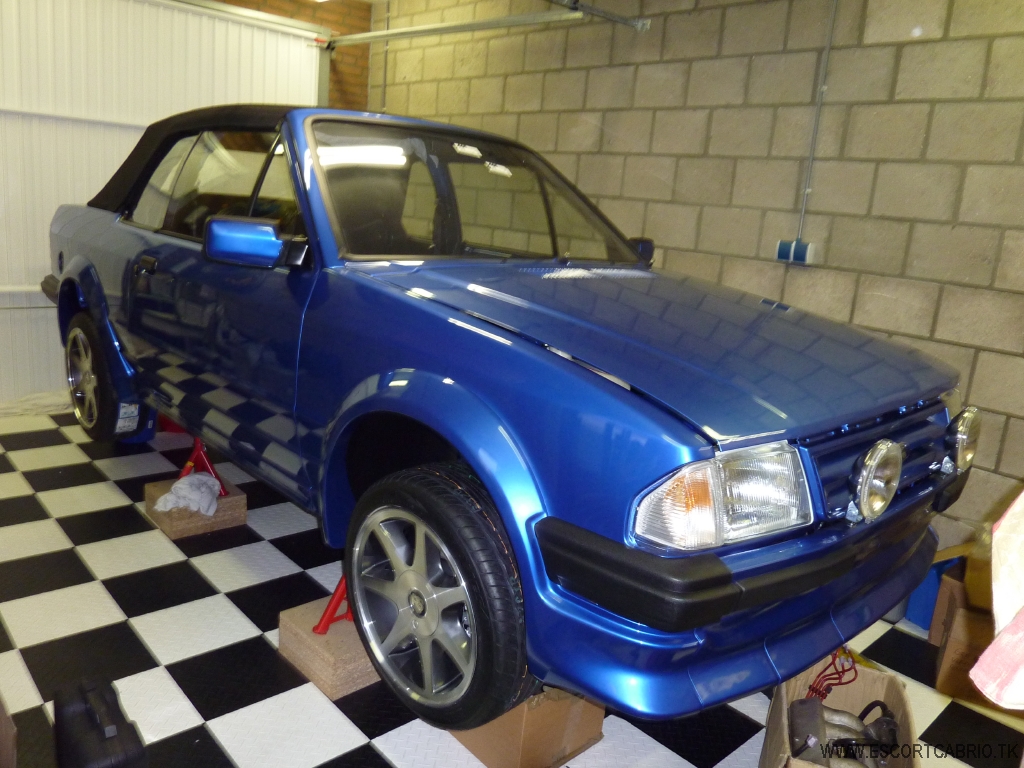

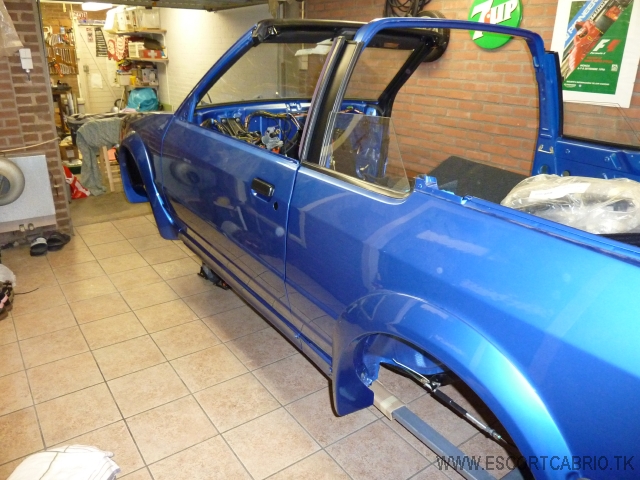

Doors are in:

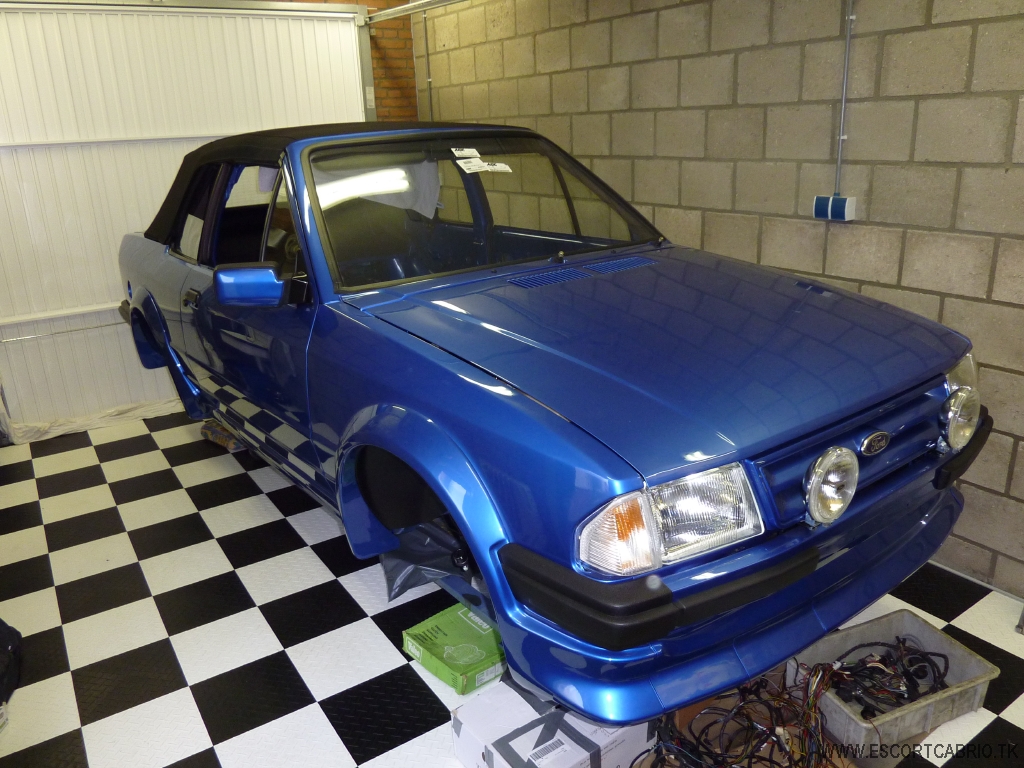

New Ford Front spots:

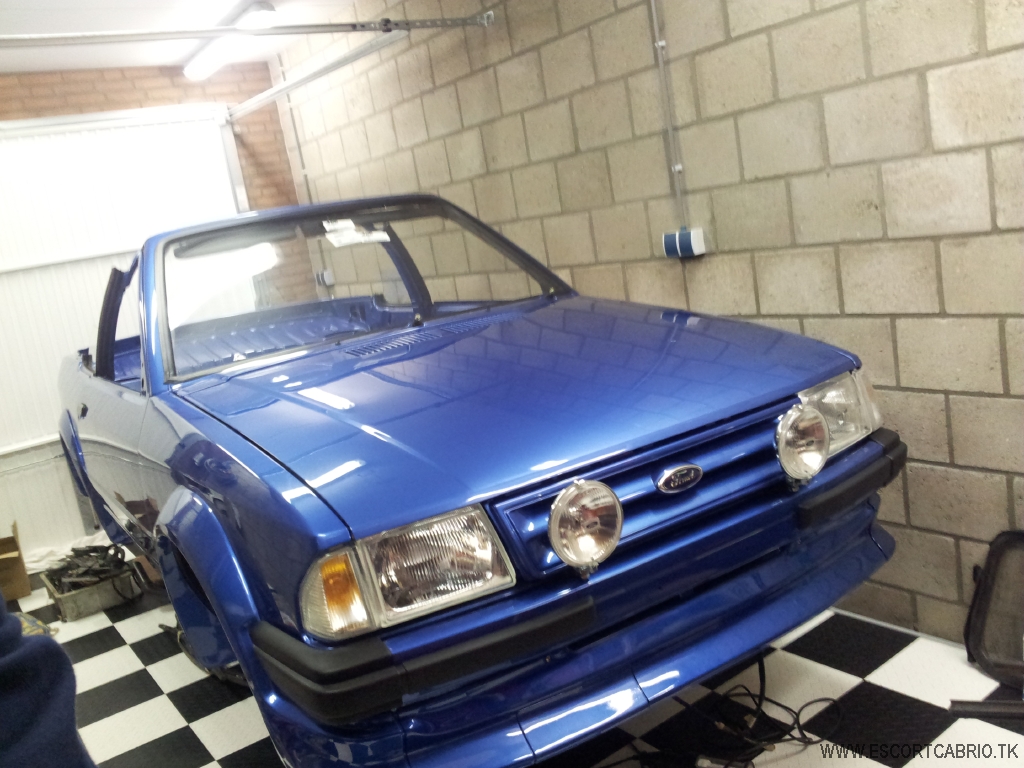

Roof on:
Fully rebuild RS Turbo gearbox:

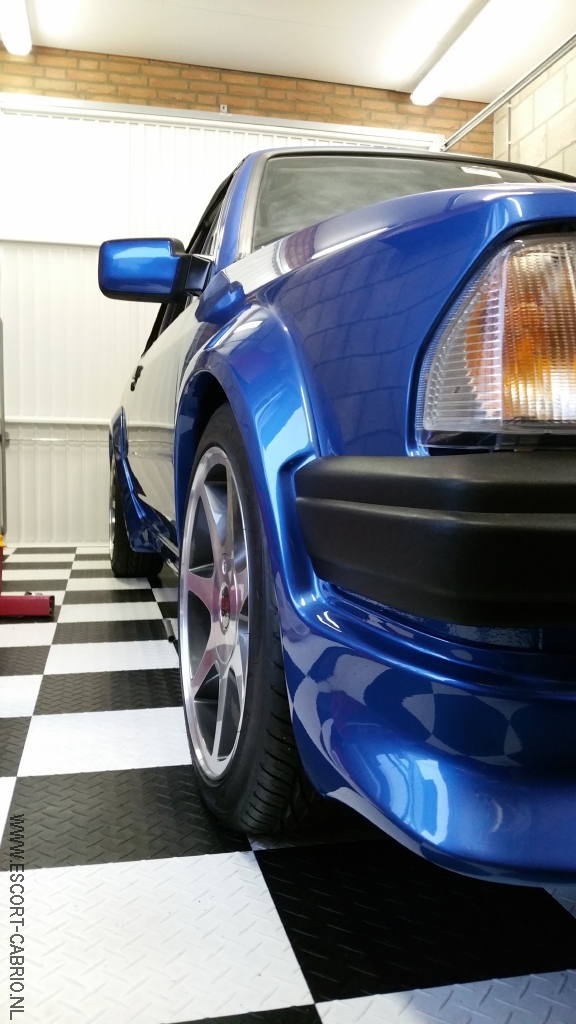

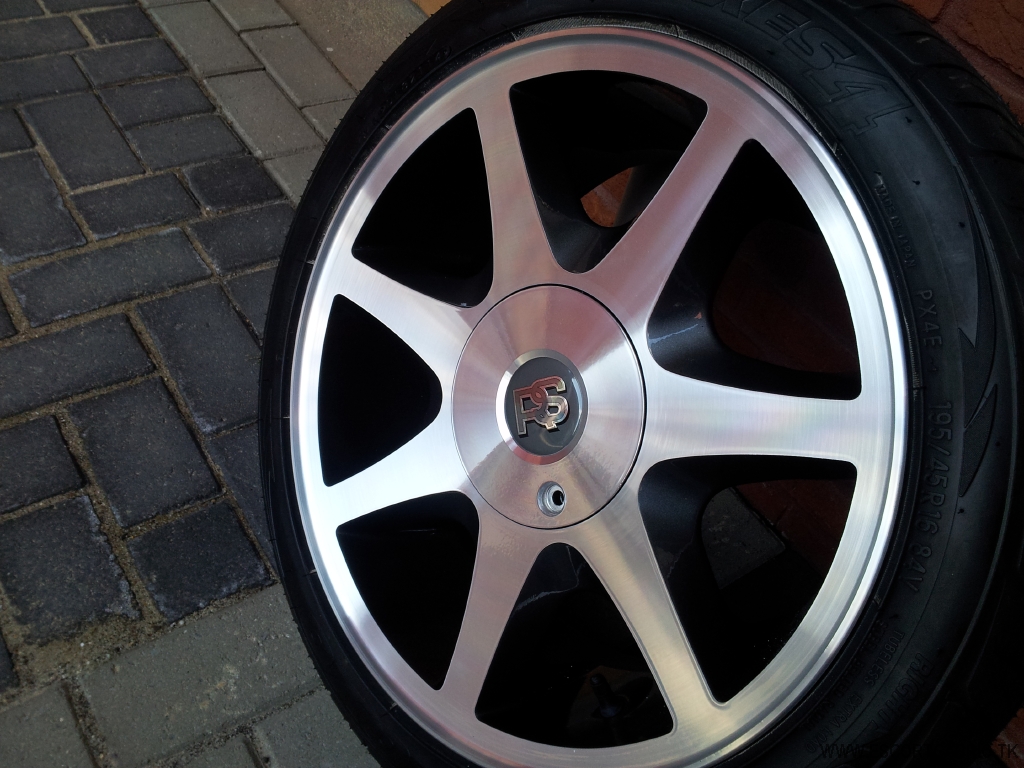

Fully restored (re-diamond cut) RS 7 spoke's in 16"

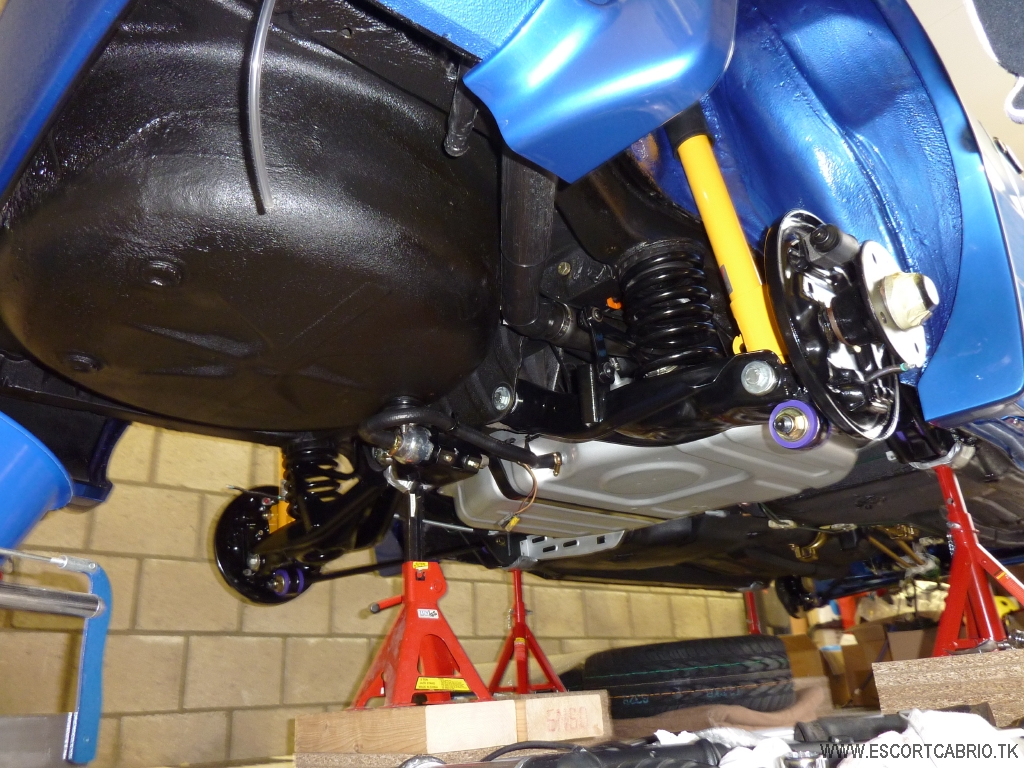

Rear suspension on:

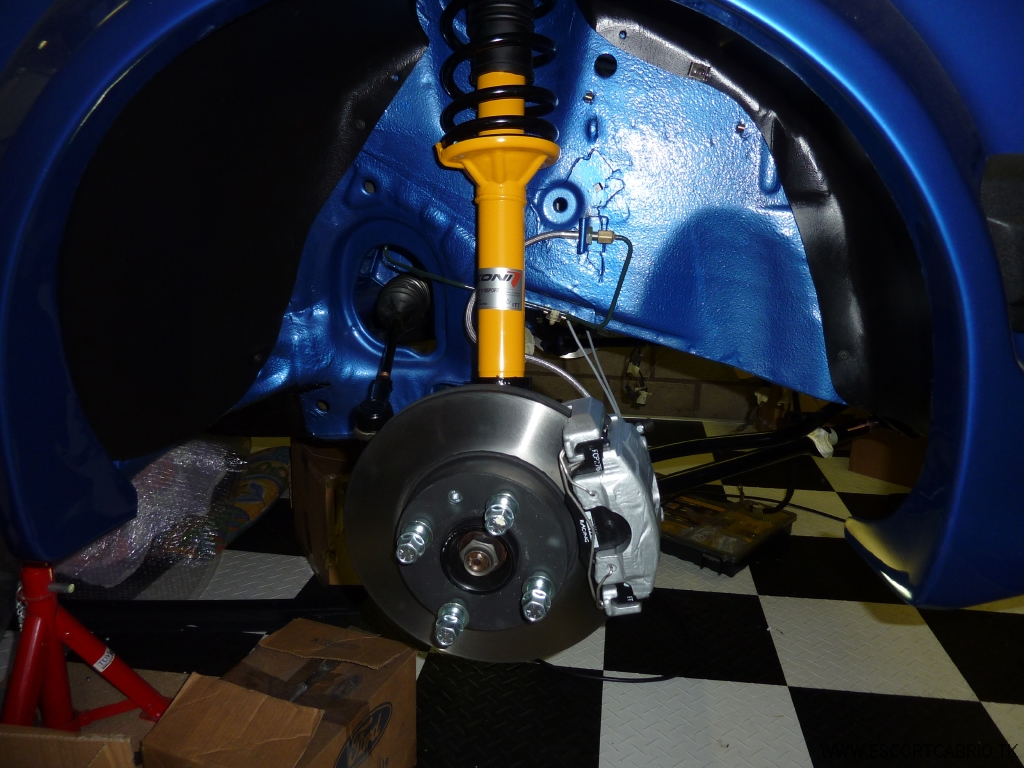

Front suspension on:

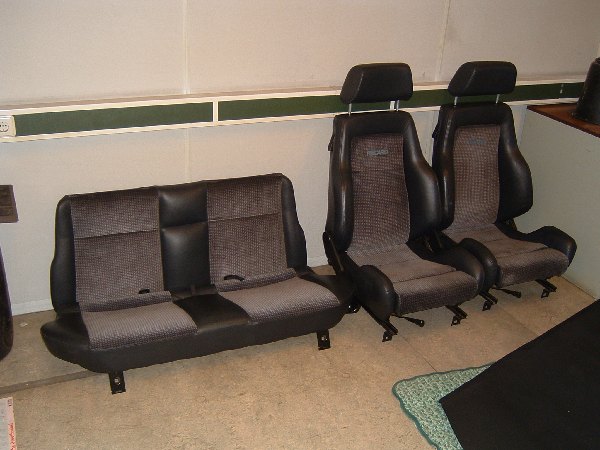

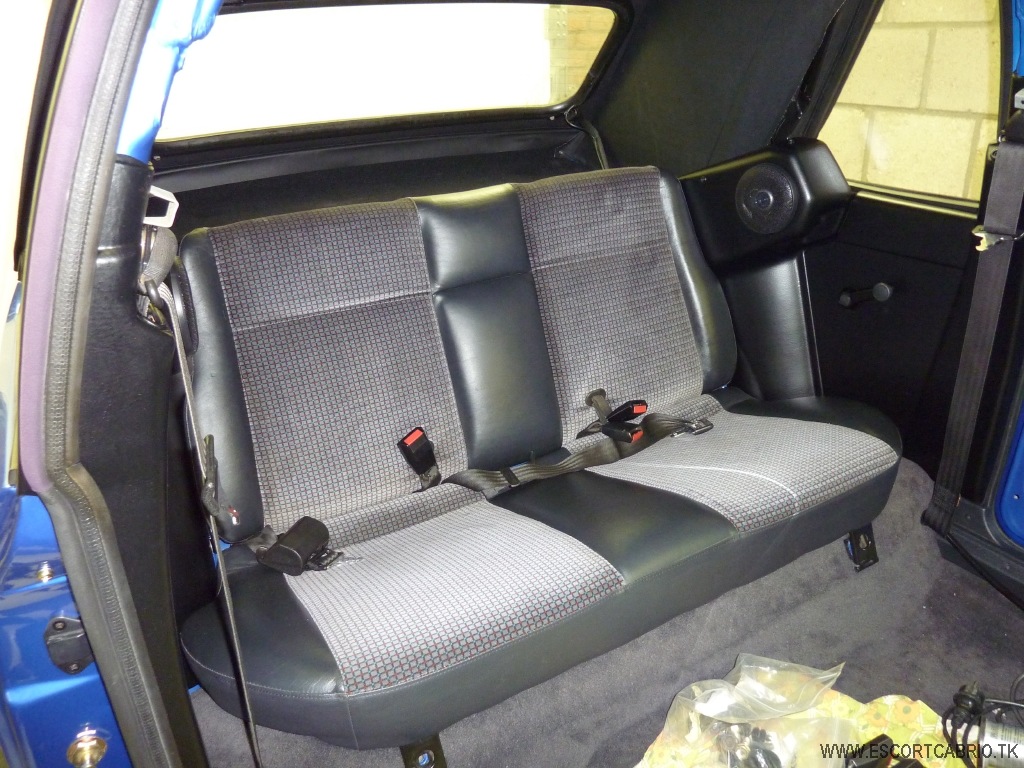

Rear Interior:
Getting there:
Fully rebuild engine. New pistons, bearings, camshaft, gaskets, etc.

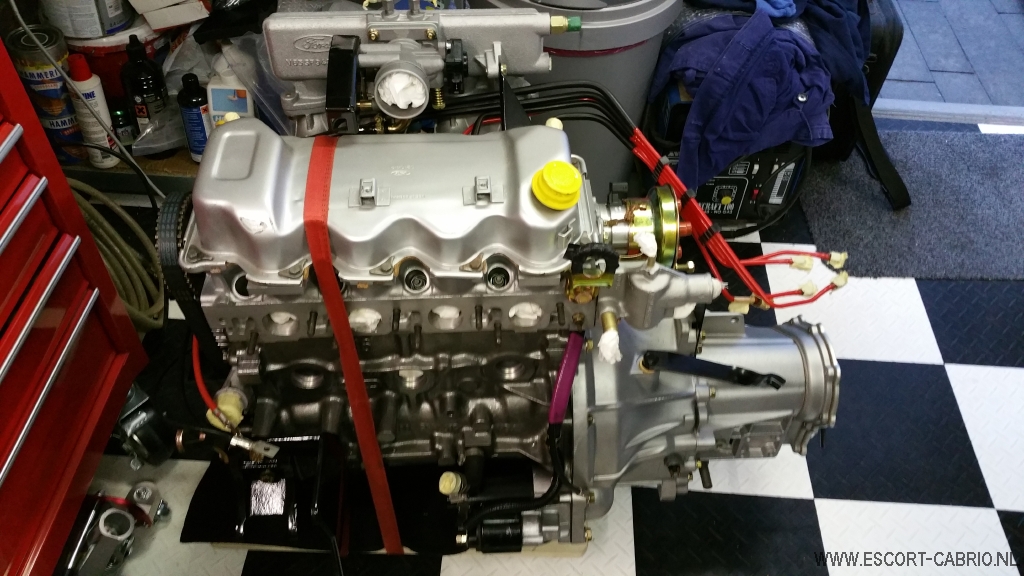

Engine in:

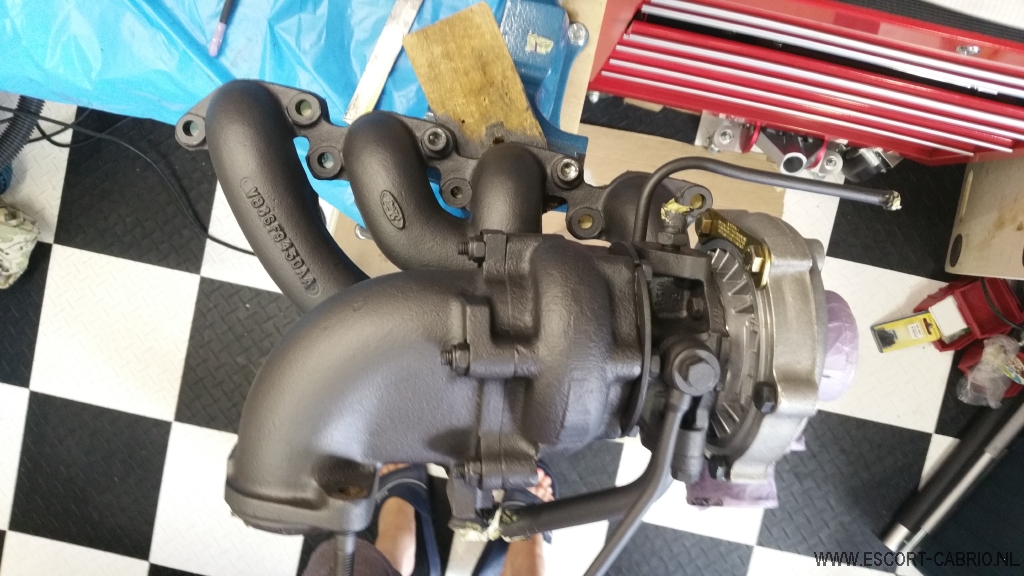

Brand new turbocharger:

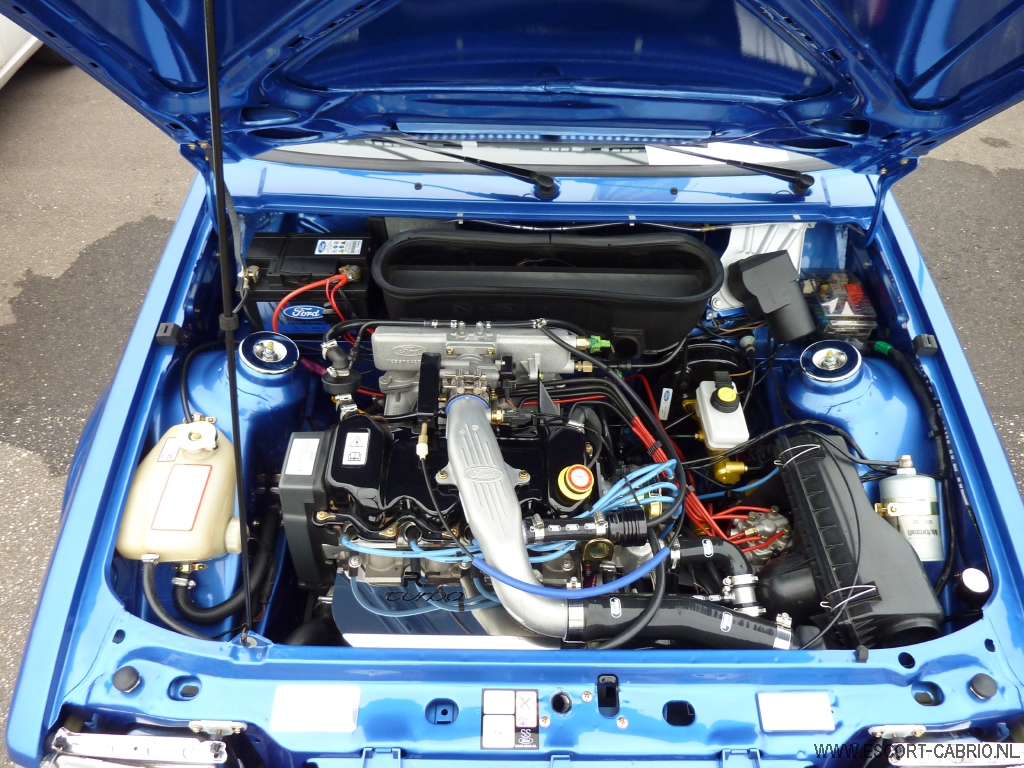

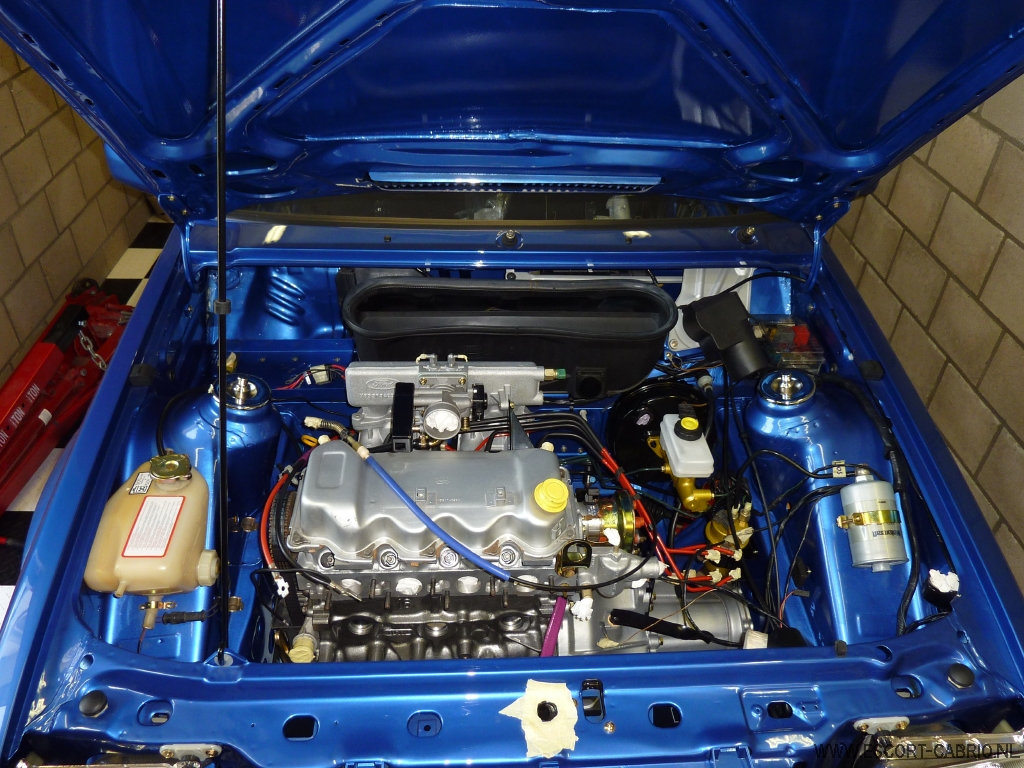

Engine bay complete:

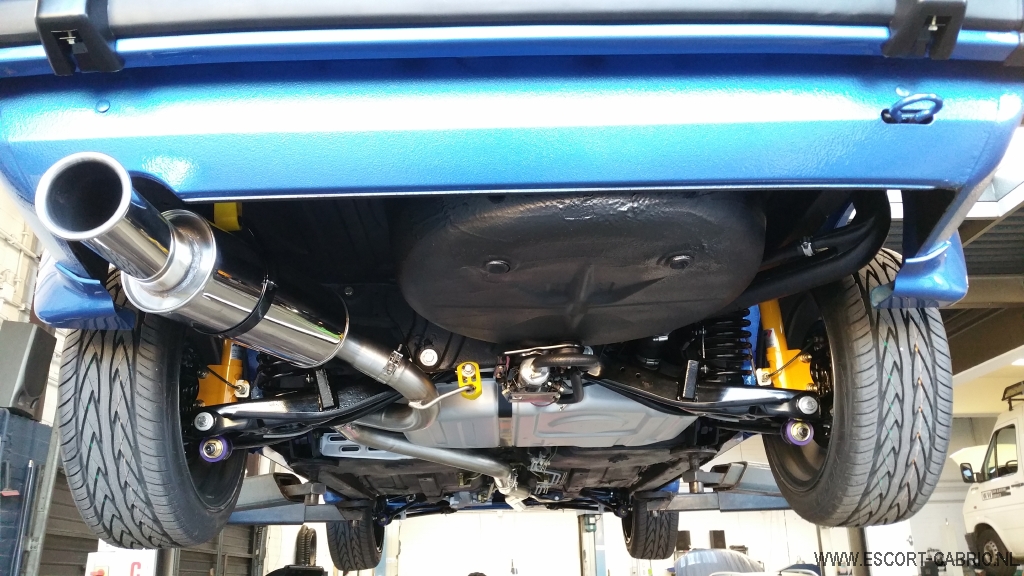

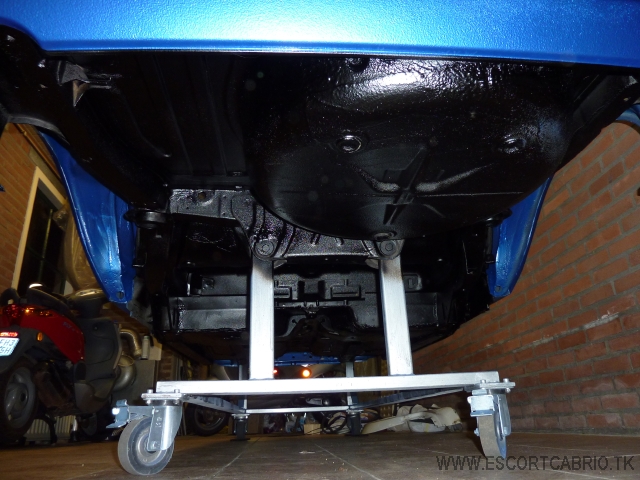

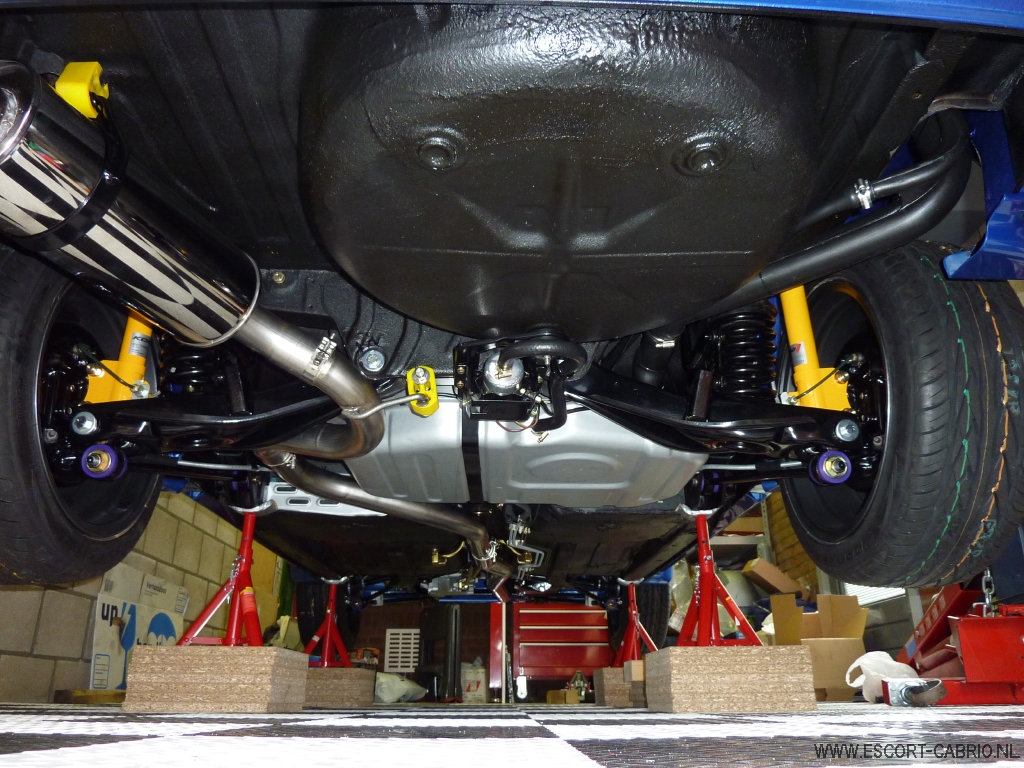

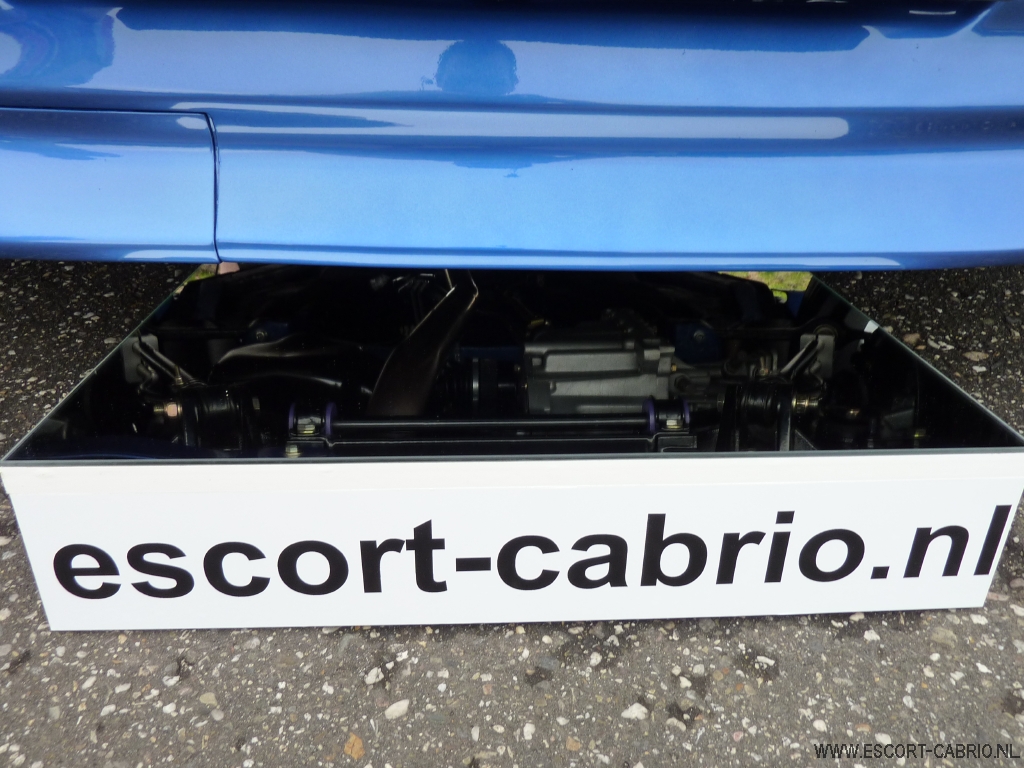

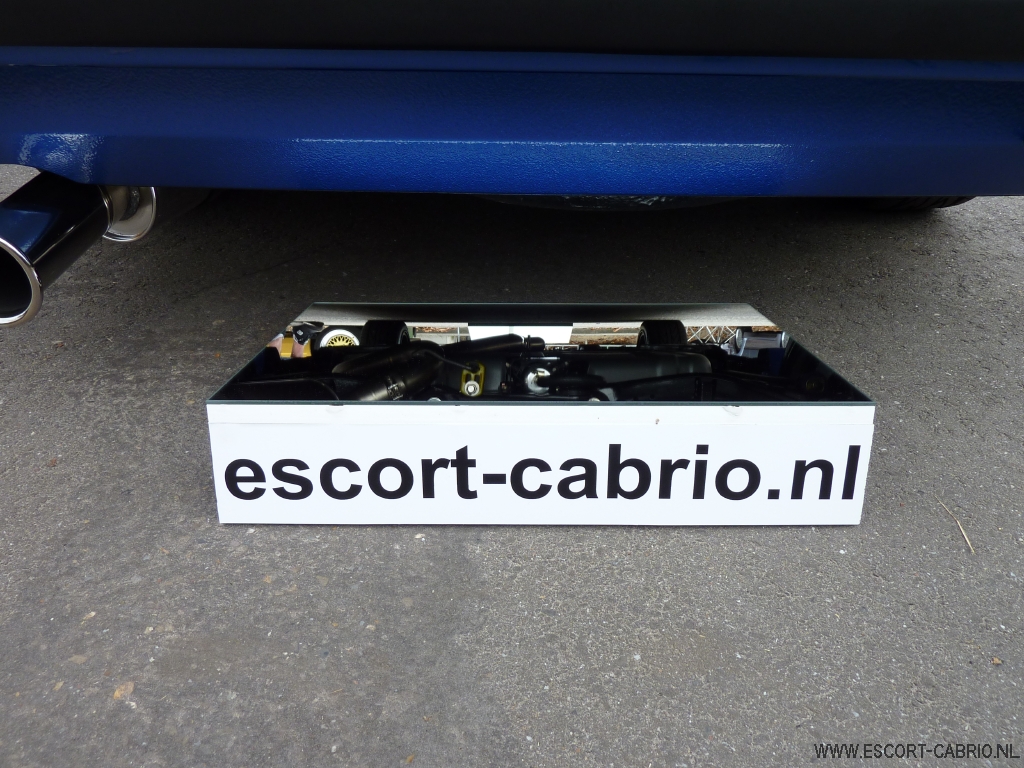

Underside with Stainless Steel Mongoose exhaust:
On its wheels:

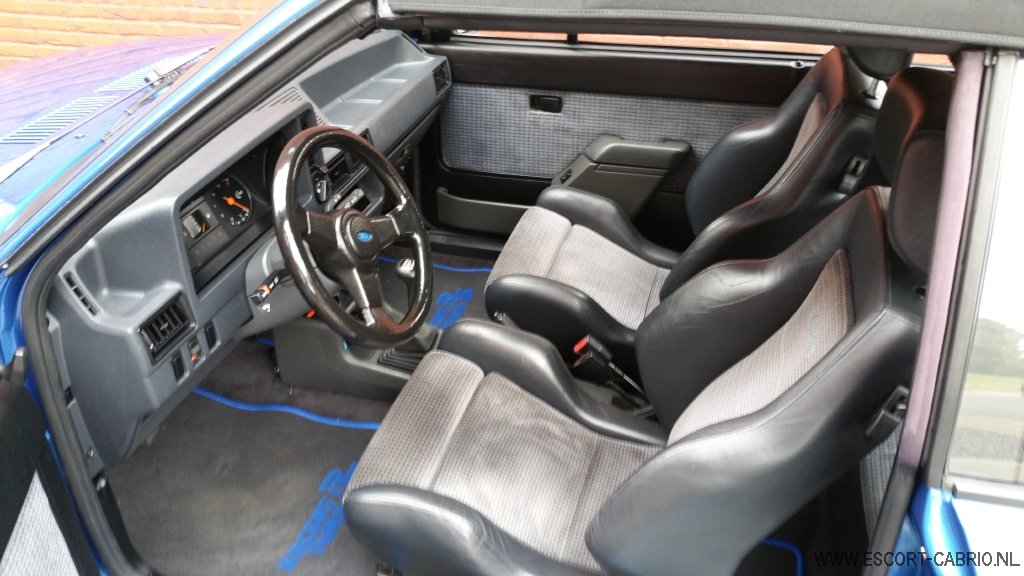

Interior done:
First wash:
At the MOT station. MOT-guy was very impressed

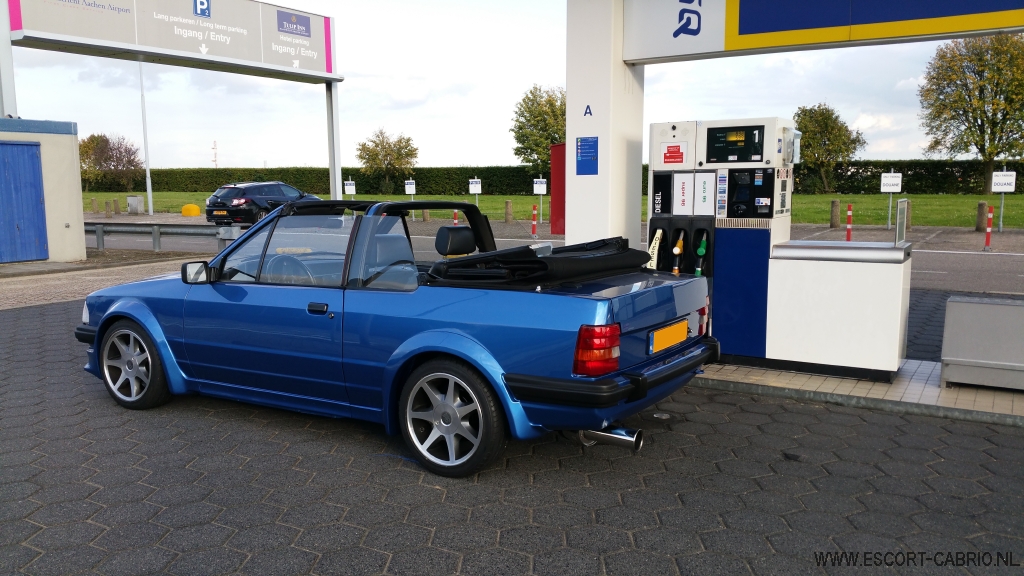

And stopping for petrol for the first time after the MOT:

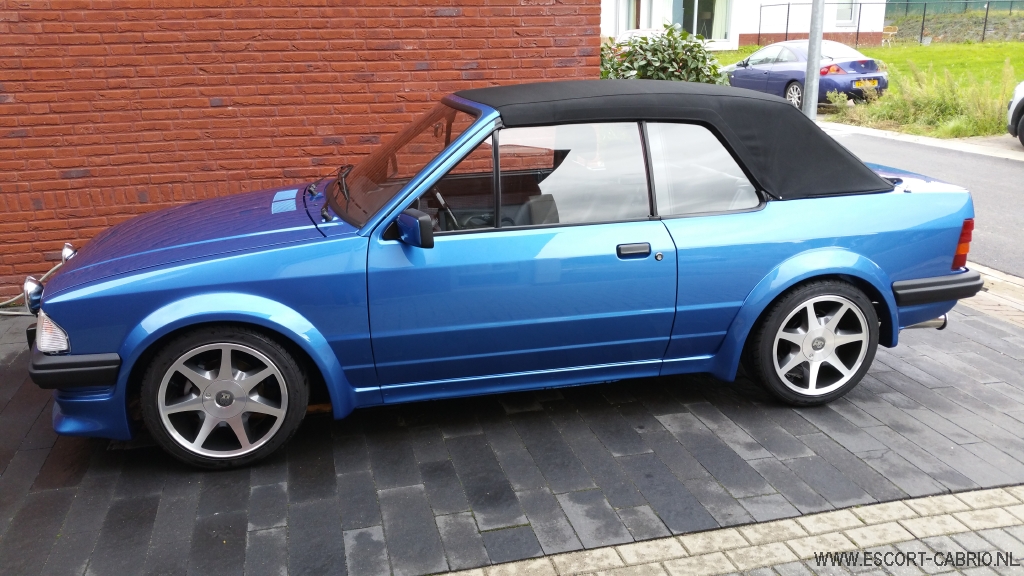

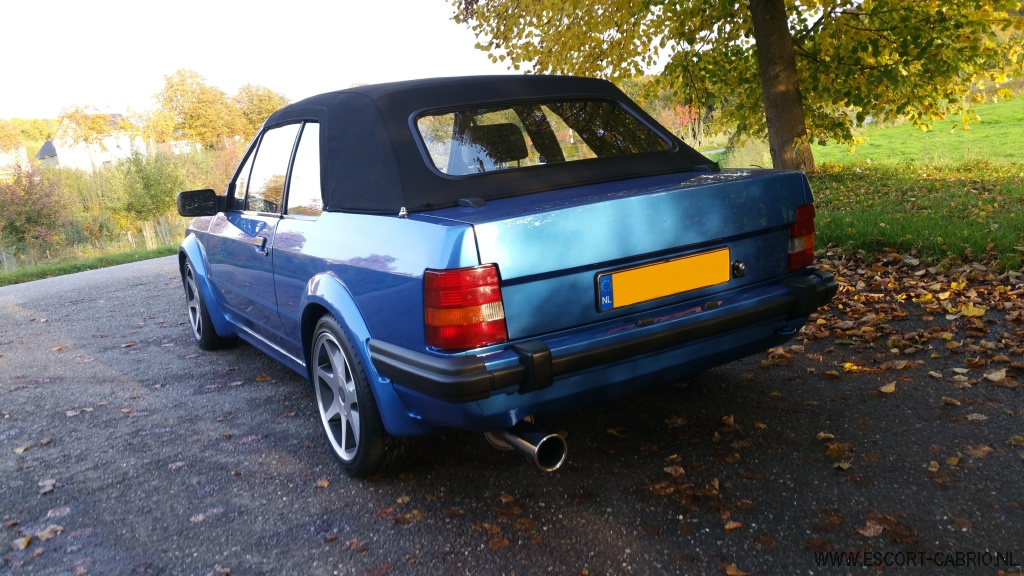

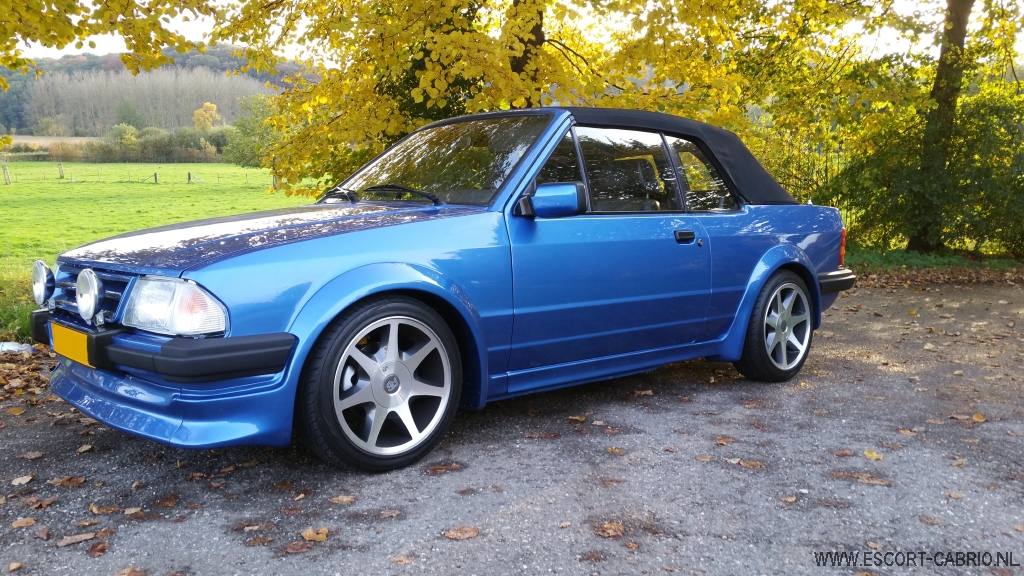

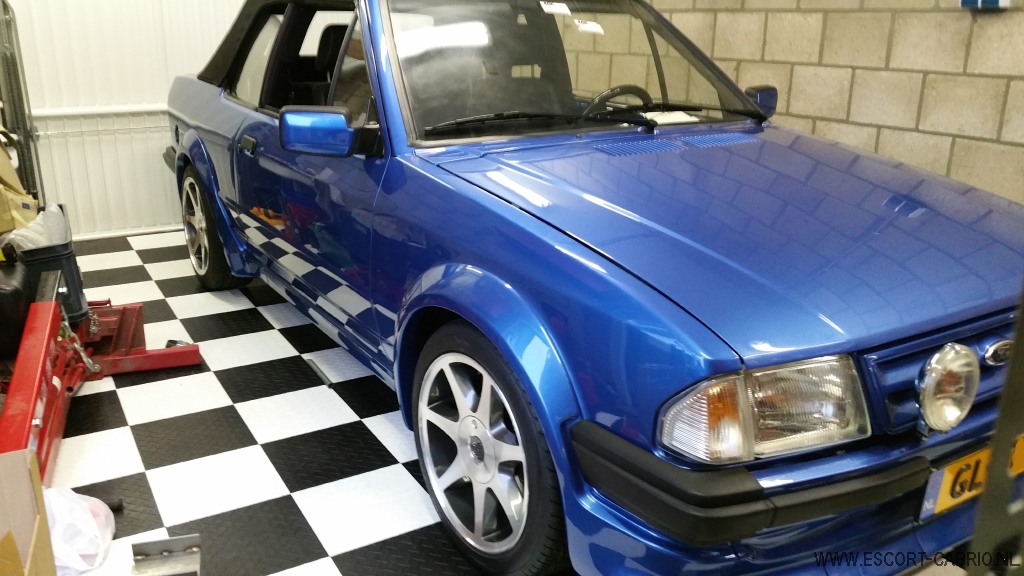

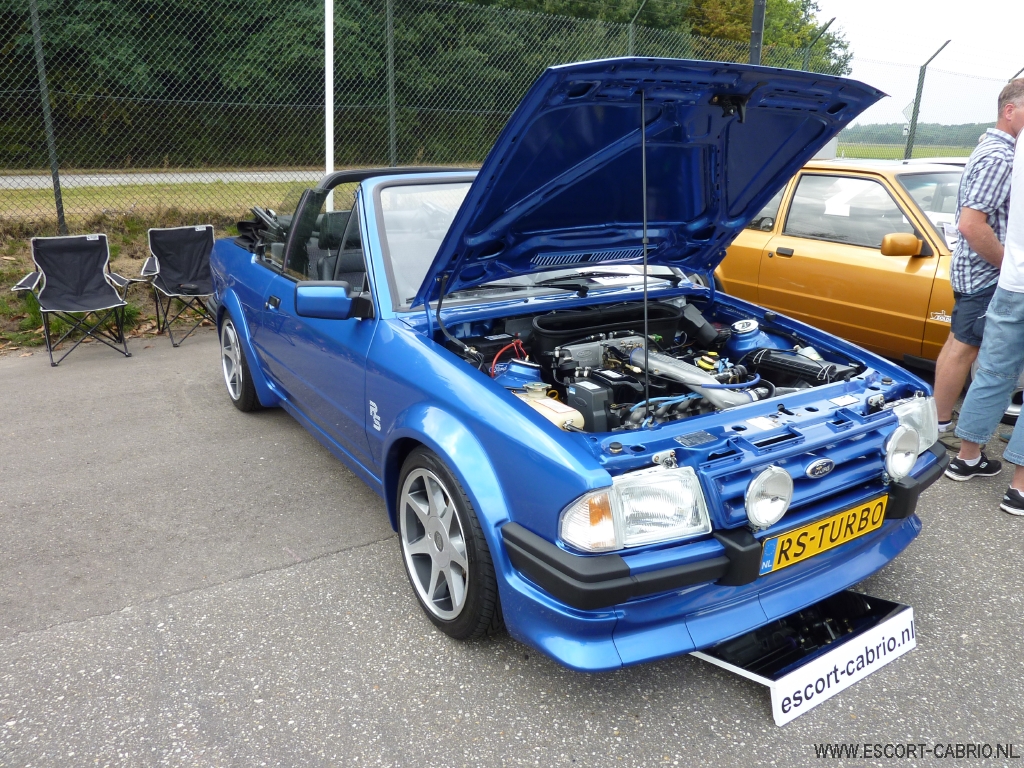

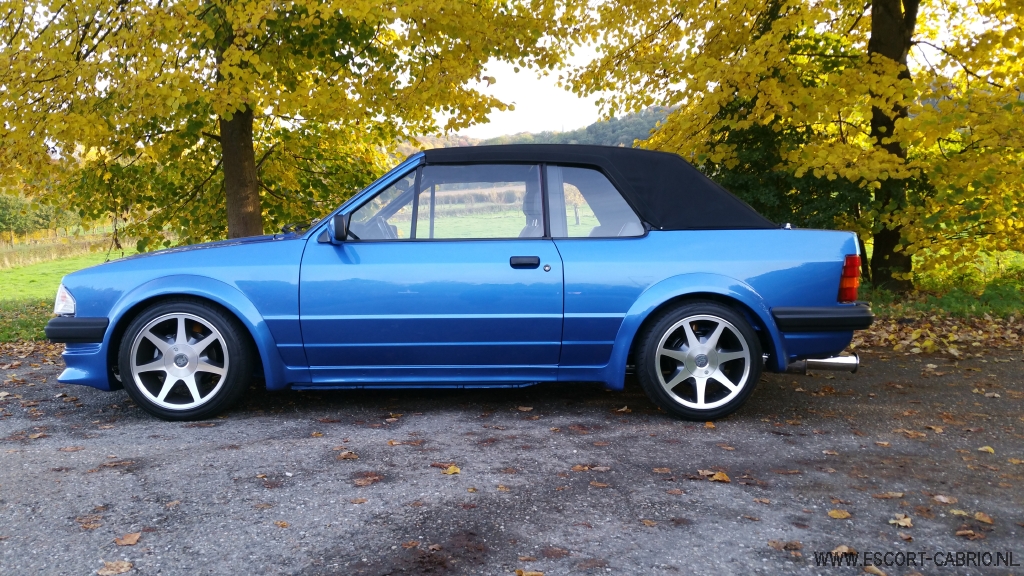

Finished:
Done just a few 100 km's now.
Tucked away for winter now.
There are a few small things that need some attention this winter, so that it's ready for concours next meeting season.
Hope you like it!
Cheers,
Sven
I am a member of this forum for many years now, but I never showed my project to you.
So a quick view of what I've been up to for the past 11 3/4 (!) years.
I started this project back in Februari 2004. I bought a Mk3 cabriolet and wanted to do a full concours resto on it. It had to be a Turbo conversion also!
Looking back at this decision, it would be a better, smarter and cheaper option to have restored a real S1 turbo......but don't worry, no regrets about doing a replica.
I build this car with the filosophy of "how would the ultimate S1 cabriolet look like, if Ford had build it"
So enough talking, here are the pic's:
Full resto story is on www.escort-cabrio.nl. Site is in dutch, but google translate will help you guys ubderstanding most of it.......
in the beginning:
Removing Panels:
Inner wings crusty:
Inner Wings Sorted, unused holes welded up:
Small patches:
found a mint interior:
New panels (all Original Ford's):
Rear Panel was rotten:
New panels was not available for MK3 cabriolet, so used a MK4 cabrio and MK3 hatchback panel (all original ford) to build my own:
Welding the wings to the car (again all original Fords)
New Bonnet:
Seamsealed everything:
New rear arches:
Ready to go to paintshop!
Sanding back to bare metal:
Outside in blue Epoxy primer, inside already painted:
Painted:
[IMGhttp://www.escort-cabrio.nl/autothuis7.jpg[/IMG]
Zinc Plated stuff:
New Carello's:
Bodykit mounted:
Powdercoated bits:
Rear lights polished:
New yellow Koni adjustable's:
Fuel Tank in:
Front strut complete:
Doors are in:
New Ford Front spots:
Roof on:
Fully rebuild RS Turbo gearbox:
Fully restored (re-diamond cut) RS 7 spoke's in 16"
Rear suspension on:
Front suspension on:
Rear Interior:
Getting there:
Fully rebuild engine. New pistons, bearings, camshaft, gaskets, etc.
Engine in:
Brand new turbocharger:
Engine bay complete:
Underside with Stainless Steel Mongoose exhaust:
On its wheels:
Interior done:
First wash:
At the MOT station. MOT-guy was very impressed
And stopping for petrol for the first time after the MOT:

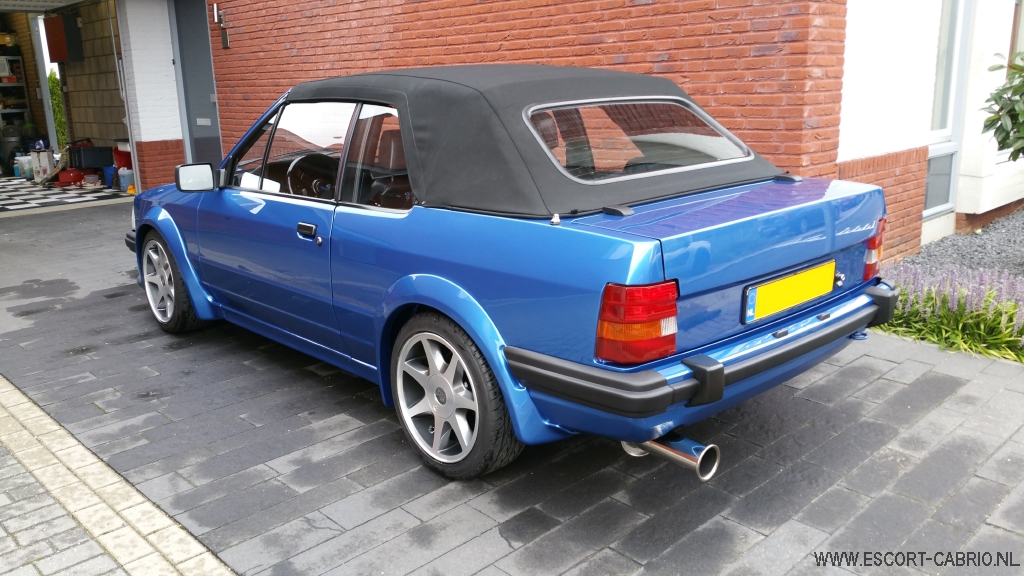

Finished:
Done just a few 100 km's now.
Tucked away for winter now.
There are a few small things that need some attention this winter, so that it's ready for concours next meeting season.
Hope you like it!
Cheers,
Sven
Last edited by Dr. Ickxs; 17-09-2016 at 02:19 PM. Reason: image not working
#5
PassionFord Post Troll
That is immaculate mate well done and well done for sticking at it for 11 years lol !!
Trending Topics
#12
PassionFord Post Whore!!
Car looks great
#13
I've found that life I needed.. It's HERE!!
Great job.
#19
Wahay!! I've lost my Virginity!!
Thread Starter
Spec's
Thanks for all the comments guys.
There is just one thing I havent't made up my mind about: I've got a full Series one decal set in white. Should I put it on the whole car, or just the one on the bootlid?
Or leave it without any?
Also, I thought it would be nice to mention some of the spec's:
Body:
- a 1983 cabriolet 1.6L body. First registered in 1984. (New style front struts, but old style gearshifter mount)
- New front wings, new hood, new front, new rearplate, new rear arches. All original Ford ( except rear arches)
- new bumpers(complete) all original Ford.
- new carello front H4 lamps and spotlights from Ford
- new indicators
- new S1 grill (original Ford)
- full S1 bodykit (original)
- used doors and bootlid
- new Sonnenland fabric roof.
- polished glass windows.
Body brought back to bare metal, epoxy coated, painted Azure Blue, finished with self healing clearcoat.
Wheels:
-Diamondcut RS7 spoke 16inch. Fully restored and re-diamondcut
Suspension:
- rear S2 wishbones and antirollbar
- S2 drumbrakes
- new Koni yellow top adjustable set with Eibach -40mmsprings (springs powdercoated black)
- full S1 front antirollbar setup
- S2 Tarox brakedisc's with Ferrodo pads on new S2 calipers
- Goodridge braided hoses.
Interior:
- 90spec half leather recaro seats (from 50.000km car which crashed)
- mk3 doorcards matched to Recaro trim.
- hard plastic dash, modified to look like the luxury type.
- black S2 carpet
- S1 top carpet set
Engine:
'90 S2 engine fully rebuild:
- hearts & diamonds ECU
- new Mahle pistons
- new bearings
- new motorcraft waterpump
- new Kentcams fast road camshaftkit
- new ignition distributor (original Ford/bosh)
- new garret turbo (standard)
- standard actuator (-31 actuator when engine is properly set up)
- Rebuild S2 fuel system on mk3 fuel lines. Uprated pump
- S2 fuel tank, S1 Fuelfiller pipe, modified to fit.
- S1 intake manifold, modified for anti knock sensor.
- Airtec S1 Satin black alloy radiator and uprated intercooler
- Mongoose stainless steel exhaust
- fully rebuid S2 gearbox (build in Mk3 housing). Shot blasted, cleaned, new bearings and seals.
- K&N panel airfilter
- black Samco Sport silicone hoses
- black twin piston dumpvalve
Electrical:
- S2 loom and fusebox, completely resoldered an taped (140meters of black insulation tape!) to accept mk3 lights, dash, switches and instument cluster.
- working mk3 auxilary warning module
- power operated roof from mk4 cabriolet
- power operated antenna
- Mk3 central locking solenoids.
- power windows from mk4 cabriolet
- vintage look stereo
- 3 gauge meter pod in central console (oil pressure, oil temp, boost)
And all the stuff I forgot to mention
Cheers,
Sven
There is just one thing I havent't made up my mind about: I've got a full Series one decal set in white. Should I put it on the whole car, or just the one on the bootlid?
Or leave it without any?
Also, I thought it would be nice to mention some of the spec's:
Body:
- a 1983 cabriolet 1.6L body. First registered in 1984. (New style front struts, but old style gearshifter mount)
- New front wings, new hood, new front, new rearplate, new rear arches. All original Ford ( except rear arches)
- new bumpers(complete) all original Ford.
- new carello front H4 lamps and spotlights from Ford
- new indicators
- new S1 grill (original Ford)
- full S1 bodykit (original)
- used doors and bootlid
- new Sonnenland fabric roof.
- polished glass windows.
Body brought back to bare metal, epoxy coated, painted Azure Blue, finished with self healing clearcoat.
Wheels:
-Diamondcut RS7 spoke 16inch. Fully restored and re-diamondcut
Suspension:
- rear S2 wishbones and antirollbar
- S2 drumbrakes
- new Koni yellow top adjustable set with Eibach -40mmsprings (springs powdercoated black)
- full S1 front antirollbar setup
- S2 Tarox brakedisc's with Ferrodo pads on new S2 calipers
- Goodridge braided hoses.
Interior:
- 90spec half leather recaro seats (from 50.000km car which crashed)
- mk3 doorcards matched to Recaro trim.
- hard plastic dash, modified to look like the luxury type.
- black S2 carpet
- S1 top carpet set
Engine:
'90 S2 engine fully rebuild:
- hearts & diamonds ECU
- new Mahle pistons
- new bearings
- new motorcraft waterpump
- new Kentcams fast road camshaftkit
- new ignition distributor (original Ford/bosh)
- new garret turbo (standard)
- standard actuator (-31 actuator when engine is properly set up)
- Rebuild S2 fuel system on mk3 fuel lines. Uprated pump
- S2 fuel tank, S1 Fuelfiller pipe, modified to fit.
- S1 intake manifold, modified for anti knock sensor.
- Airtec S1 Satin black alloy radiator and uprated intercooler
- Mongoose stainless steel exhaust
- fully rebuid S2 gearbox (build in Mk3 housing). Shot blasted, cleaned, new bearings and seals.
- K&N panel airfilter
- black Samco Sport silicone hoses
- black twin piston dumpvalve
Electrical:
- S2 loom and fusebox, completely resoldered an taped (140meters of black insulation tape!) to accept mk3 lights, dash, switches and instument cluster.
- working mk3 auxilary warning module
- power operated roof from mk4 cabriolet
- power operated antenna
- Mk3 central locking solenoids.
- power windows from mk4 cabriolet
- vintage look stereo
- 3 gauge meter pod in central console (oil pressure, oil temp, boost)
And all the stuff I forgot to mention
Cheers,
Sven
Last edited by Dr. Ickxs; 10-12-2015 at 06:37 PM. Reason: Typo
#20
Wahay!! I've lost my Virginity!!
Thread Starter
Hi Guys,

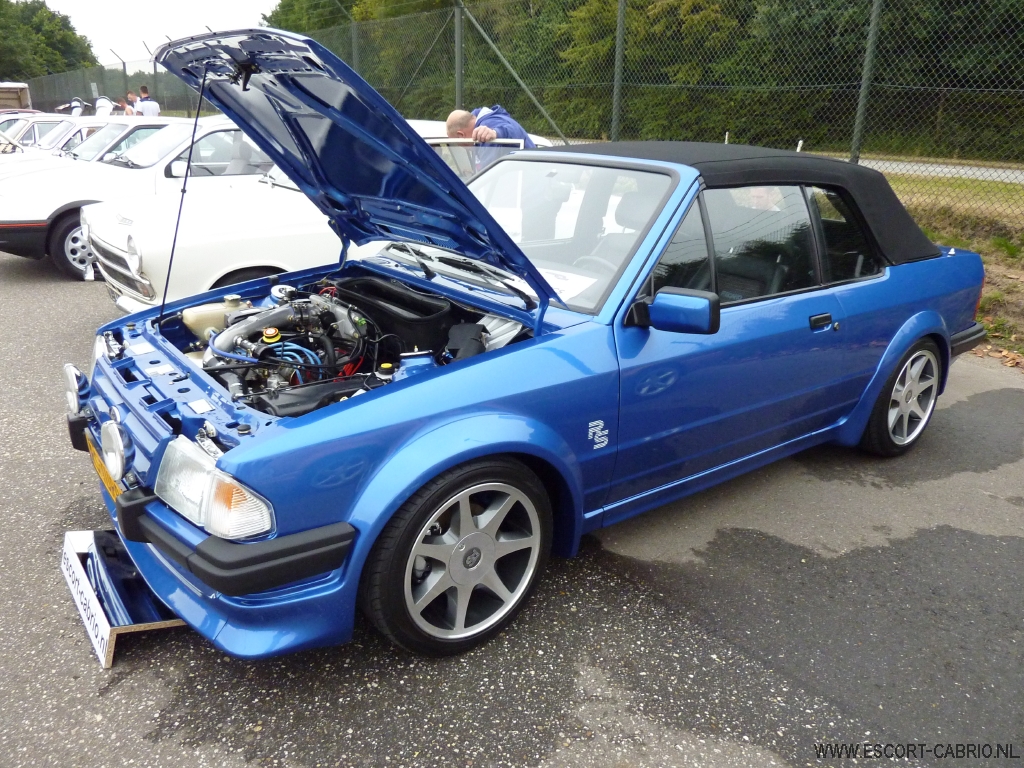

Wanted to show you the car after a few last issues are solved, and she is all finished now:

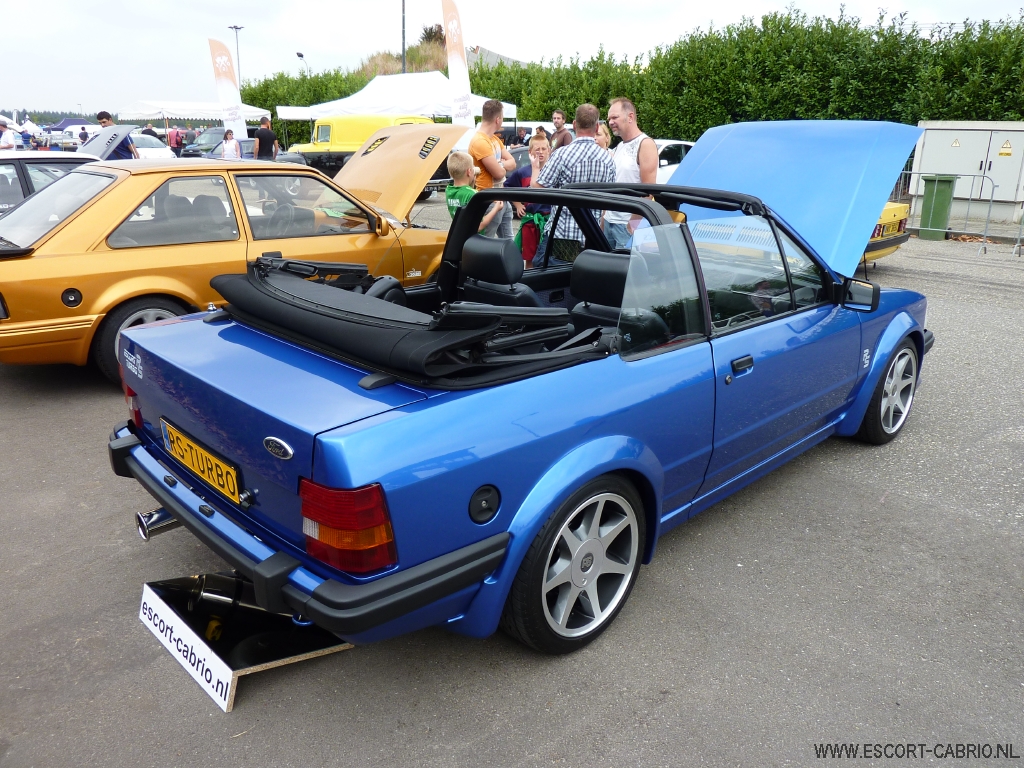

Took her to the European Ford Event hosted by the XR-RS Club Holland last week:

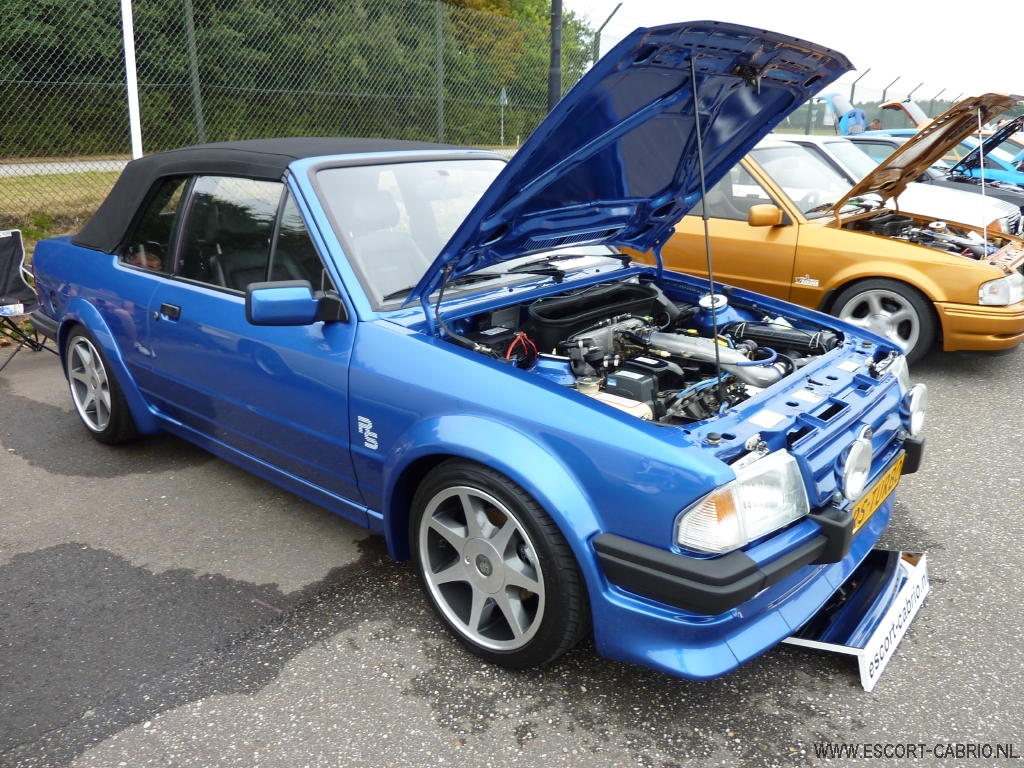

Signed her up for Concourse that day, and even won "Best car of Show" prize!
