Cambelt shield spacers

Thread Tools

Search this Thread

Old 05-02-2016, 12:54 AM
  #1
EscortCosworthUSA
Wahay!! I've lost my Virginity!!
Thread Starter

EscortCosworthUSA's Avatar

Join Date: Apr 2004
Location: Akron, OH USA
Posts: 83
Received 0 Likes on 0 Posts
Default Cambelt shield spacers
Hello,

Could somebody tell me what size the hex spacers/pillars/mounts or whatever they're called for the cambelt shield on a Cosworth 4wd.

The two cam top ones and front one. I know they're M6, but need the correct lengths.

Thanks!
EscortCosworthUSA is offline
Reply Like
Old 05-02-2016, 07:20 PM
  #2
costina
Live long and prosper!!
iTrader: (1)

costina's Avatar

Join Date: Aug 2005
Location: area 51
Posts: 9,158
Received 371 Likes on 346 Posts
Default
17mm across flats
18.5mm height
boss on top 10mm x 3mm
M6 Thread depth 19mm
M6 Stud length 10mm
32mm total length
Regards
Paul
Last edited by costina; 05-02-2016 at 07:29 PM.
costina is offline
Reply Like
Old 05-02-2016, 07:31 PM
  #3
costina
Live long and prosper!!
iTrader: (1)

costina's Avatar

Join Date: Aug 2005
Location: area 51
Posts: 9,158
Received 371 Likes on 346 Posts
Default


Paul
costina is offline
Reply Like
Old 05-02-2016, 07:38 PM
  #4
Loomer
Regular Contributor

Loomer's Avatar

Join Date: Aug 2015
Location: Devon
Posts: 255
Received 22 Likes on 21 Posts
Default
Originally Posted by EscortCosworthUSA
Hello,

Could somebody tell me what size the hex spacers/pillars/mounts or whatever they're called for the cambelt shield on a Cosworth 4wd.

The two cam top ones and front one. I know they're M6, but need the correct lengths.

Thanks!
Not very well worded in the advert but they are for sale on the msd webshop


http://shop.motorsport-developments.co.uk/yb-cambelt-bolts-1861-p.asp
Loomer is offline
Reply Like
Old 05-02-2016, 10:27 PM
  #5
EscortCosworthUSA
Wahay!! I've lost my Virginity!!
Thread Starter

EscortCosworthUSA's Avatar

Join Date: Apr 2004
Location: Akron, OH USA
Posts: 83
Received 0 Likes on 0 Posts
Default
Thanks Paul.

One last question - the center one (longest one) - what the flats measurement?

I just found the two top ones in a drawer after searching and searching, but missing the center... i think I can find something that'll work for it here in the States.

Thanks again!
Mike
EscortCosworthUSA is offline
Reply Like
Old 06-02-2016, 08:41 AM
  #6
costina
Live long and prosper!!
iTrader: (1)

costina's Avatar

Join Date: Aug 2005
Location: area 51
Posts: 9,158
Received 371 Likes on 346 Posts
Default
Originally Posted by EscortCosworthUSA
Thanks Paul.

One last question - the center one (longest one) - what the flats measurement?

I just found the two top ones in a drawer after searching and searching, but missing the center... i think I can find something that'll work for it here in the States.

Thanks again!
Mike

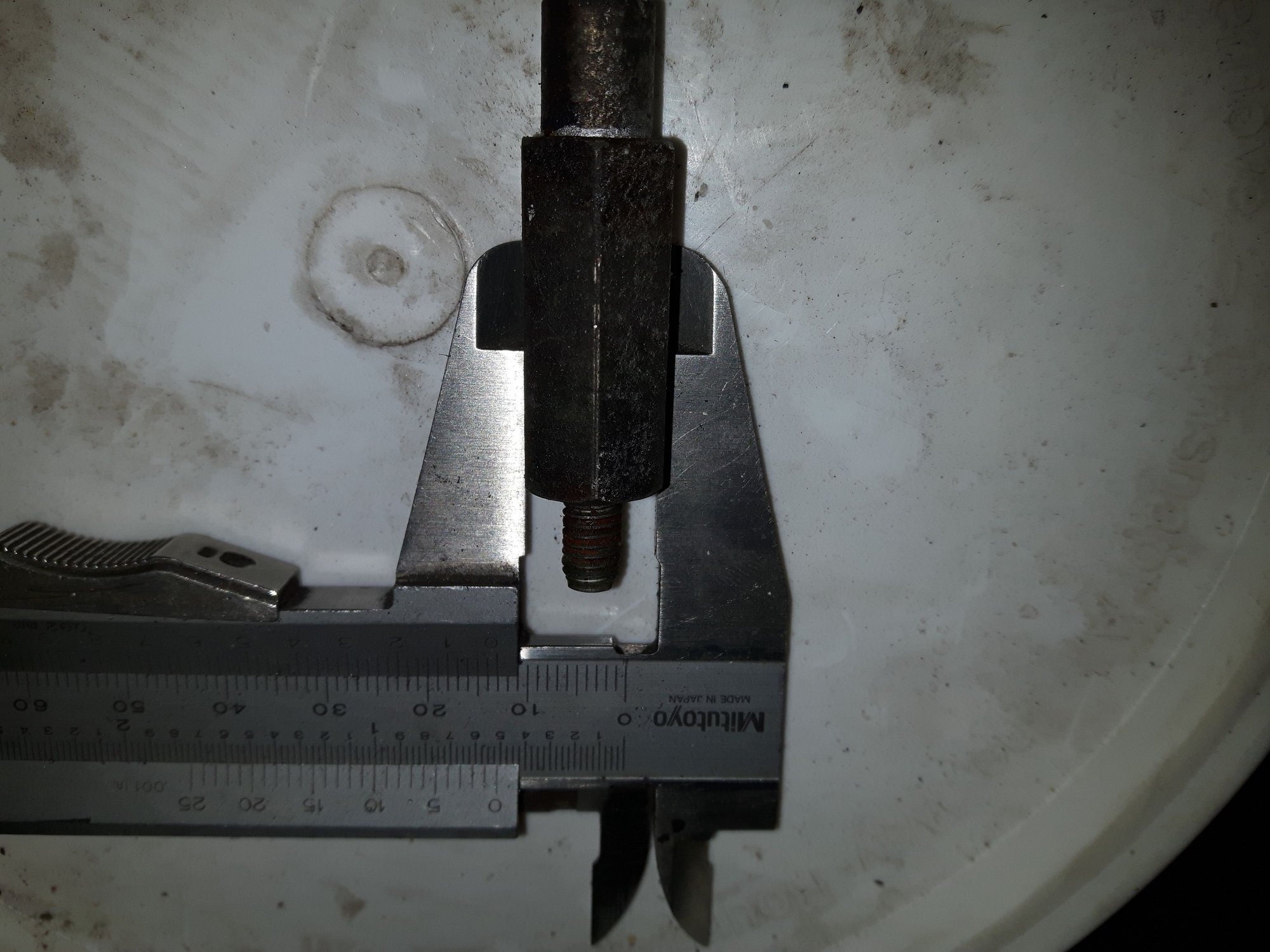

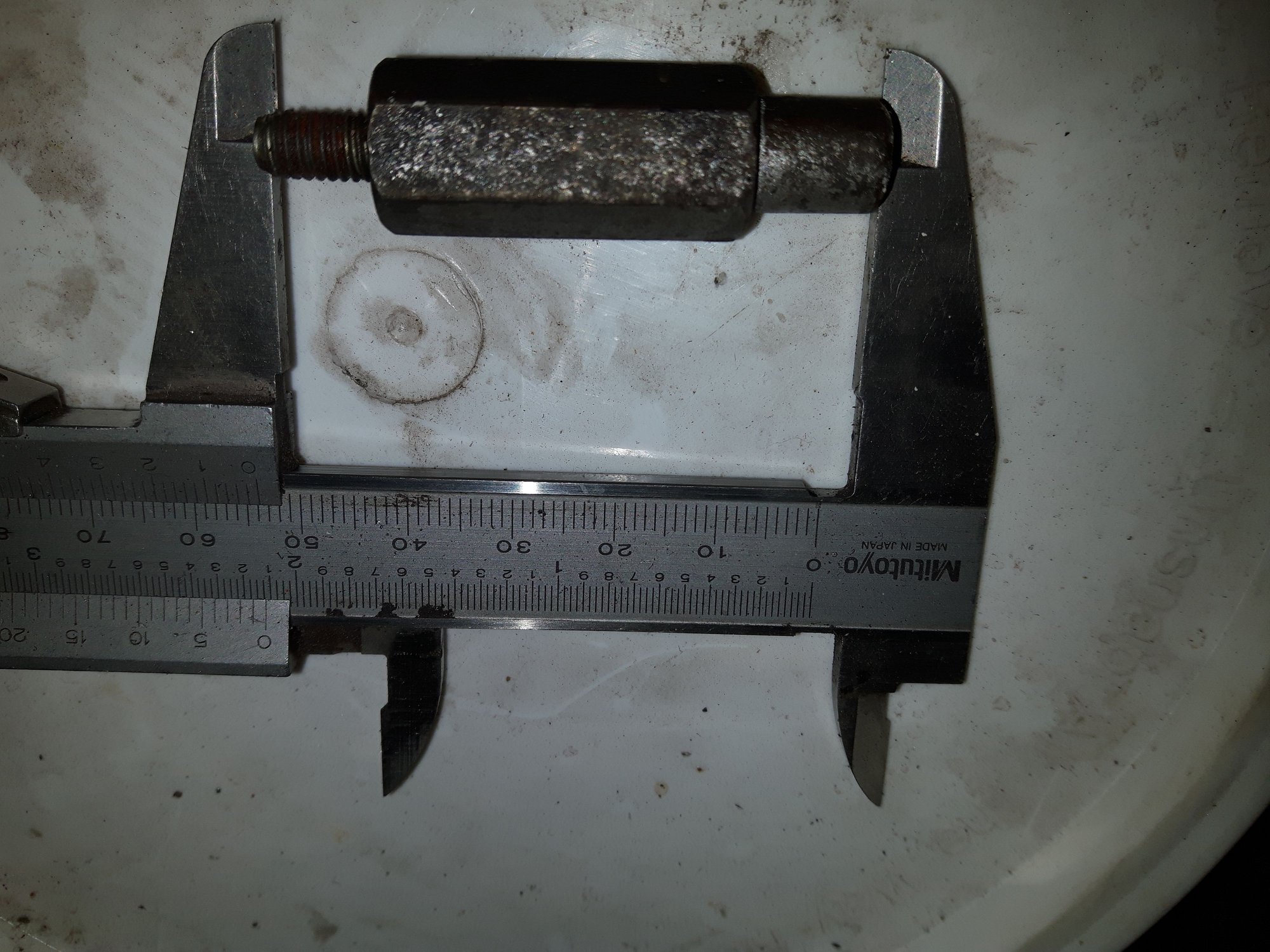

Will have a look Mike and post a pic with dimensions later.

Glad to help

Paul
costina is offline
Reply Like
Old 07-02-2016, 01:30 PM
  #7
costina
Live long and prosper!!
iTrader: (1)

costina's Avatar

Join Date: Aug 2005
Location: area 51
Posts: 9,158
Received 371 Likes on 346 Posts
Default
















Paul
Last edited by costina; 07-02-2016 at 01:32 PM.
costina is offline
Reply Like

Trending Topics

Old 07-02-2016, 01:34 PM
  #8
costina
Live long and prosper!!
iTrader: (1)

costina's Avatar

Join Date: Aug 2005
Location: area 51
Posts: 9,158
Received 371 Likes on 346 Posts
Default
costina is offline
Reply Like
Old 07-02-2016, 02:20 PM
  #9
EscortCosworthUSA
Wahay!! I've lost my Virginity!!
Thread Starter

EscortCosworthUSA's Avatar

Join Date: Apr 2004
Location: Akron, OH USA
Posts: 83
Received 0 Likes on 0 Posts
Default
Perfect! Thanks again!
EscortCosworthUSA is offline
Reply Like
