This is possibly a long shot.. But can anyone tell me what front driveshafts these are from?

I had them fitted to my cosworth converted 4x4 puma, the inner CV's went and so trying to be sensible replaced them with GGR extended shafts - unfortunately on the first drive my passenger side popped out coming off a roundabout with a bit of power down.. Wasn't impressed to say the least!

I'm now doubting whether the original shafts were actually original cosworth shafts from an escort or saph. Which is leading me to believe these might be XR4x4 shafts?



The TCA's on the car have bodged ball joints on the end.. Puma ball joints I think so wondering whether the track is now wider than normal cosworth.. The car is lowered on 18's for reference.

Thanks

Caddyshack

I have a set off my pug, the ones I have are either XR or cossie if you want to compare...I am on Surrey / hants border. My replacements are std cossie so we have another comparison there and the pug is up on Ramps so easy to compare.

PAUL S

iTrader: (8)

Those are not cosworth/sierra 4x4 apart from the hub end

Caddyshack

The one on the right looks to have been cut n shut

markk

iTrader: (2)

Both one offs.

McCloud 85

Thanks for the replies.

I know what you mean with the right shaft, as it thought that when I looked at it, it seems to be a 'factory' weld and doesn't look like a chopped shaft although I could be wrong. What's confusing me is the difference between the two, I know on front wheel drive cars it's common to have a hollow shaft one side and solid the other but these should be the same length so why is one hollow and the other solid?

All I know at the minute is that the GGR shafts are probably around 20mm too short.

By any chance does anyone know if a sierra/escort hub end CV would fit into a puma hub? Did ford carry across the same sizes for other ranges?

Thanks

McCloud 85

I think this may be the case..

GGR shaft next to the original



Around 20mm longer as I suspected might be required.. I'm kicking myself really as I should have checked before buying the new shafts. Lesson learnt!

Thanks for all the replies

Psycho Warren

iTrader: (5)

Strange, tony claimed it was all xr4x4 stuff up front except for lengthened TCA's with puma ball joints.

Will the cossie inner CV's go on the shafts?

McCloud 85

Hi Warren,

They could be xr4x4 shafts but I'm thinking they could have been extended in some way.. possibly.

I know the TCA's have been extended which should have made me realise that the shafts will probably be different to standard cosworth. I've also noticed this evening that the steering rack rods have also been extended. So really there were enough clues!!!

It's keeping me guessing anyway!

Psycho Warren

iTrader: (5)

I wonder why he went to the hassle?? Cant of been camber as the top mounts were moved so surely youd put them where you want.

Filling the arches better you just pick and choose the right wheel offset or use spacers.

Does seem they went for the hard route with some things on the car!

PAUL S

iTrader: (8)

They are not XR4x4 shafts either, which look the same as cosworth ones, just a bit longer.

original

Warren

I'm Dan's (....I'd like to say....) good friend and have looked at this car in extensive detail and spent many hours on whatsap discussing its faults

From your knowledge of the car, were the turret tops moved inwards or outwards, and....How do you know this bit of information? Do you know why standard Escort/Sierra standard lower arms were not fitted? the less we say about the current ones the better...

Paul

Psycho Warren

iTrader: (5)

They were pushed outwards. Simple comparison between standard puma and my car (dans got another puma in his garage to compare).

Why they didnt use standard? Your guess is as good as mine. I suspect it was to fill the arches better and consequently move strut tops to correct any camber issues.

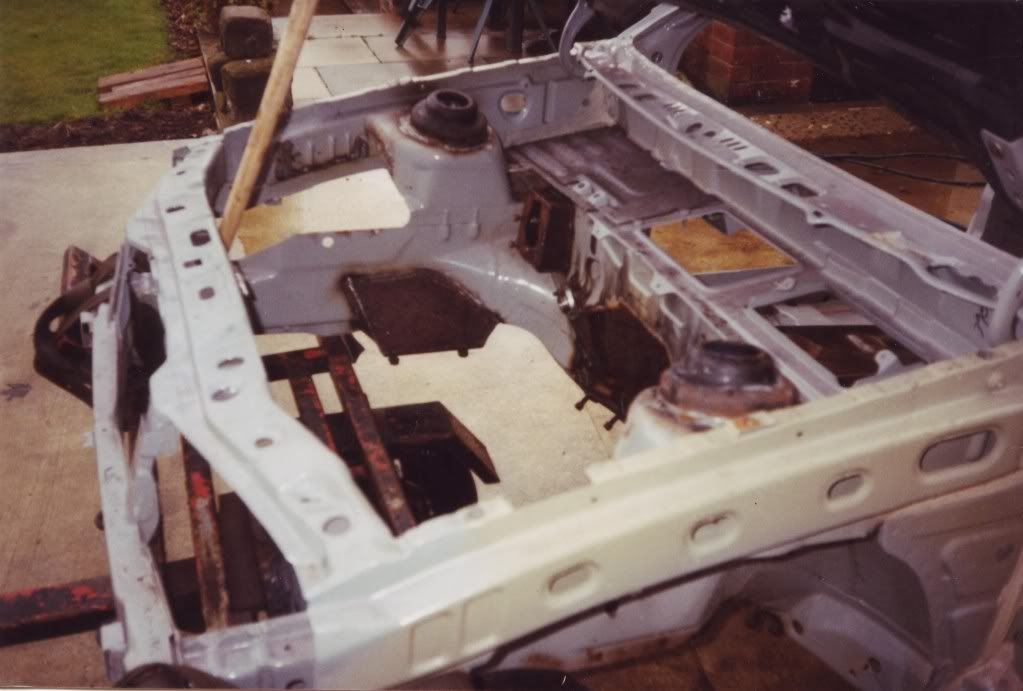

You can see it was done by pumaspeed if you look in this picture:


Note that was how it came from DJM, so it was since modified by pumaspeed as you can clearly see where DJM cut and welded on the new shell.

anglia105e hinson

Hi mate I've handled both xr4x4 shafts and cosworth shafts.

They are very strange they must have been modded in the past , no front sierra or escort driveshafts are like that .

McCloud 85

The more I look at the original shafts the more I can't piece together what's happened, the larger shaft of the two has a ford stamp under the inner cv boot (or outer) and looks like a factory shaft. But the near side I'm pretty sure is a fabricated shaft.

Are we thinking that Pumaspeed moved the front turrets over more after fitting the arches?

Psycho Warren

iTrader: (5)

Thats what it looks like from the above picture. Note the angled extra reinforcement on the car now they added instead of plating over the hole and cutting a new one.

original

what, hold up, sorry can we just clarify, does that picture show the original welding done by DJM or additional welding by puma/speed/buildwhoever?

McCloud 85

Ok I'm seeing what they have done then. When DJM built the car they built the front track for a standard puma or standard escort/seirra and also without the strut brace mounting plates either side (I'm assuming this is what you mean with the angled reinforcement Warren).

Then when the front arches were put on, for whatever reason the front strut tops were moved and angled further outwards and the plates added for the strut brace. The question I have is how accurately was this done? Judging by the TCA's probably not well!

I need to get out there and get some simple width measurements done. The back as far as I'm aware is completely standard to a escort/sierra which makes me wonder whether the front track is now wider than the back?!?!

Psycho Warren

iTrader: (5)

That picture is as from DJM. That is before he started to build it up.

Yep thats what i think. The strut brace is custom made. When theyve moved the strut tops, there would have been a gap to fill. Theyve obviously done an angled plate for a bit more stiffness rather than a flat filler plate which wouldve looked pikey.
